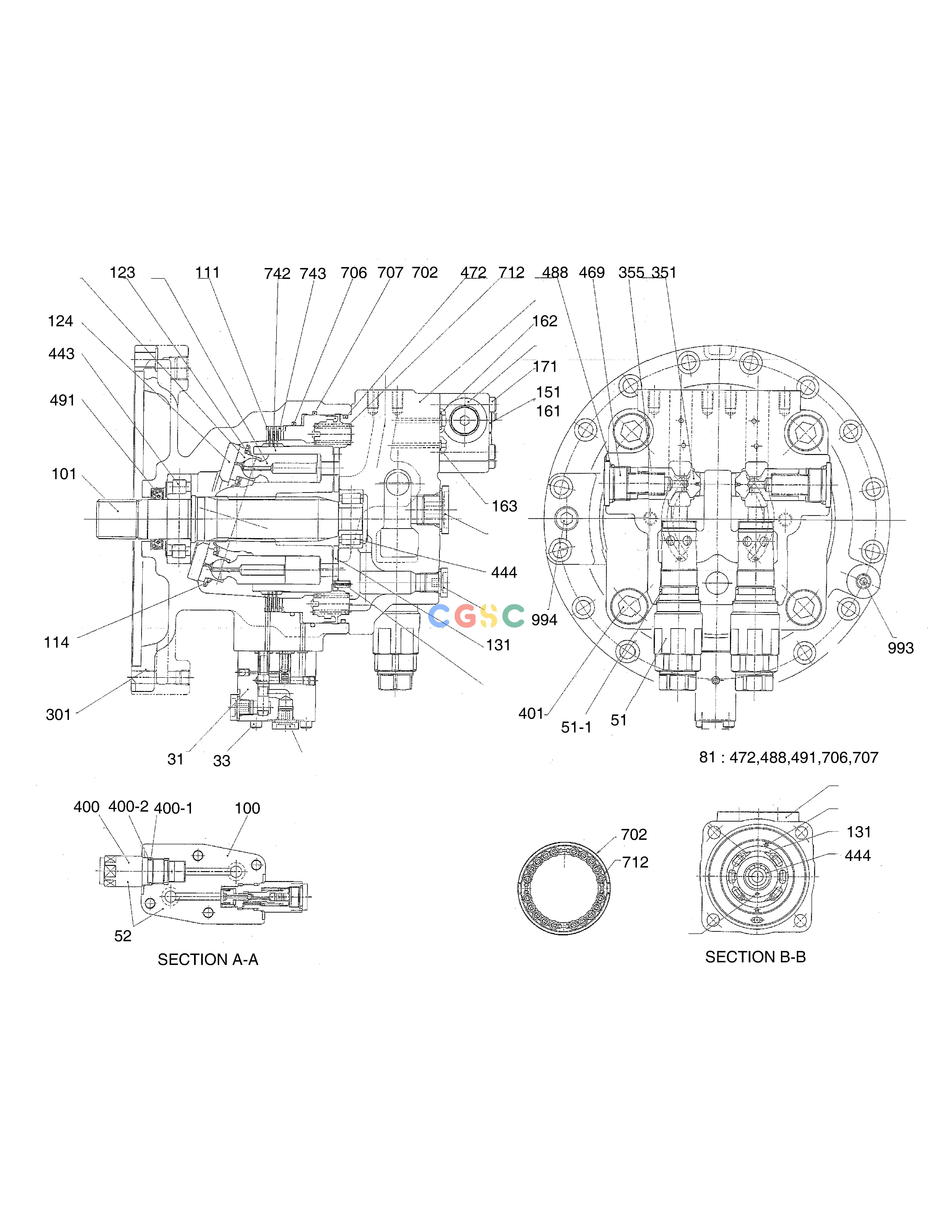

斗山零件查询SWING MOTOR - OPTION SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
457 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00482C
|
[1] |
|
|
| 10. |
K9000460
|
[1] |
PISTON ASS'Y(121.122)
|
|
| 100. |
2.423-00093
|
[1] |
CASING
|
|
| 101. |
K9000462
|
[1] |
SHAFT;DRIVE
|
|
| 111. |
K9000463
|
[1] |
CYLINDER
|
|
| 114. |
K9000464
|
[1] |
SPRING;PLATE
|
|
| 123. |
K9000465
|
[1] |
PLATE;SET
|
|
| 124. |
K9000466
|
[1] |
PLATE;SHOE
|
|
| 131. |
250201-00568
|
[1] |
|
|
| 151. |
2181-1890D2
|
[2] |
PLUG
|
|
| 161. |
S8000111
|
[2] |
O-RING
|
|
| 162. |
S8000125
|
[2] |
O-RING
|
|
| 163. |
S8000065
|
[2] |
. O-RING P6
|
|
| 171. |
S2209771
|
[4] |
SCREW
|
|
| 20. |
3723230-0421
|
[1] |
VALVE CASING ASS'Y
|
|
| 301. |
110931-00107
|
[1] |
|
|
| 31. |
3702490-0360P
|
[1] |
|
|
| 33. |
S2206061
|
[2] |
SCREW;HEX.
|
|
| 351. |
2.424-00021
|
[2] |
PLUNGER
|
|
| 355. |
2.131-00165
|
[2] |
SPRING
|
|
| 400. |
2.421-00324
|
[2] |
VALVE;SWING REACTIONLESS
|
|
| 400-1. |
S8000201
|
[2] |
O-RING
|
|
| 400-2. |
S8060201
|
[2] |
RING;BACK UP
|
|
| 401. |
S2227561
|
[4] |
BOLT;SOCKET
|
|
| 443. |
2.109-00214
|
[1] |
BEARING;ROLLER
|
|
| 444. |
PNJ2304EHT
|
[1] |
BEARING;ROLLER
|
|
| 469. |
2.181-00266
|
[2] |
PLUG
|
|
| 472. |
2.180-00477
|
[1] |
O-RING
|
|
| 488. |
S8000281
|
[2] |
O-RING
|
|
| 491. |
K9000469
|
[1] |
SEAL;OIL
|
|
| 51. |
K9000475
|
[2] |
VALVE;RELIEF
|
|
| 51-1. |
S8010301
|
[2] |
O-RING
|
|
| 52. |
2.421-00255
|
[1] |
VALVE;RELIEF
|
|
| 702. |
K9000470
|
[1] |
PISTON;BRAKE
|
|
| 706. |
2180-1217D150
|
[1] |
O-RING
|
|
| 707. |
2.180-00479
|
[1] |
O-RING
|
|
| 712. |
K9000471
|
[20] |
SPRING;BRAKE
|
|
| 742. |
K9000472
|
[3] |
PLATE;FRICTION
|
|
| 743. |
K9000473
|
[4] |
PLATE;SEPARATOR
|
|
| 81. |
K9000476
|
[1] |
SEAL KIT(472.488.491.706.707)
|
|
| 993. |
2181-1116D2
|
[1] |
PLUG
|
|
| 994. |
2181-1116D4
|
[1] |
PLUG
|
|
