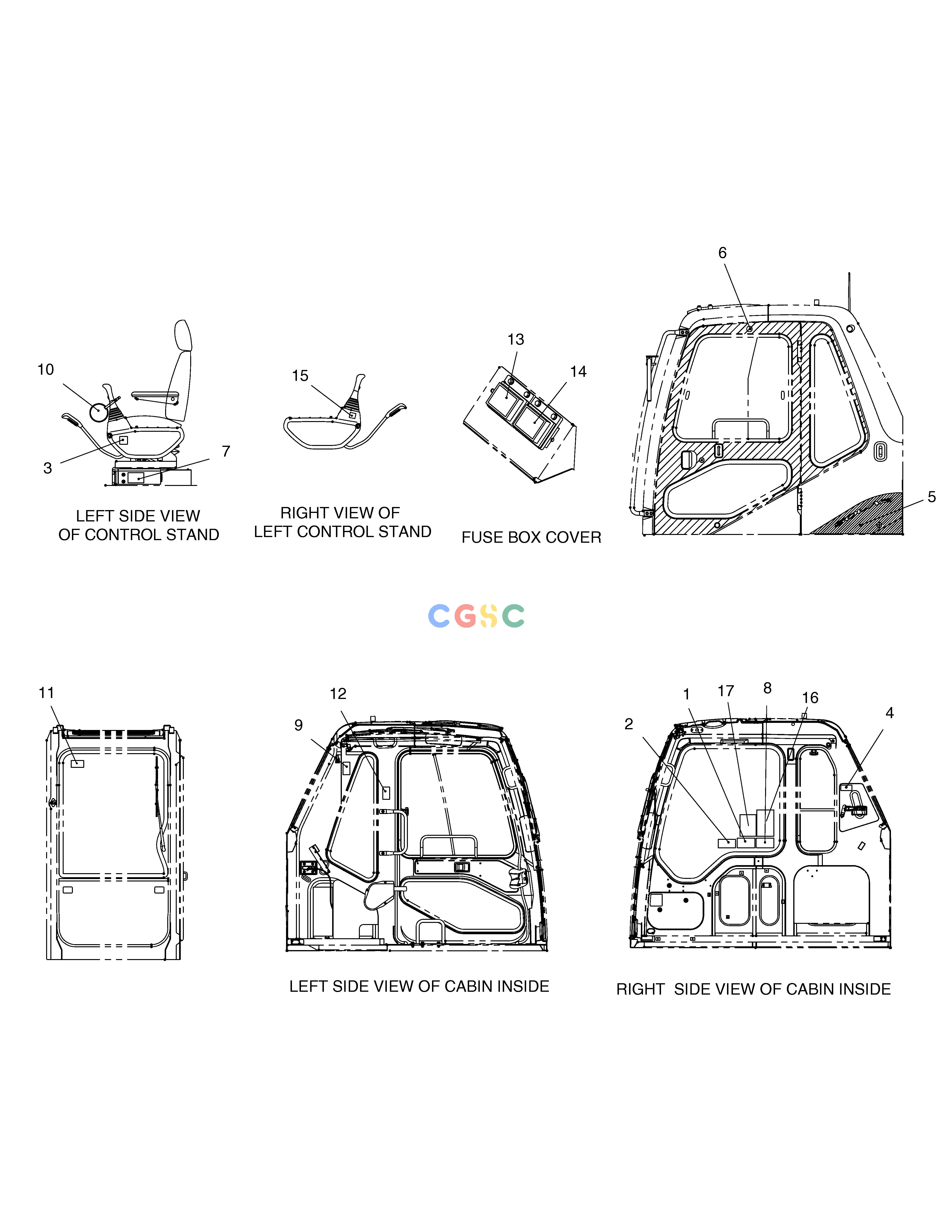

斗山零件查询CABIN NAME PLATE-ENGLISH SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-01029A
|
[-] |
CABIN NAME PLATE ASS'Y
|
|
| 1. |
190-00688
|
[1] |
PLATE;NAME
|
|
| 10. |
190-00695
|
[1] |
PLATE;NAME
|
|
| 11. |
2190-3384
|
[1] |
PLATE;NAME
|
|
| 12. |
190-00693
|
[1] |
PLATE;NAME
|
|
| 13. |
2190-3244D11
|
[1] |
PLATE;NAME
|
|
| 14. |
2190-3244D12
|
[1] |
PLATE;NAME
|
|
| 15. |
2190-3383
|
[1] |
PLATE;NAME
|
|
| 16. |
K1016614
|
[1] |
PLATE;NAME
|
|
| 17. |
K1018396
|
[1] |
PLATE;NAME
|
|
| 2. |
2190-3297
|
[1] |
PLATE;NAME
|
|
| 3. |
2190-3309
|
[1] |
PLATE;NAME(LEVER LOCK)
|
|
| 4. |
2190-2480
|
[1] |
PLATE;NAME
|
|
| 5. |
190-00851
|
[1] |
PLATE;NAME
|
|
| 6. |
2116-9003
|
[1] |
PLATE
|
|
| 7. |
2190-3386A
|
[1] |
PLATE;NAME
|
|
| 8. |
190-00689
|
[1] |
PLATE;NAME
|
|
| 9. |
190-00690
|
[1] |
PLATE;NAME
|
|
