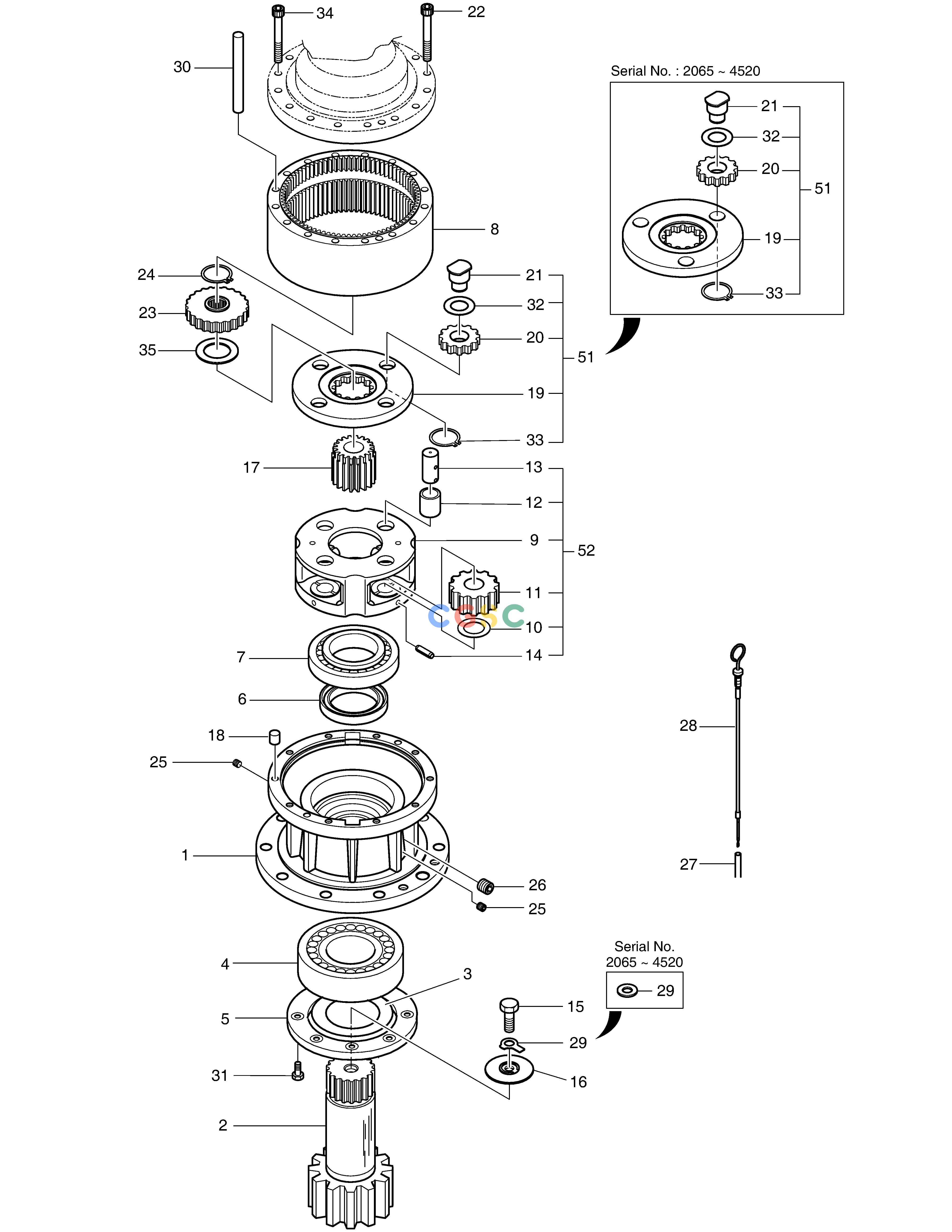

斗山零件查询SWING REDUCTION GEAR - OPTION SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027957A
|
[1] |
|
130426-00003
|
| -. |
130426-00003
|
[1] |
|
|
| 1. |
2423-1496G
|
[1] |
CASING
|
|
| 10. |
2114-1901A
|
[4] |
WASHER;THRUST NO.2
|
|
| 11. |
104-00050
|
[4] |
GEAR;PLANET NO.2
|
|
| 12. |
110-00219
|
[4] |
BUSH NO.2
|
|
| 13. |
123-00437A
|
[4] |
PIN NO.2
|
|
| 14. |
S5741341
|
[4] |
PIN;SPRING
|
|
| 15. |
S0121061
|
[1] |
BOLT
|
|
| 16. |
114-00548
|
[1] |
WASHER;THRUST NO.3
|
|
| 17. |
104-00048
|
[1] |
GEAR;SUN NO.2
|
|
| 18. |
2705-1030
|
[4] |
PIN;KNOCK
|
|
| 19. |
230-00060A
|
[1] |
CARRIER NO.1
|
|
| 19. |
100502-00001
|
[1] |
|
|
| 2. |
2112-1248E
|
[1] |
SHAFT;DRIVE
|
|
| 20. |
104-00049A
|
[3] |
GEAR;PLANET NO.1
|
|
| 20. |
130424-00001
|
[4] |
|
|
| 21. |
123-00435A
|
[3] |
PIN ASS'Y NO.1
|
|
| 21. |
120501-00009
|
[4] |
|
|
| 22. |
S2217471
|
[14] |
BOLT;SOCKET
|
|
| 22. |
120107-00002
|
[14] |
|
|
| 23. |
K1027958
|
[1] |
|
|
| 23. |
130425-00002
|
[1] |
|
|
| 24. |
S6500350
|
[1] |
RING;SNAP
|
|
| 25. |
2181-1116D2
|
[2] |
PLUG
|
|
| 26. |
2181-1116D4
|
[1] |
PLUG
|
|
| 27. |
2140-1406
|
[1] |
PIPE;LEVEL GAUGE
|
|
| 28. |
2119-1065
|
[1] |
GAUGE;LEVEL
|
|
| 29. |
S5231090
|
[1] |
WASHER;DOUBLE TAP
|
|
| 29. |
120811-00001
|
[1] |
|
|
| 3. |
2412-1040
|
[1] |
PLATE
|
|
| 30. |
140-01374A
|
[4] |
PIPE
|
|
| 31. |
120-00144
|
[8] |
BOLT
|
|
| 32. |
114-00527
|
[3] |
WASHER;THRUST NO.1
|
|
| 32. |
114-00527
|
[4] |
WASHER;THRUST NO.1
|
|
| 33. |
S6500380
|
[3] |
RING;SNAP
|
|
| 33. |
S6500380
|
[4] |
RING;SNAP
|
|
| 34. |
K1029294
|
[2] |
|
|
| 35. |
120816-00001
|
[1] |
|
|
| 4. |
2109-9033
|
[1] |
BEARING;ROLLER
|
|
| 5. |
2891-1421B
|
[1] |
PLATE;COVER
|
|
| 51. |
K9006810
|
[1] |
CARRIER NO1 ASS'Y
|
|
| 51. |
100502-00022
|
[1] |
|
|
| 52. |
K9006811
|
[1] |
CARRIER NO2 ASS'Y
|
|
| 6. |
2180-1254
|
[1] |
SEAL;OIL
|
|
| 7. |
109-00174
|
[1] |
BEARING;ROLLER
|
|
| 8. |
104-00051A
|
[1] |
GEAR;RING
|
|
| 8. |
130422-00001
|
[1] |
|
|
| 9. |
230-00061
|
[1] |
CARRIER NO.2
|
|
