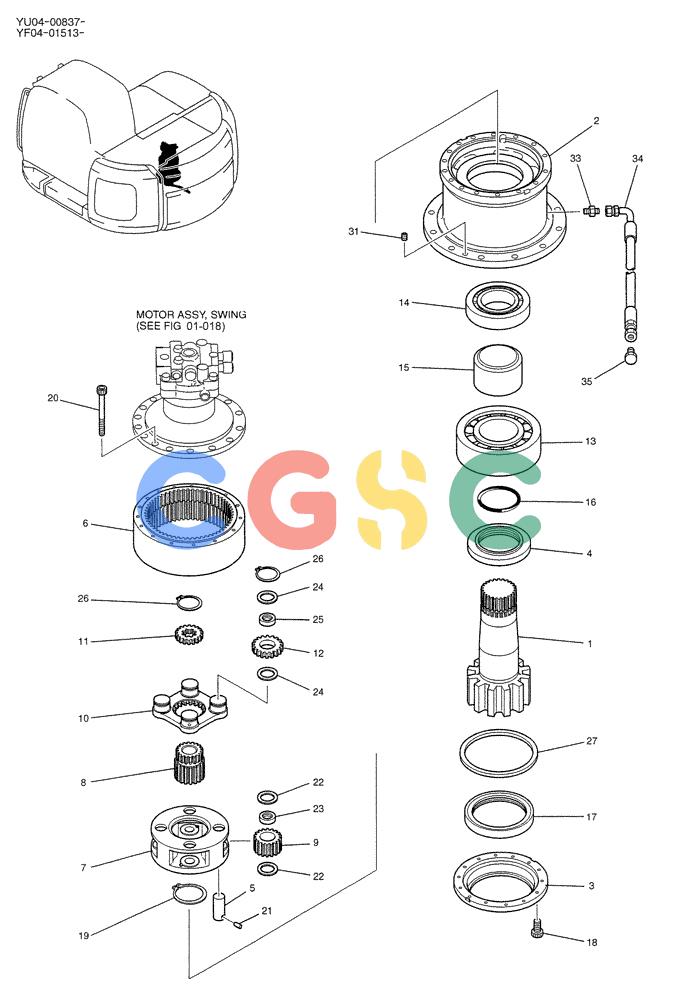

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-019) - REDUCTION ASSY, SWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
991 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ32W01002P1 | [1] | DRIVEN SPROCKET | KOBSHAFT, PINION |
| 2. | LQ32W01022P1 | [1] | BEARING ASSY | KOBHOUSING |
| 3. | LQ32W01003P1 | [1] | RETAINER | KOB |
| 4. | LQ32W01014P1 | [1] | BUSHING | KOBSLEEVE |
| 5. | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 6. | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 7. | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 8. | LQ32W01010P1 | [1] | GEAR | KOBSUN |
| 9. | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOBPINION |
| 10. | LQ32W01007F1 | [1] | SPIDER | KOBASSY |
| 11. | LQ32W01027P1 | [1] | PLANETARY CARRIER SHAFT | KOB |
| 12. | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOBPINION |
| 13. | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOBSPHERICAL |
| 14. | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOBSPHERICAL |
| 15. | LQ32W01012P1 | [1] | SPACER | KOB |
| 16. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| 17. | LQ32W01021P1 | [1] | SEAL | KOBOIL SEAL |
| 18. | ZS23C10030 | [14] | SCREW,Hex Socket Head, M10 x 30mm | KOBCAP Superseded by part number: ZS28C10030 |
| 19. | ZR16X10000 | [1] | RING | KOBRETAINING |
| 20. | ZS23C14150 | [16] | SCREW,Hex Socket Head, M14 x 150mm | KOBCAP |
| 21. | ZP26D08032 | [4] | PIN | KOBSPRING |
| 22. | LQ32W01018P1 | [8] | WASHER | KOBTHRUST |
| 23. | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOBNEEDLE |
| 24. | LQ32W01013P1 | [8] | WASHER | KOBTHRUST |
| 25. | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOBNEEDLE |
| 26. | ZR16X04000 | [4] | RING | KOBRETAINING |
| 27. | 2418T17494 | [1] | SPACER | KOB |
| 31. | ZS83C20030 | [2] | SCREW | KOBSET |
| 34. | ZX32M08060 | [1] | FLEXIBLE HOSE | KOB |
| 35. | 2444Z2728D3 | [1] | PLUG | KOB |
