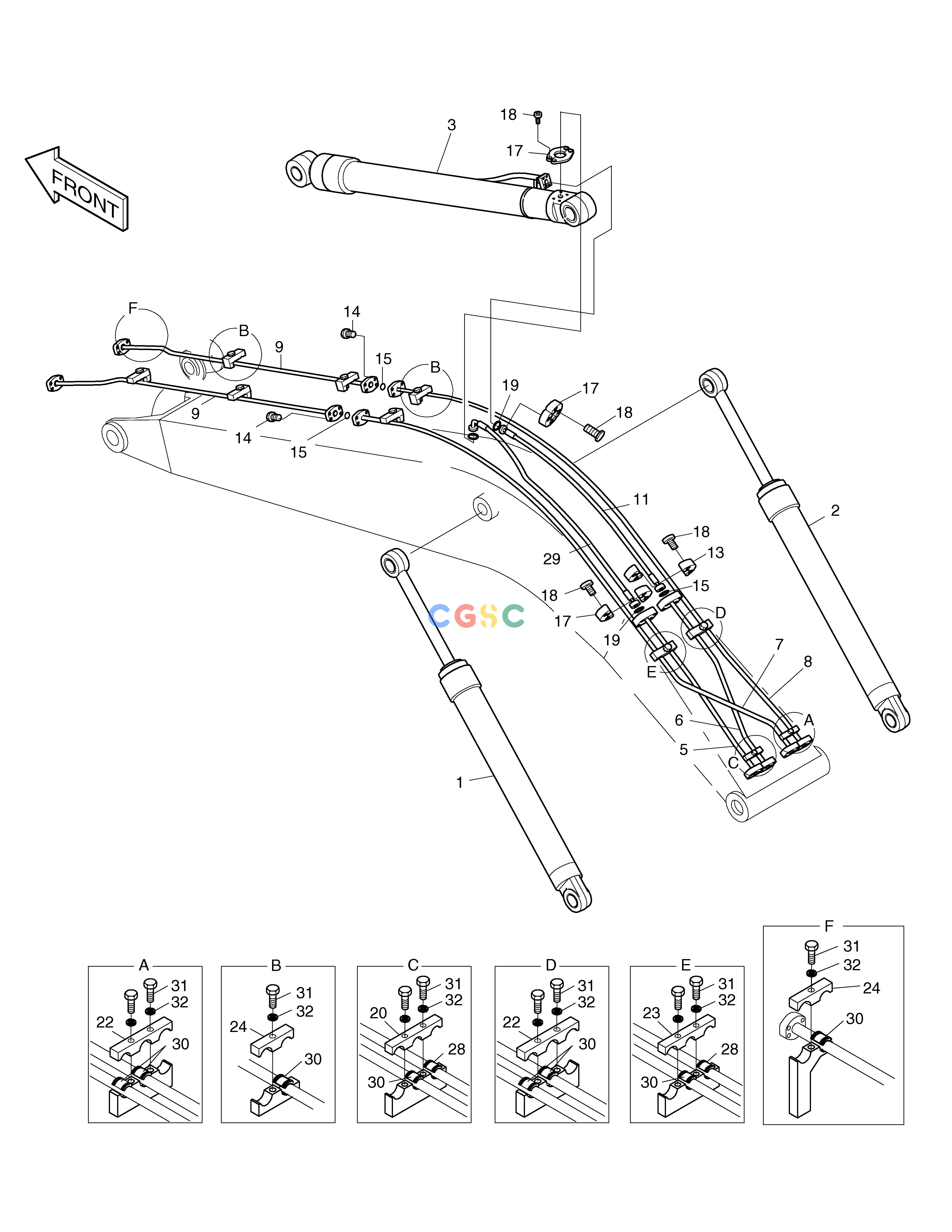

斗山零件查询BOOM PIPING-5.2m SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
589 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01062
|
[-] |
FRONT PIPING
|
|
| 1. |
440-00355A
|
[1] |
CYLINDER;BOOM(L.H)
|
|
| 11. |
2184-1081D129
|
[1] |
HOSE PF3/4-1080L
|
|
| 13. |
2181-9079
|
[2] |
FLANGE
|
|
| 14. |
S2212466
|
[8] |
BOLT
|
|
| 15. |
2180-1026D2
|
[3] |
O-RING
|
|
| 17. |
2181-9078
|
[6] |
FLANGE;SPLIT
|
|
| 18. |
S2212366
|
[16] |
BOLT
|
|
| 19. |
2180-1026D19
|
[3] |
O-RING
|
|
| 2. |
440-00356A
|
[1] |
CYLINDER;BOOM(R.H)
|
|
| 20. |
124-00175
|
[1] |
CLAMP;PIPE
|
|
| 22. |
124-00012
|
[3] |
CLAMP;PIPE
|
|
| 23. |
124-00173
|
[2] |
CLAMP;PIPE
|
|
| 24. |
124-00011
|
[6] |
CLAMP;PIPE
|
|
| 28. |
2161-2251A
|
[6] |
RUBBER
|
|
| 29. |
2184-1100D76
|
[1] |
HOSE
|
|
| 3. |
2440-9236B
|
[1] |
CYLINDER;ARM
|
|
| 30. |
2161-2250A
|
[30] |
RUBBER
|
|
| 31. |
S0565466
|
[18] |
BOLT
|
|
| 32. |
S5102903
|
[18] |
WASHER
|
|
| 5. |
140-00702
|
[1] |
PIPE
|
|
| 6. |
140-00703
|
[1] |
PIPE
|
|
| 7. |
140-00704
|
[1] |
PIPE
|
|
| 8. |
140-00705
|
[1] |
PIPE
|
|
| 9. |
2140-1599
|
[2] |
PIPE
|
|
| 9. |
2140-1599A
|
[2] |
PIPE
|
|
