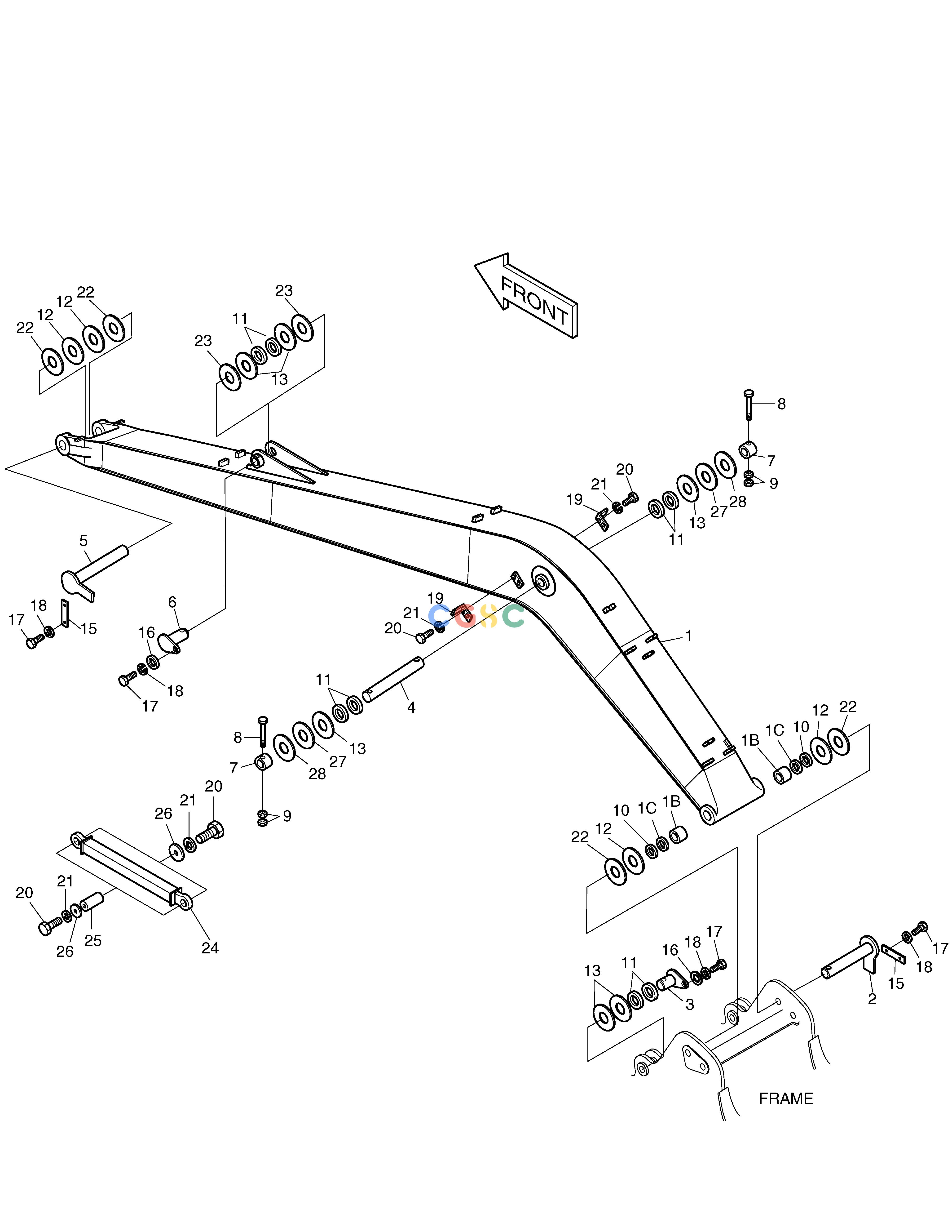

斗山零件查询BOOM-8.5m SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2701-1613C
|
[-] |
BOOM ASS'Y-8.5m
|
|
| 1. |
2701-1614H
|
[1] |
BOOM;MACH.-8.5m
|
|
| 1. |
2701-1614J
|
[1] |
BOOM;MACH.-8.5m
|
|
| 10. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 11. |
2180-1106BD24
|
[10] |
SEAL;DUST
|
|
| 12. |
2114-1059D113
|
[4] |
SHIM
|
|
| 13. |
2114-1059D63
|
[8] |
SHIM
|
|
| 15. |
2116-1514A
|
[2] |
PLATE;STOPPER
|
|
| 16. |
2116-1060D6
|
[3] |
STOPPER
|
|
| 17. |
S0521366
|
[7] |
BOLT
|
|
| 18. |
S5102903
|
[7] |
WASHER
|
|
| 19. |
2195-2394B
|
[2] |
BRACKET
|
|
| 1B. |
2110-1315A
|
[2] |
. BUSHING
|
|
| 1C. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 2. |
2123-2180E
|
[1] |
PIN
|
2123-2180G
|
| 2. |
2123-2180G
|
[1] |
PIN
|
|
| 20. |
S0515053
|
[1] |
BOLT M12X1.75X25
|
|
| 21. |
S5102703
|
[1] |
WASHER
|
|
| 22. |
2114-1059D114
|
[4] |
SHIM
|
|
| 23. |
2114-1059D118
|
[2] |
SHIM
|
|
| 24. |
2312-1004A
|
[1] |
ROD;TIE
|
|
| 24. |
2312-1004B
|
[1] |
ROD;TIE
|
|
| 25. |
2123-1915A
|
[2] |
PIN
|
|
| 26. |
2116-1472A
|
[4] |
PLATE;STOPPER
|
|
| 27. |
2114-1059D255
|
[2] |
SHIM
|
|
| 28. |
2114-1059D256
|
[2] |
SHIM
|
|
| 3. |
123-00409
|
[2] |
PIN
|
123-00409A
|
| 3. |
123-00409A
|
[2] |
PIN
|
|
| 4. |
2123-2184C
|
[1] |
PIN
|
|
| 5. |
2123-2185E
|
[1] |
PIN
|
2123-2185G
|
| 5. |
2123-2185G
|
[1] |
PIN
|
|
| 6. |
2123-2187C
|
[1] |
PIN
|
2123-2187E
|
| 6. |
2123-2187E
|
[1] |
PIN
|
|
| 7. |
2116-1531A
|
[2] |
STOPPER
|
|
| 8. |
S0567066
|
[2] |
BOLT
|
|
| 9. |
S4012933
|
[4] |
NUT
|
|
