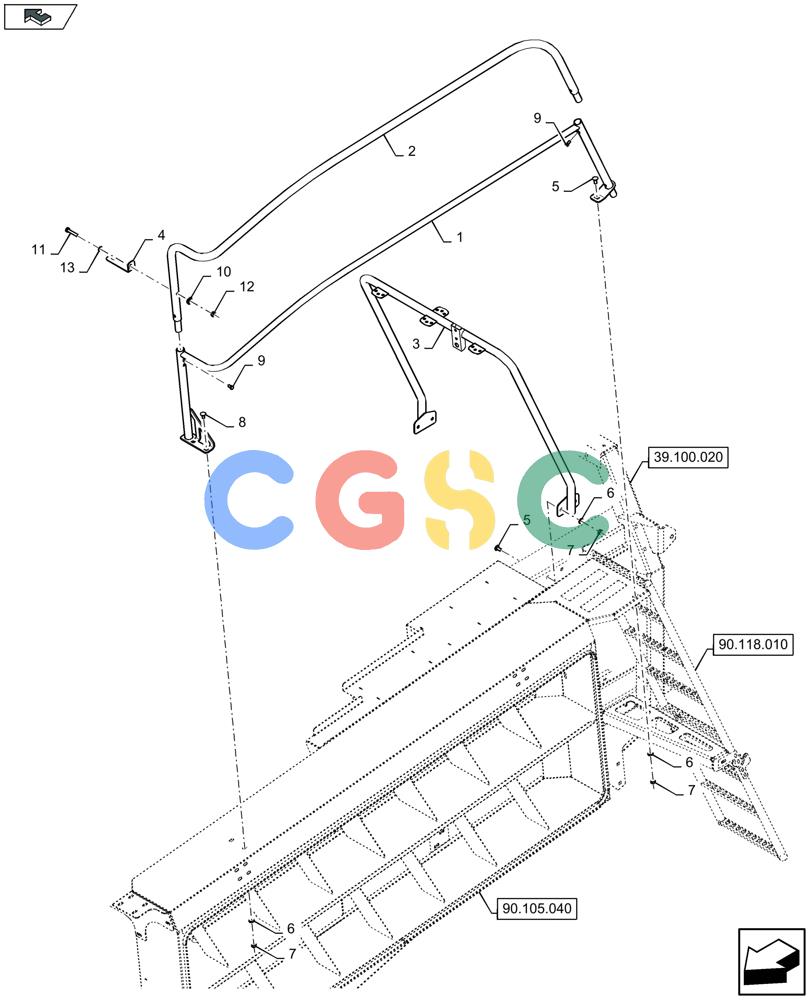

凯斯零件查询(LB324S) - BALER (9/12-) (90.118.020) - HANDRAIL, LH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84545737
|
[1] |
HANDRAIL
|
ZED
|
| 2. |
84539601
|
[1] |
HANDRAIL
|
ZED
|
| 3. |
84545863
|
[1] |
HANDRAIL
|
ZED
|
| 3. |
84545861
|
[1] |
HANDRAIL
|
ZED
|
| 3. |
84545859
|
[1] |
HANDRAIL
|
ZED
|
| 3. |
84545857
|
[1] |
HANDRAIL
|
ZED
|
| 4. |
84539597
|
[1] |
SUPPORT
|
ZED
|
| 5. |
86633356
|
[5] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 6. |
140045
|
[7] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 7. |
100016
|
[7] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
120041
|
[2] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 9. |
120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 10. |
379401
|
[1] |
WASHER,11mm ID x 30mm OD
|
ZED
|
| 11. |
412151
|
[1] |
BOLT,M10 x 1.5 x 61.58mm, Cl 8.8
|
NH
Superseded by part number: 73161469
|
| 12. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 13. |
86624176
|
[1] |
WASHER,11mm ID x 20mm OD x 2mm Thk
|
FOR
Superseded by part number: 14496621
|
