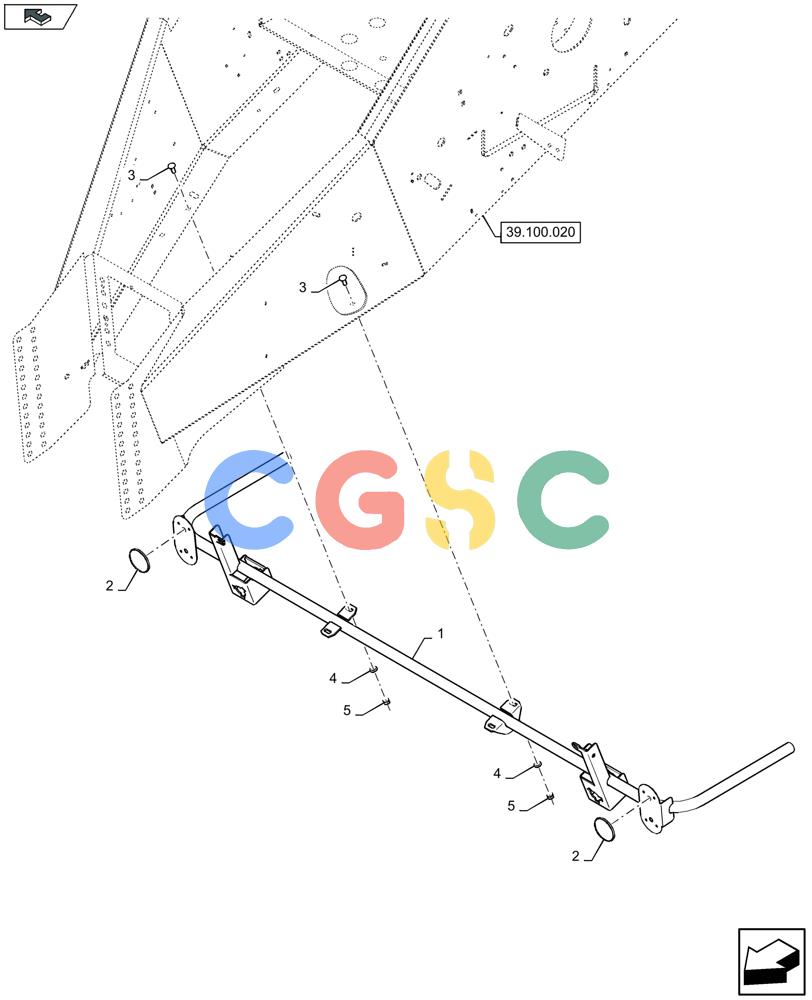

凯斯零件查询(LB324S) - BALER (9/12-) (90.118.040) - LIGHTS ARMS, RAIL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84484163
|
[1] |
SIDE RAIL
|
ZED
, Serial Range: -C137
|
| 1. |
47774918
|
[1] |
SIDE RAIL
|
ZED
, Serial Range: -F138144
|
| 1. |
47908432
|
[1] |
CROSSRAIL
|
ZED
, Start Serial: D145
|
| 1. |
84484164
|
[1] |
SIDE RAIL
|
ZED
, Serial Range: -C137
|
| 1. |
47775299
|
[1] |
SIDE RAIL
|
ZED
, Serial Range: -F138144
|
| 1. |
47908490
|
[1] |
CROSSRAIL
|
ZED
, Start Serial: D145
|
| 2. |
799266
|
[2] |
LAMP REFLECTOR
|
NH
, Serial Range: -C144
|
| 3. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 4. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 5. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
