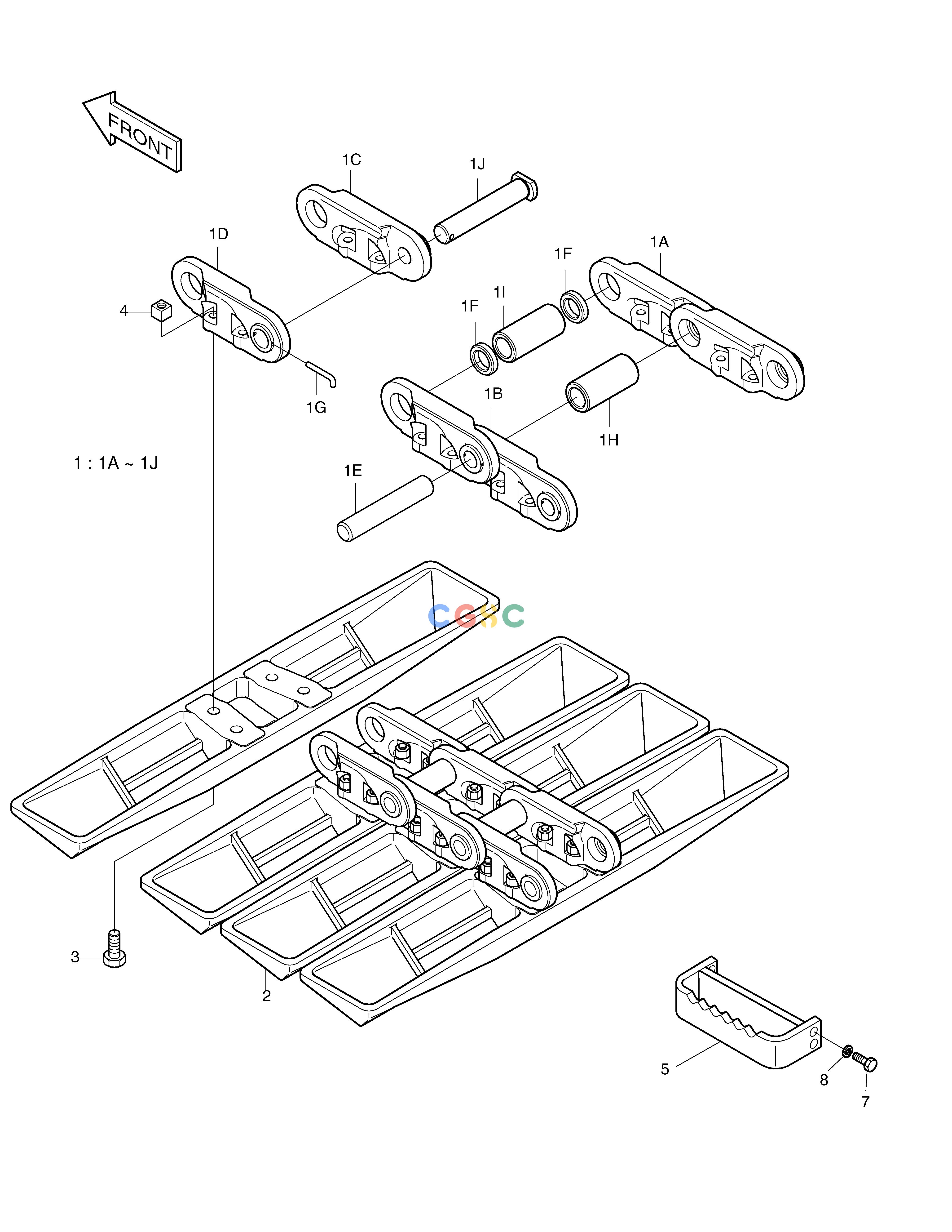

斗山零件查询TRACK SHOE ASS'Y-910T SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
205 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2273-7051
|
[1] |
TRACK SHOE ASS'Y
|
|
| 1. |
2272-6137
|
[1] |
TRACK LINK ASS'Y
|
|
| 1A. |
2272-6104R
|
[48] |
LINK;TRACK(RH)
|
|
| 1B. |
2272-6104L
|
[48] |
LINK;TRACK(LH)
|
|
| 1C. |
2272-6105R
|
[1] |
LINK;MASTER(RH)
|
|
| 1D. |
2272-6105L
|
[1] |
LINK;MASTER(LH)
|
|
| 1E. |
2123-6060
|
[48] |
PIN
|
|
| 1F. |
2114-6035
|
[2] |
SPACER
|
|
| 1G. |
2123-6062
|
[1] |
PIN;SMALL
|
|
| 1H. |
2110-6051
|
[48] |
BUSHING
|
|
| 1I. |
2110-6052
|
[1] |
BUSHING;MASTER
|
|
| 1J. |
2123-6061
|
[1] |
PIN;MASTER
|
|
| 2. |
2273-1050
|
[49] |
SHOE 910T
|
|
| 3. |
2120-2182
|
[196] |
BOLT
|
|
| 4. |
2121-1203
|
[196] |
NUT
|
|
| 5. |
2625-1220D10
|
[4] |
BRACKET
|
|
| 7. |
S0558253
|
[16] |
BOLT M10X1.5X35
|
|
| 8. |
S5102603
|
[16] |
. WASHER
|
|
