斗山零件查询OVER HAUL GASKET KIT-ALL SOLAR 250LC-V Doosan parts catalog online

广数供应链运营团队, 15 02月, 2025，浏览： 865 次

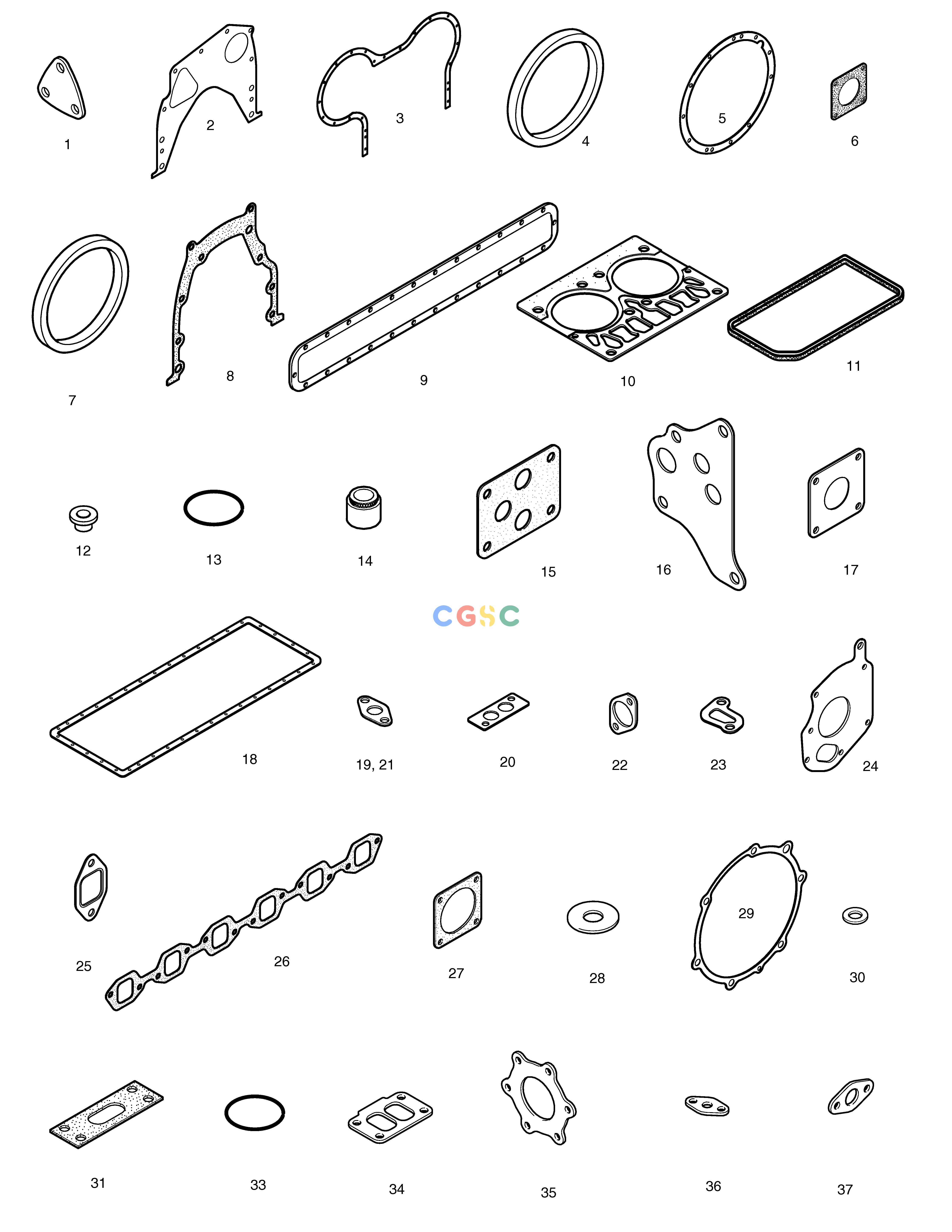

Pos.	Part No	Qty	Parts name
-.	65.99601-8032	[1]	OVER HAUL GASKET KIT-ALL
1.	65.96601A0042	[1]	GASKET;END COVER
10.	65.03901-0058	[3]	GASKET;CYLINDER HEAD
11.	65.03905-0022	[3]	GASKET;CYLINDER HEAD COVER
12.	65.03905-0023A	[6]	GASKET;CYLINDER HEAD COVER MOUNTIN
13.	65.96501-0032B	[1]	O-RING;BREATHER
14.	65.04902-0013	[12]	SEAL;VALVE STEAM
15.	65.05901A0052	[1]	GASKET;OIL FILTER
16.	65.05902A0011	[1]	GASKET;OIL COOLER COVER HOUSING
17.	65.96601-0347	[1]	GASKET;OIL COOLER ASS`Y
18.	65.05904A0016	[1]	GASKET;OIL PAN
19.	65.96601-0050	[2]	GASKET;OIL PIPE
2.	65.01903C0021	[1]	GASKET;TIMING GEAR CASE
20.	65.05903B0003	[1]	GASKET;CONNECTING FLANGE
21.	65.96601-0050	[2]	GASKET;OIL PIPE
22.	65.96601B0019	[1]	GASKET;OIL SUCTION PIPE
23.	65.06903A0011	[3]	GASKET;COOLING WATER PIPE
24.	65.06901A0020	[1]	GASKET;WATER PUMP
25.	65.08901A0013	[6]	GASKET;EXHAUST MANIFOLD
26.	65.08902A0024	[1]	GASKET;INTAKE MANIFOLD
27.	65.09904-0008	[2]	GASKET;AIR HEATER
28.	65.96501-0057	[6]	RING;SEAL
29.	65.11902-0018A	[1]	GASKET;MOUNTING FLANGE
3.	65.01903B0113	[1]	GASKET;T.G.C COVER
30.	06.56180-0712	[12]	RING;SEAL
31.	65.54903A0013	[1]	GASKET
33.	65.96501-0058	[2]	O-RING
34.	65.09901-0018A	[1]	GASKET
35.	65.09901-0012	[1]	GASKET
36.	65.96601-0046A	[1]	GASKET;OIL PIPE ADAPTER
37.	65.96601-0045A	[1]	GASKET
4.	65.01510-0157	[1]	SEAL;OIL(FRONT)
5.	65.01903B0029	[1]	GASKET;COVER
6.	65.27901-0005B	[1]	GASKET
7.	65.01510-0037	[1]	SEAL;OIL REAR
8.	65.01903A0178	[1]	GASKET;FLYWHEEL HOUSING
9.	65.01907A0002	[1]	GASKET;WATER CHAMBER COVER
