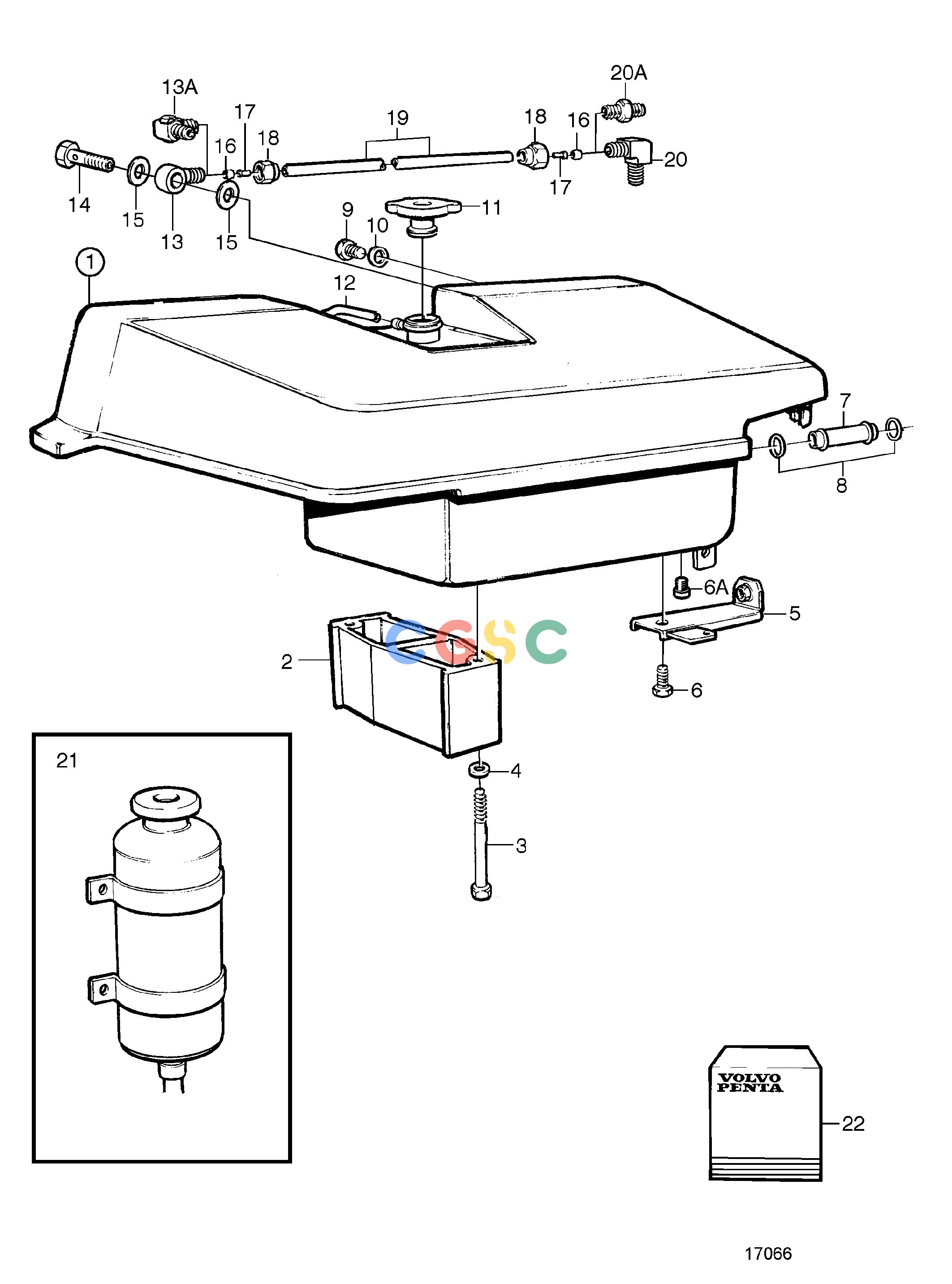

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemExpansion Tank: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864289
|
[1] |
Expansion tank
|
Replaced by 1pc expansion tank 3825381, 1pc conversion kit 876679 for electric box and 1pc plug 4799
|
| 1. |
3825381
|
[1] |
Expansion tank
|
Black SNXXXXXXXXXX/78543-
|
| 2. |
848516
|
[2] |
Spacer plate
|
|
| 3. |
965217
|
[4] |
Flange screw
|
|
| 4. |
941907
|
[4] |
Spring washer
|
|
| 5. |
864414
|
[1] |
Bracket
|
For electric box 864500., Early type
|
| 6. |
967949
|
[2] |
Flange screw
|
For electric box 864500., Early type
|
| 6A. |
479956
|
[1] |
Plug
|
Later prod
|
| 7. |
848519
|
[1] |
Pipe
|
|
| 8. |
471626
|
[2] |
Rubber moulding
|
|
| 9. |
966142
|
[1] |
Plug
|
Install in the lower hole., Early type
|
| 9. |
861551
|
[1] |
Plug
|
Install in the upper hole., Later prod (192134)
|
| 10. |
957175
|
[1] |
Gasket
|
For 966142
|
| 11. |
845879
|
[1] |
Pressure cap
|
|
| 12. |
192618
|
[1] |
Hose
|
L=800mm
|
| 13. |
945417
|
[1] |
Banjo nipple
|
Later prod
|
| 13A. |
479958
|
[1] |
Elbow nipple
|
Earlier prod (329638)
|
| 14. |
11994
|
[2] |
Gasket
|
|
| 15. |
969299
|
[1] |
Hollow screw
|
Install in the lower hole., Later prod
|
| 16. |
954364
|
[2] |
Sleeve
|
|
| 17. |
944717
|
[2] |
Support sleeve
|
|
| 18. |
954356
|
[2] |
Fitting nut
|
|
| 19. |
945460
|
[1] |
Tube
|
Expansion tank-thermostat housing., L=125mm
|
| 20. |
954385
|
[1] |
Elbow nipple
|
Install in the upper hole., Later prod
|
| 20A. |
954378
|
[1] |
Nipple
|
Early type
|
| 21. |
|
|
|
See group 90
|
| 22. |
876679
|
[1] |
Conversion kit
|
See group 30
|
