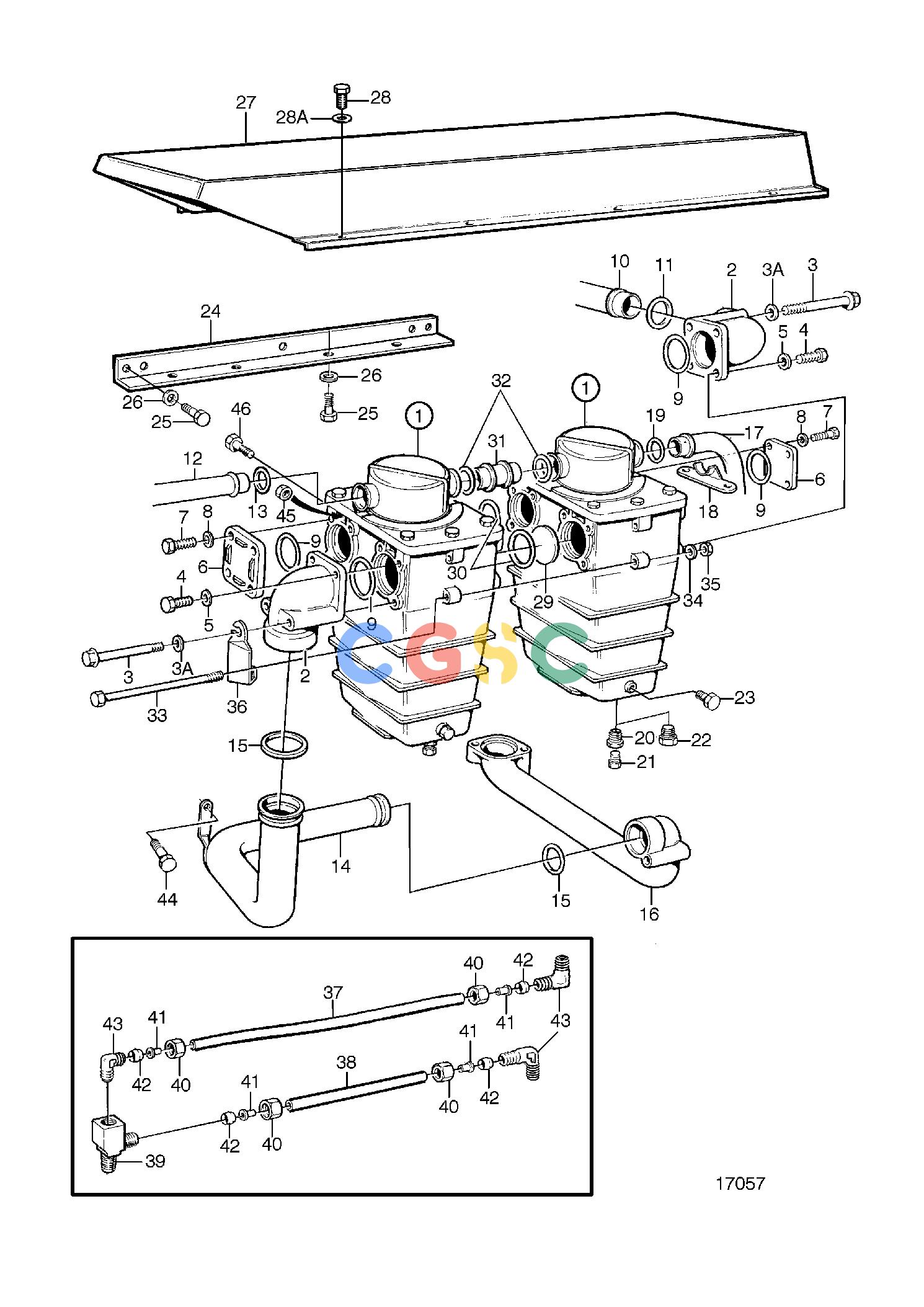

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
591 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864916
|
[2] |
Heat exchanger, classifiable
|
As a spare part a classified heat exchanger is obtained., Repl by 864916
|
| 1. |
|
|
|
|
| 2. |
471709
|
[2] |
Connecting pipe
|
|
| 3. |
965183
|
[4] |
Flange screw
|
(940129)
|
| 3A. |
11978
|
[4] |
Washer
|
|
| 4. |
946671
|
[4] |
Flange screw
|
(940129)
|
| 5. |
941907
|
[4] |
Spring washer
|
(940142)
|
| 6. |
847619
|
[2] |
Cap
|
|
| 7. |
946440
|
[8] |
Flange screw
|
|
| 8. |
941907
|
[8] |
Spring washer
|
|
| 9. |
925094
|
[4] |
O-ring
|
|
| 10. |
848481
|
[1] |
Coolant pipe
|
Thermostat housing-heat exchanger.
|
| 11. |
864723
|
[1] |
Sealing ring
|
|
| 12. |
3827942
|
[1] |
Coolant pipe
|
(864970)
|
| 13. |
466739
|
[1] |
O-ring
|
|
| 14. |
848477
|
[1] |
Coolant pipe
|
|
| 15. |
864723
|
[2] |
Sealing ring
|
|
| 16. |
7738900_064
|
|
Coolant pipe
|
|
| 17. |
3827943
|
[1] |
Coolant pipe
|
Sea water pump-heat exchanger., (864971)
|
| 18. |
864918
|
[2] |
Retainer
|
|
| 19. |
466739
|
[1] |
O-ring
|
|
| 20. |
332262
|
[2] |
Reduction nipple
|
Replaced by plug 3825335., TAMD72WJ-A
|
| 21. |
861551
|
[2] |
Plug
|
Replaced by plug 3825335., TAMD72WJ-A (192134)
|
| 22. |
3825335
|
[2] |
Plug
|
Later prod, (978904)
|
| 22. |
|
|
|
TAMD71B, 72WJ-A (192134)
|
| 23. |
981749
|
[2] |
Plug
|
(191026)
|
| 24. |
848100
|
[1] |
Bracket
|
|
| 25. |
946173
|
[6] |
Flange screw
|
M8x20mm
|
| 25. |
955296
|
[2] |
Hexagon screw
|
M8x22mm
|
| 26. |
941907
|
[8] |
Spring washer
|
|
| 26. |
955894
|
[1] |
Washer
|
|
| 27. |
849451
|
[1] |
Cover
|
Obtained only in green paint as a spare part
|
| 28. |
967949
|
[8] |
Flange screw
|
|
| 28A. |
949607
|
[8] |
Spring washer
|
|
| 29. |
847618
|
[1] |
Cap
|
|
| 30. |
947663
|
[2] |
O-ring
|
|
| 31. |
3827941
|
[1] |
Coolant pipe
|
(864969)
|
| 32. |
466739
|
[2] |
O-ring
|
|
| 33. |
968303
|
[4] |
Hexagon screw
|
|
| 34. |
941907
|
[4] |
Spring washer
|
|
| 35. |
946036
|
[4] |
Lock nut
|
|
| 36. |
849449
|
[1] |
Bracket
|
|
| 37. |
945460
|
[1] |
Tube
|
L=145mm
|
| 38. |
945460
|
[1] |
Tube
|
L=200mm
|
| 39. |
344286
|
[1] |
T-nipple
|
|
| 40. |
954356
|
[4] |
Fitting nut
|
|
| 41. |
944717
|
[4] |
Support sleeve
|
|
| 42. |
954364
|
[4] |
Sleeve
|
|
| 43. |
479958
|
[3] |
Elbow nipple
|
(329638)
|
| 44. |
946440
|
[1] |
Flange screw
|
|
| 45. |
946036
|
[4] |
Lock nut
|
M8x8,5mm
|
| 46. |
945444
|
[4] |
Flange screw
|
M8x25mm
|
