斗山零件查询OVER HAUL GASKET KIT-TOP SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
523 次

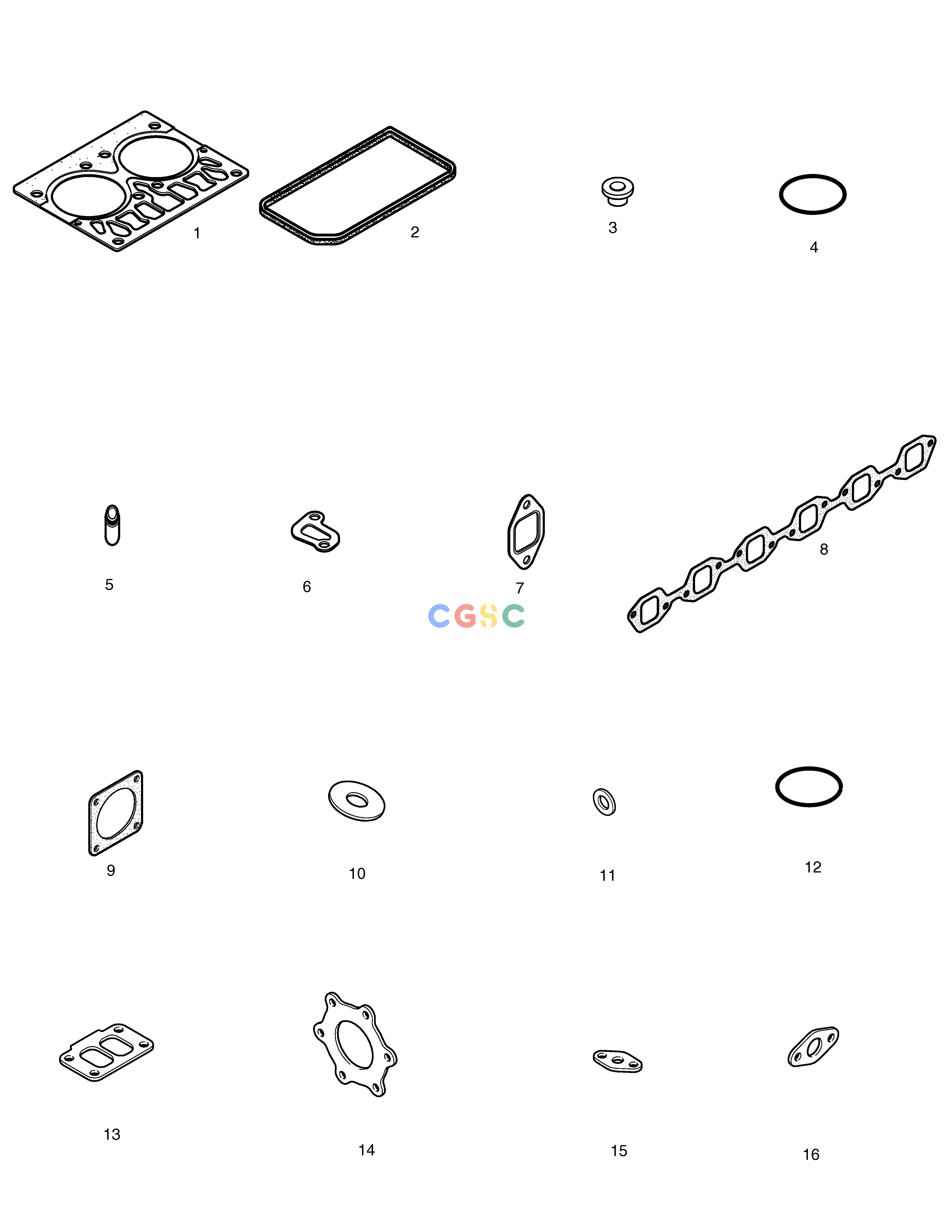

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
65.99605-8011
|
[1] |
OVER HAUL GASKET KIT-TOP
|
|
| 1. |
65.03901-0058
|
[3] |
GASKET;CYLINDER HEAD
|
|
| 10. |
65.96501-0057
|
[6] |
RING;SEAL
|
|
| 11. |
06.56180-0712
|
[12] |
RING;SEAL
|
|
| 12. |
65.96501-0058
|
[2] |
O-RING
|
|
| 13. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 14. |
65.09901-0012
|
[1] |
GASKET
|
|
| 15. |
65.96601-0046A
|
[1] |
GASKET;OIL PIPE ADAPTER
|
|
| 16. |
65.96601-0045A
|
[1] |
GASKET
|
|
| 2. |
65.03905-0022
|
[3] |
GASKET;CYLINDER HEAD COVER
|
|
| 3. |
65.03905-0023A
|
[6] |
GASKET;CYLINDER HEAD COVER MOUNTIN
|
|
| 4. |
65.96501-0033B
|
[1] |
O-RING
|
|
| 5. |
65.04902-0013
|
[12] |
SEAL;VALVE STEAM
|
|
| 6. |
65.06903A0011
|
[3] |
GASKET;COOLING WATER PIPE
|
|
| 7. |
65.08901A0013
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 8. |
65.08902A0024
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 9. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
