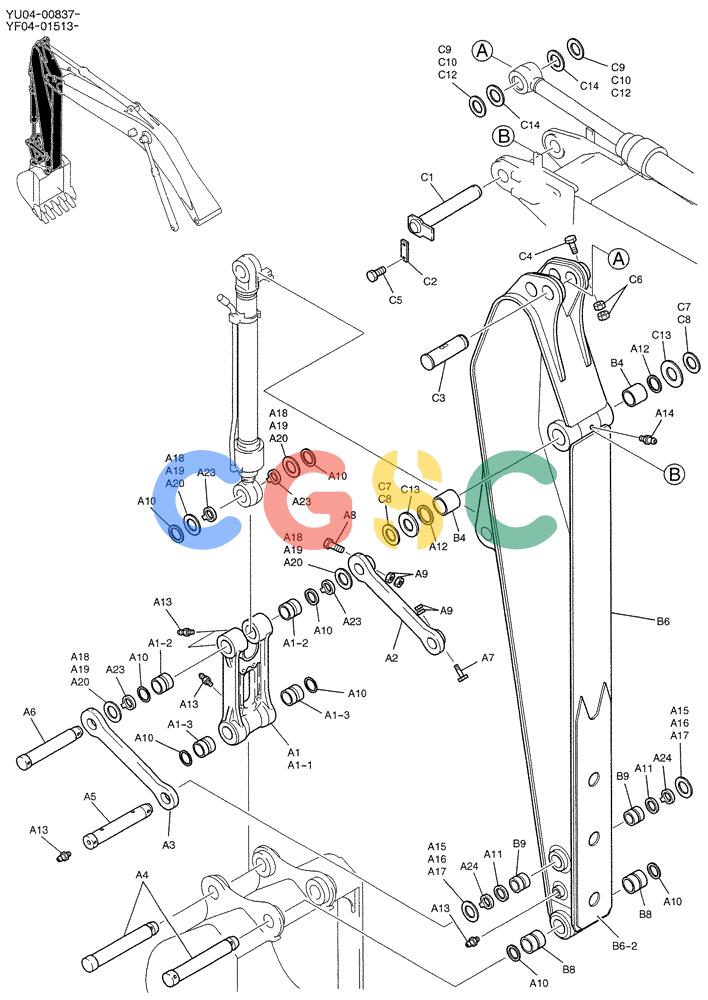

| . . | YN12B00596F1 | [1] | ARM GROUP | |
| A1-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONLINK, BUCKET |
| A1-2. | YN12B01835P1 | [2] | BUSHING,80.28mm ID x 95mm OD x 95mm L | KOB |
| A1-3. | YN12B01839P1 | [2] | BUSHING | KOB |
| A2. | YN12B01227P1 | [1] | LINK | KOB Superseded by part number: YN12B11269P1 |
| A3. | YN12B01228P1 | [1] | LINK | KOB |
| A4. | YN12B01716P1 | [2] | PIN | KOB |
| A5. | YN12B01717P1 | [1] | PIN,70mm OD x 476mm L | KOB |
| A6. | YN12B01718P1 | [1] | PIN,80mm OD x 476mm L | KOB |
| A7. | HS18C16130G2 | [1] | BOLT,Hex, M16 x 130mm, Cl 10.9 | KOBCAP |
| A8. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBCAP |
| A9. | ZN18C16013 | [4] | NUT | KOB |
| A10. | 2445R220D4 | [8] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDUST |
| A11. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDUST |
| A12. | 2445R220D6 | [2] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDUST |
| A13. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGREASE |
| A14. | ZG91U02000 | [1] | LUBE NIPPLE | KOBGREASE |
| A15. | B16T0442D57 | [1] | SHIM,0.5mm Thk | KOB |
| A16. | B16T0442D44 | [1] | SHIM,0.9mm Thk | KOB |
| A17. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOB(1.6) |
| A18. | YN12B01122D1 | [2] | SHIM,82mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| A19. | YN12B01122D2 | [2] | SHIM,82mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| A20. | YN12B01122D3 | [2] | SHIM,82mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
| A23. | YN12B01601D1 | [4] | SHIM,82mm ID x 140mm OD x 2mm Thk | KOB(2.0) |
| A24. | YN12B01602D1 | [2] | SHIM,72mm ID x 130mm OD x 2mm Thk | KOB(2.0) |
| B4. | YN12B01597P1 | [2] | BUSHING | KOB Superseded by part number: LQ12B01368P1 |
| B9. | YN12B01838P1 | [2] | BUSHING,70.28mm ID x 85mm OD x 67mm L | KOB |
| . . | YN12B00357F1 | [1] | ARM | KOBINSTAL |
| C1. | YN12B01699P1 | [1] | PIN | KOB |
| C2. | YN02B01466P1 | [1] | PIN,85mm OD x 280mm L | KOB |
| C3. | 2418T12469 | [1] | PLATE | KOB |
| C4. | HS18C16150G2 | [1] | SCREW | KOBCAP |
| C5. | ZS18C14025 | [2] | SCREW,Hex, M14 x 25mm | KOBCAP |
| C7. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOB(0.5) |
| C8. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOB(0.9) |
| C9. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| C10. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| C12. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
| C13. | YN02B01414D1 | [2] | SHIM,92mm ID x 160mm OD x 2mm Thk | KOB(2.0) |
| C14. | YN02B01415D1 | [2] | SHIM,87mm ID x 150mm OD x 2mm Thk | KOB(2.0) |
