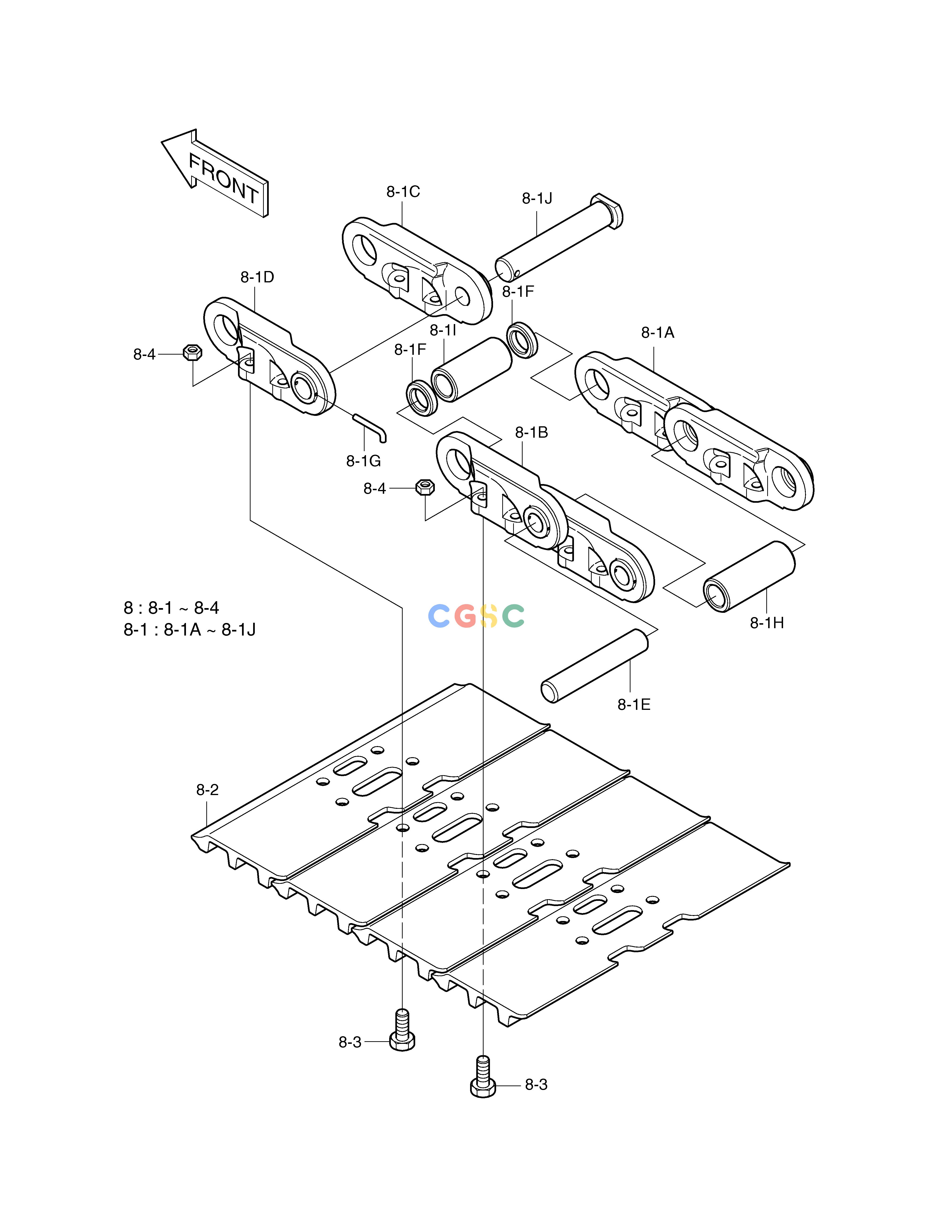

斗山零件查询TRACK SHOE ASS'Y-600G SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
604-00011A
|
[-] |
TRACK ASS'Y
|
|
| 8. |
273-00008
|
[2] |
TRACK SHOE ASS'Y
|
|
| 8-1. |
273-00009
|
[1] |
TRACK LINK ASS'Y
|
|
| 8-1A. |
2272-6104R
|
[50] |
LINK;TRACK(RH)
|
|
| 8-1B. |
2272-6104L
|
[50] |
LINK;TRACK(LH)
|
|
| 8-1C. |
2272-6105R
|
[1] |
LINK;MASTER(RH)
|
|
| 8-1D. |
2272-6105L
|
[1] |
LINK;MASTER(LH)
|
|
| 8-1E. |
2123-6060
|
[50] |
PIN
|
|
| 8-1F. |
2114-6035
|
[2] |
SPACER
|
|
| 8-1G. |
2123-6062
|
[1] |
PIN;SMALL
|
|
| 8-1H. |
2110-6051
|
[50] |
BUSHING
|
|
| 8-1I. |
2110-6052
|
[1] |
BUSHING;MASTER
|
|
| 8-1J. |
2123-6061
|
[1] |
PIN;MASTER
|
|
| 8-2. |
2273-6040D1
|
[51] |
SHOE 600mm
|
|
| 8-3. |
2120-6017
|
[204] |
BOLT
|
|
| 8-4. |
2121-6017
|
[204] |
NUT
|
|
