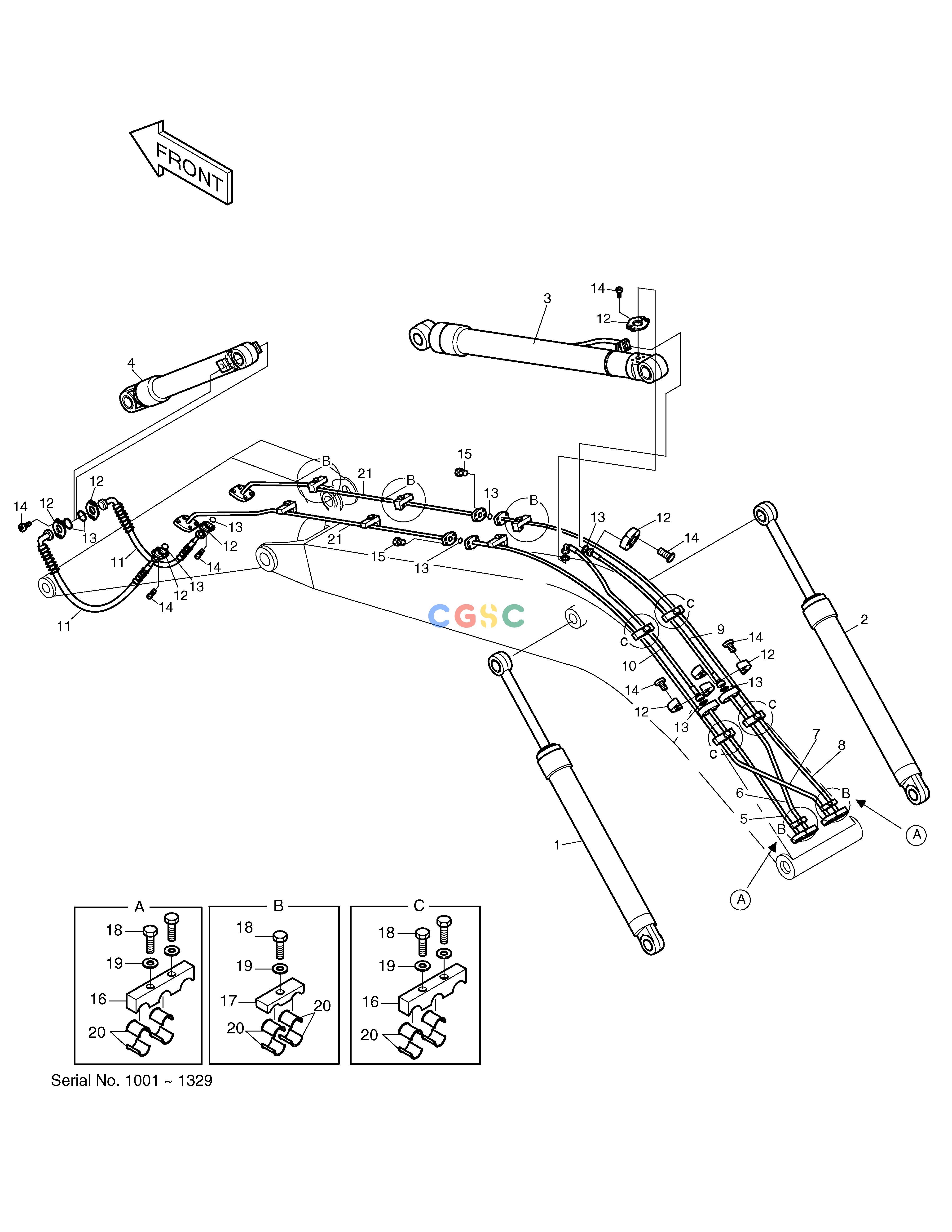

斗山零件查询FRONT PIPING SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00084A
|
[-] |
FRONT PIPING
|
|
| 1. |
440-00042B
|
[1] |
BOOM CYLINDER-L.H
|
440-00042C
|
| 1. |
440-00042C
|
[1] |
BOOM CYLINDER-L.H
|
440-00042E
|
| 1. |
440-00042E
|
[1] |
CYLINDER;BOOM(LH)
|
|
| 10. |
2184-1100D226
|
[1] |
HOSE
|
2184-1100D251
|
| 10. |
2184-1100D251
|
[1] |
HOSE PF1-1100L
|
|
| 11. |
2184-1100D15
|
[2] |
HOSE
|
|
| 12. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 13. |
2180-1026D19
|
[10] |
O-RING
|
|
| 14. |
S2212261
|
[32] |
SOCKET-HEAD BOLT
|
S2212266
|
| 14. |
S2212266
|
[32] |
BOLT
|
|
| 15. |
S2212461
|
[8] |
BOLT;SOCKET
|
S2212466
|
| 15. |
S2212466
|
[8] |
BOLT
|
|
| 16. |
124-00005
|
[6] |
CLAMP;PIPE
|
|
| 16. |
124-00168
|
[4] |
CLAMP;PIPE
|
|
| 17. |
124-00006
|
[6] |
CLAMP;PIPE
|
|
| 17. |
124-00169
|
[8] |
CLAMP;PIPE
|
|
| 18. |
S0565661
|
[16] |
BOLT M16X2.0X70
|
S0565666
|
| 18. |
S0565666
|
[16] |
BOLT
|
|
| 19. |
S5102901
|
[16] |
. WASHER;SPRING
|
S5102903
|
| 19. |
S5102903
|
[16] |
WASHER
|
|
| 2. |
440-00043E
|
[1] |
CYLINDER;BOOM(RH)
|
|
| 2. |
440-00043B
|
[1] |
BOOM CYLINDER-R.H
|
440-00043C
|
| 2. |
440-00043C
|
[1] |
BOOM CYLINDER-R.H
|
440-00043E
|
| 20. |
161-00102
|
[36] |
RUBBER
|
|
| 21. |
140-00110
|
[2] |
PIPE
|
|
| 3. |
440-00044A
|
[1] |
ARM CYLINDER
|
440-00044B
|
| 3. |
440-00044B
|
[1] |
CYLINDER;ARM
|
|
| 4. |
440-00045A
|
[1] |
CYLINDER;BUCKET
|
440-00045B
|
| 4. |
440-00045B
|
[1] |
CYLINDER;BUCKET
|
440-00045C
|
| 4. |
440-00045C
|
[1] |
CYLINDER;BUCKET
|
|
| 5. |
140-00095
|
[1] |
PIPE
|
|
| 6. |
140-00096
|
[1] |
PIPE
|
|
| 7. |
140-00083
|
[1] |
PIPE
|
|
| 8. |
140-00084
|
[1] |
PIPE
|
|
| 9. |
2184-1081D146
|
[1] |
HOSE PF1-1100L
|
|
