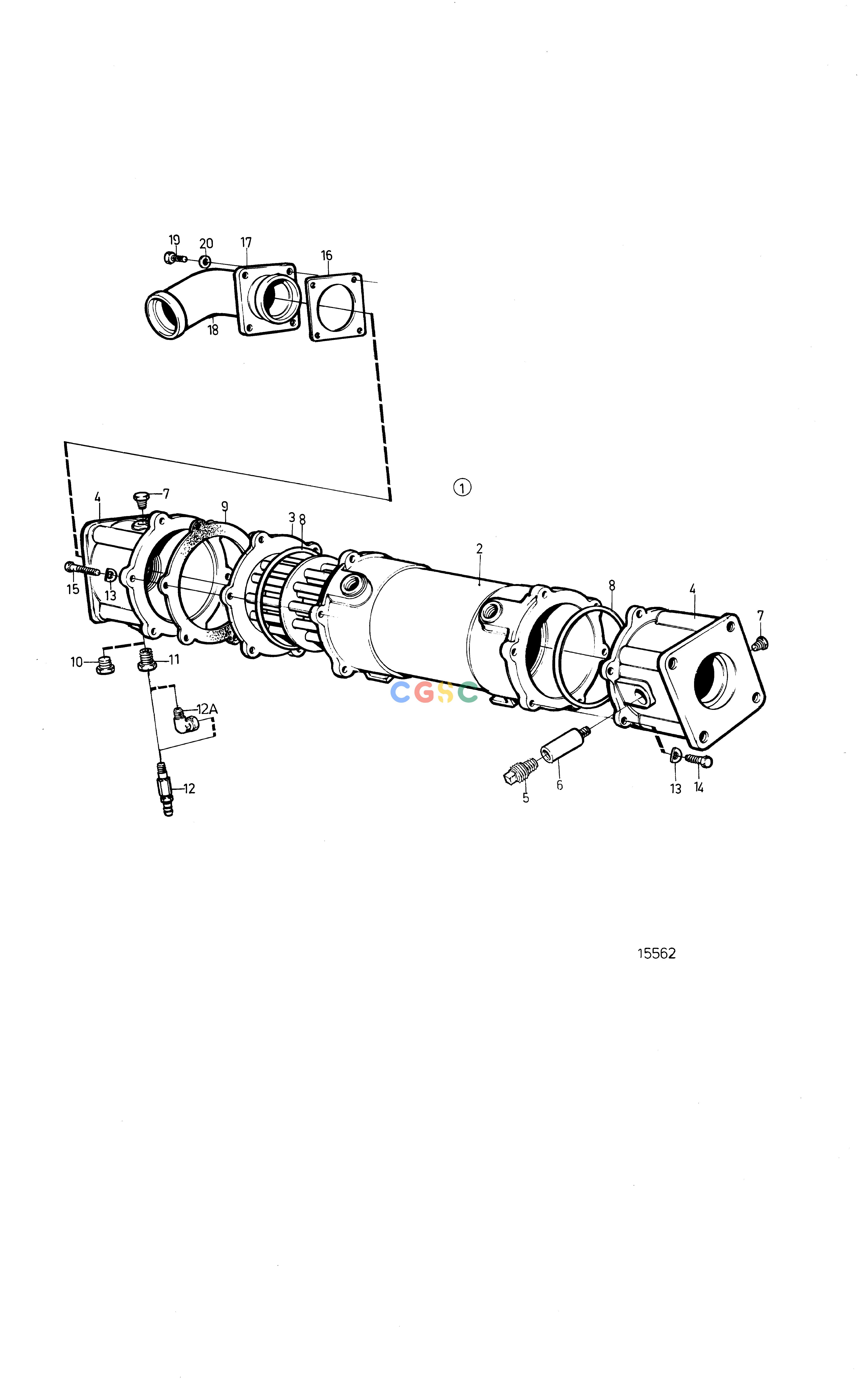

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemOil Cooler for Reverse Gear, Components: 864207, 3825955EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
787 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864207
|
[1] |
Oil cooler
|
Repl by 3825955
|
| 1. |
3825955
|
[1] |
Oil cooler
|
|
| 2. |
863259
|
[1] |
Housing
|
|
| 3. |
3825938
|
[1] |
Insert
|
(864212)
|
| 4. |
848178
|
[2] |
Cap
|
|
| 5. |
838928
|
[1] |
Plug
|
|
| 6. |
838929
|
[1] |
Anode
|
|
| 7. |
981749
|
[2] |
Plug
|
|
| 8. |
806154
|
[2] |
Sealing ring
|
|
| 9. |
862601
|
[1] |
Gasket
|
|
| 11. |
479954
|
[1] |
Nipple
|
Later prod (190130)
|
| 12. |
949918
|
[1] |
Shut-off cock
|
D=1/4
|
| 12A. |
180254
|
[1] |
Elbow nipple
|
Alt, for IRM301A
|
| 13. |
949607
|
[12] |
Spring washer
|
|
| 14. |
955272
|
[6] |
Hexagon screw
|
L=20mm
|
| 15. |
955274
|
[6] |
Hexagon screw
|
L=25mm
|
| 16. |
862592
|
[1] |
Gasket
|
|
| 17. |
842029
|
[1] |
Flange
|
|
| 18. |
848596
|
[1] |
Hose attachment
|
|
| 19. |
970947
|
[4] |
Hexagon screw
|
|
| 20. |
941908
|
[4] |
Spring washer
|
|
