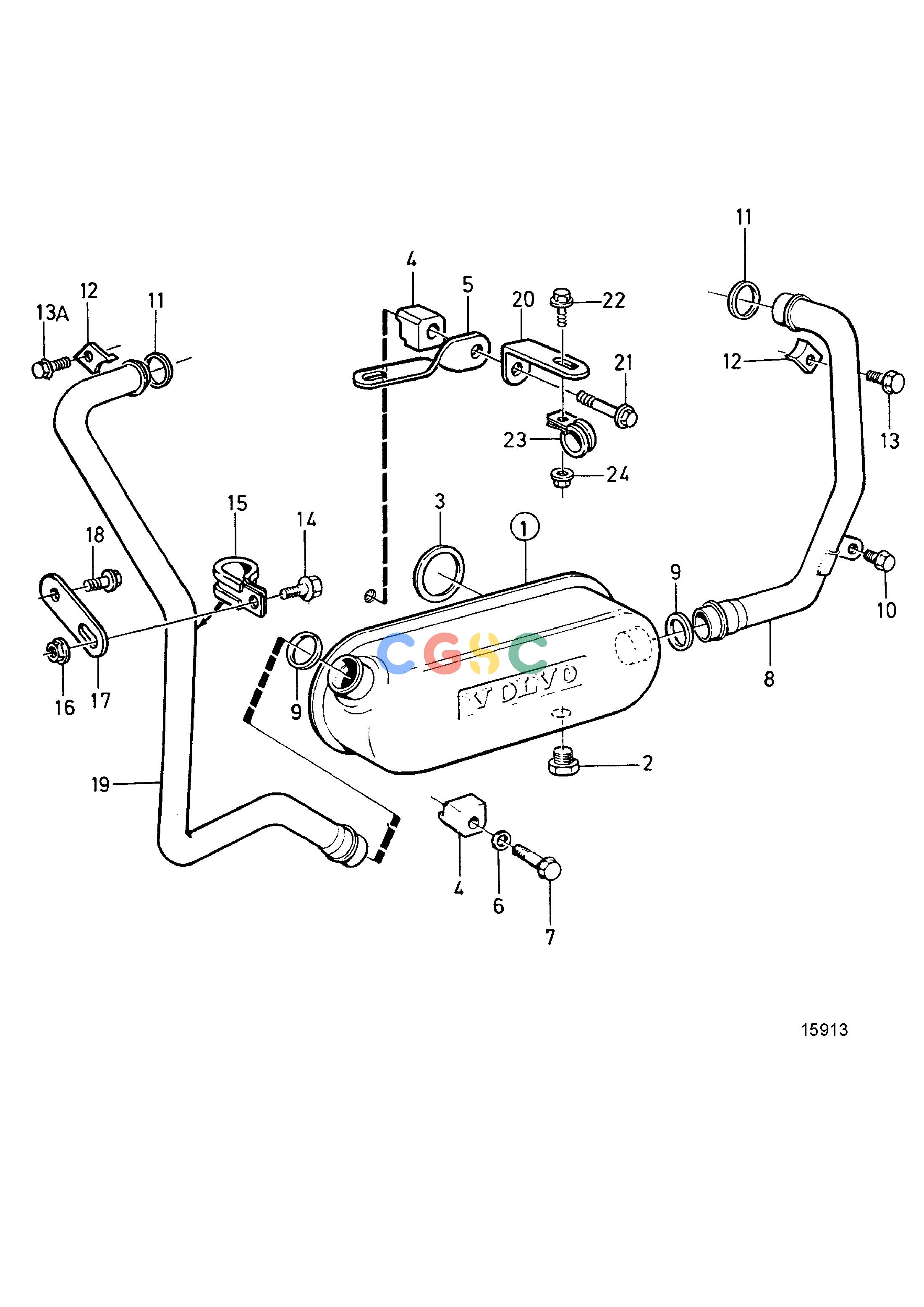

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemOil Cooler, EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866539
|
[1] |
Oil cooler
|
|
| 2. |
180759
|
[1] |
Plug
|
|
| 3. |
471467
|
[2] |
Sealing ring
|
|
| 4. |
471804
|
[4] |
Retainer
|
|
| 5. |
1136551
|
[1] |
Anchorage
|
|
| 6. |
941908
|
[4] |
Spring washer
|
|
| 7. |
965186
|
[4] |
Flange screw
|
M10x50mm
|
| 8. |
864588
|
[1] |
Water pipe
|
Cylinder block-oil cooler.
|
| 9. |
1543579
|
[2] |
Sealing ring
|
|
| 10. |
946441
|
[1] |
Flange screw
|
M8x20mm
|
| 11. |
471637
|
[2] |
Sealing ring
|
|
| 12. |
421654
|
[2] |
Clamp
|
|
| 13. |
946440
|
[1] |
Flange screw
|
L=16mm
|
| 13A. |
949846
|
[1] |
Flange screw
|
Tapping screw.
|
| 14. |
946544
|
[1] |
Flange screw
|
M6x16mm
|
| 15. |
952635
|
[1] |
Clamp
|
|
| 16. |
945407
|
[1] |
Flange nut
|
M6
|
| 17. |
965538
|
[1] |
Bracket
|
|
| 18. |
946440
|
[1] |
Flange screw
|
M8x16mm
|
| 19. |
864589
|
[1] |
Water pipe
|
Thermostat housing-oil cooler.
|
| 20. |
965556
|
[2] |
Bracket
|
M10x50mm
|
| 21. |
965186
|
[2] |
Flange screw
|
|
| 22. |
945414
|
[2] |
Flange screw
|
M6x14
|
| 23. |
952635
|
[2] |
Clamp
|
|
| 24. |
949278
|
[2] |
Flange lock nut
|
M6
|
