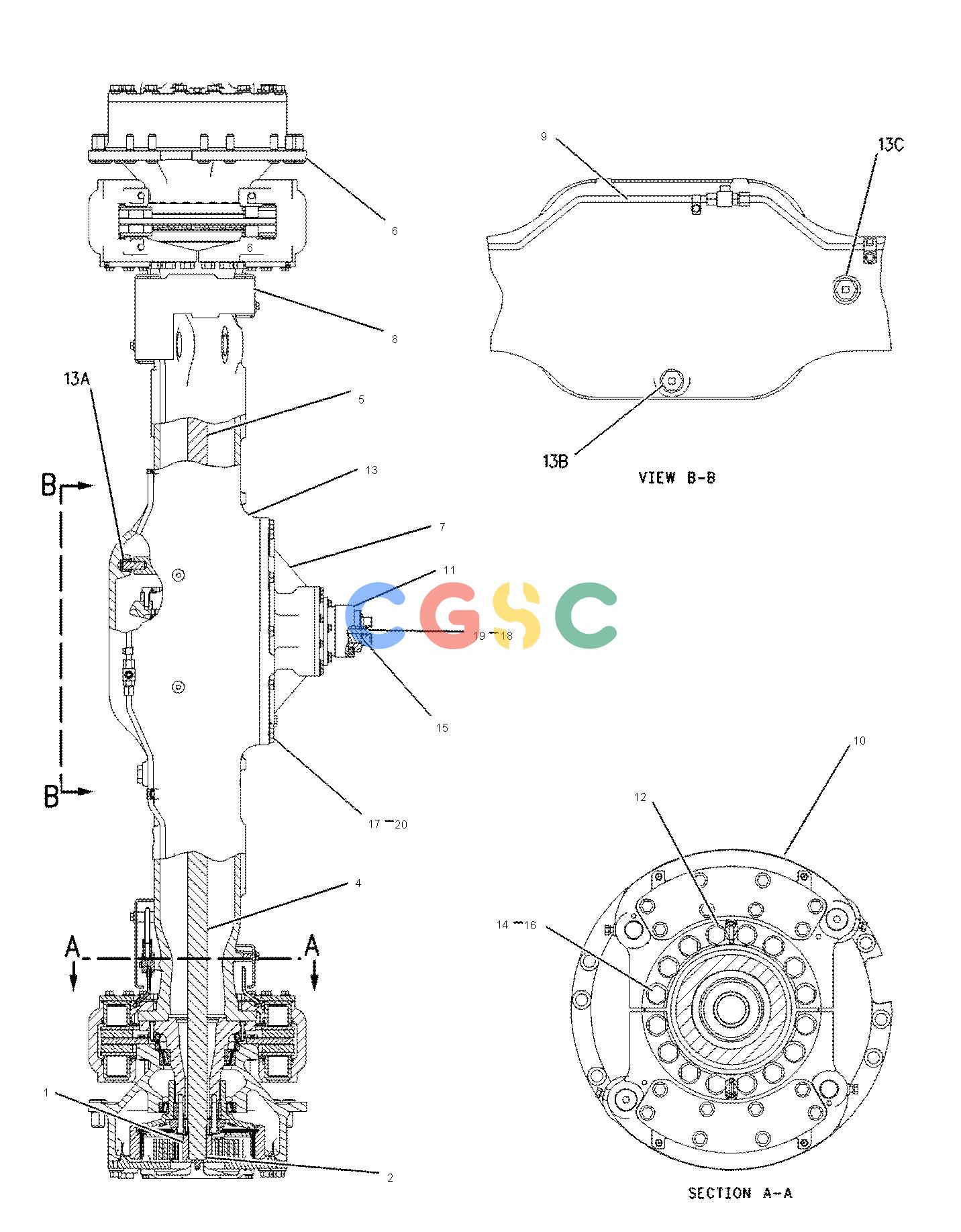

卡特零件查询（730） 147-7400: AXLE GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
408 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8K-6282 | [2] | GEAR-SUN(17-TEETH) | |
| 2. | 8K-6464 | [2] | RING-RETAINING | |
| 4. | 138-4092 | [1] | SHAFT | |
| 5. | 138-4093 | [1] | SHAFT | |
| 6. | 147-5225Y | [2] | WHEEL & FINAL DRIVE GP | |
| 7. | 147-7380Y | [1] | DIFFERENTIAL & BEVEL GEAR GP(AXLE, FRONT, REAR) | |
| 8. | 148-9967Y | [1] | GUARD GP-LINES(AXLE, FRONT) | |
| 9. | 148-9972Y | [1] | LINES GP-SERVICE BRAKE(FRONT) | |
| 10. | 159-7596Y | [4] | BRAKE GP-SERVICE | |
| 11. | 177-3917 | [1] | YOKE AS | |
| | 7V-3791 | [1] | GUARD | |
| 12. | 195-9464 | [4] | SPACER-SPECIAL(3.5-MM THK) | |
| 13. | 205-0196 | [1] | HOUSING AS-AXLE | |
| 13A. | 160-6213 | [2] | BUSHING | |
| 13B. | 5P-4484 | [1] | PLUG-MAGNETIC(AXLE HOUSING) | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 13C. | 5P-4483 | [1] | PLUG | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 14. | 1D-4609 | [32] | BOLT(3/4-10X3-IN) | |
| 15. | 4F-7391 | [1] | SEAL-O-RING | |
| 16. | 5P-8248 | [24] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 17. | 8T-4193M | [14] | BOLT(M16X2X50-MM) | |
| 18. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-6868M | [1] | BOLT(M12X1.75X80-MM) | |
| 20. | 9X-8257 | [14] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
