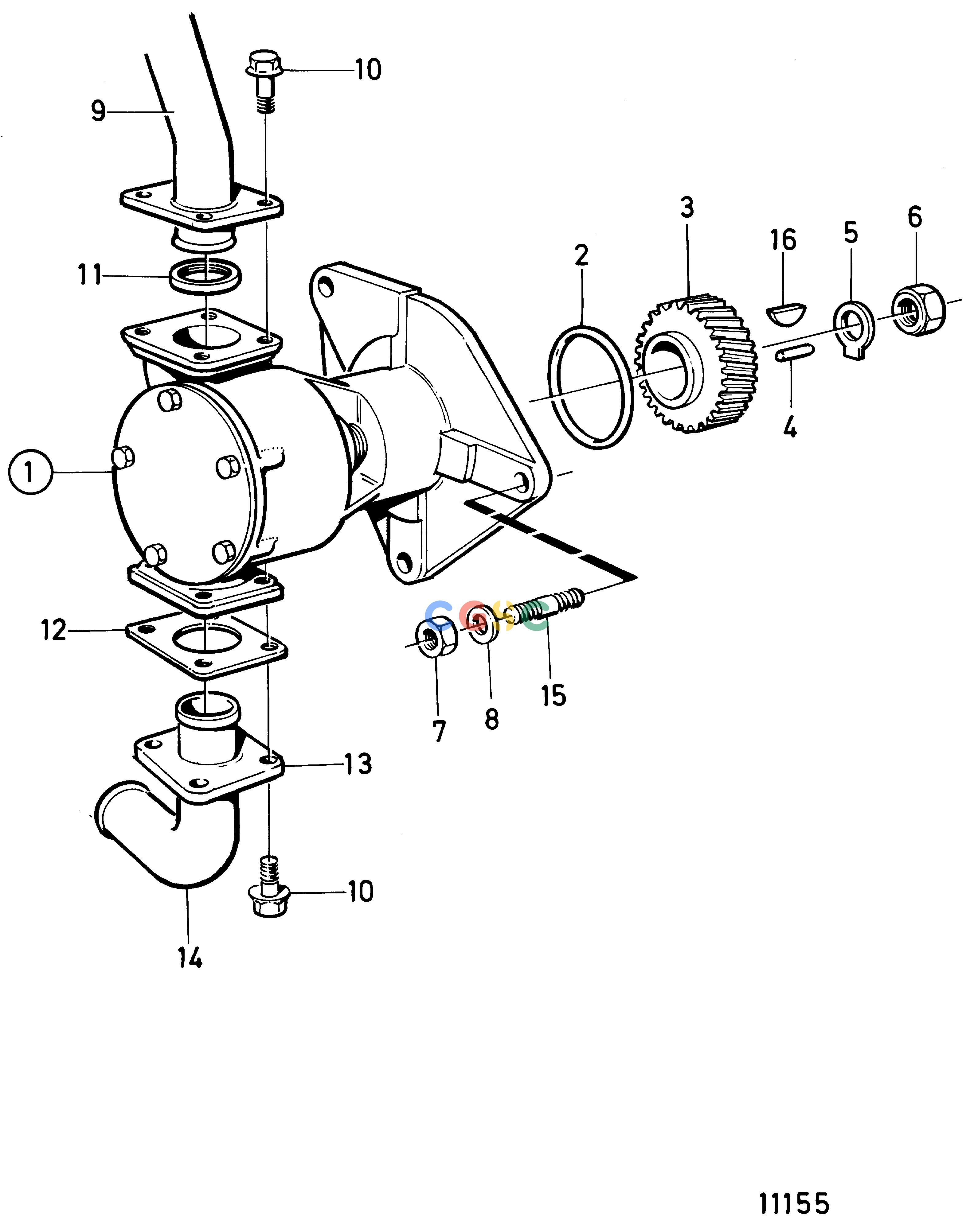

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
981 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866739
|
[1] |
Sea water pump
|
|
| 1. |
|
|
|
|
| 2. |
925257
|
[1] |
O-ring
|
|
| 3. |
820637
|
[1] |
Gear
|
|
| 4. |
950564
|
[1] |
Pin
|
|
| 5. |
942735
|
[1] |
Tab washer
|
|
| 6. |
955860
|
[1] |
Hexagon nut
|
|
| 7. |
971073
|
[3] |
Hexagon nut
|
|
| 8. |
941911
|
[3] |
Spring washer
|
|
| 9. |
3827943
|
[1] |
Coolant pipe
|
Sea water pump-heat exchanger., (864971)
|
| 10. |
946441
|
[8] |
Flange screw
|
M10
|
| 11. |
864491
|
[1] |
Gasket
|
|
| 12. |
862592
|
[1] |
Gasket
|
|
| 13. |
842029
|
[1] |
Flange
|
|
| 14. |
848596
|
[1] |
Hose attachment
|
|
| 15. |
967951
|
[3] |
Stud
|
See group 21
|
| 16. |
942406
|
[1] |
Woodruff key
|
|
