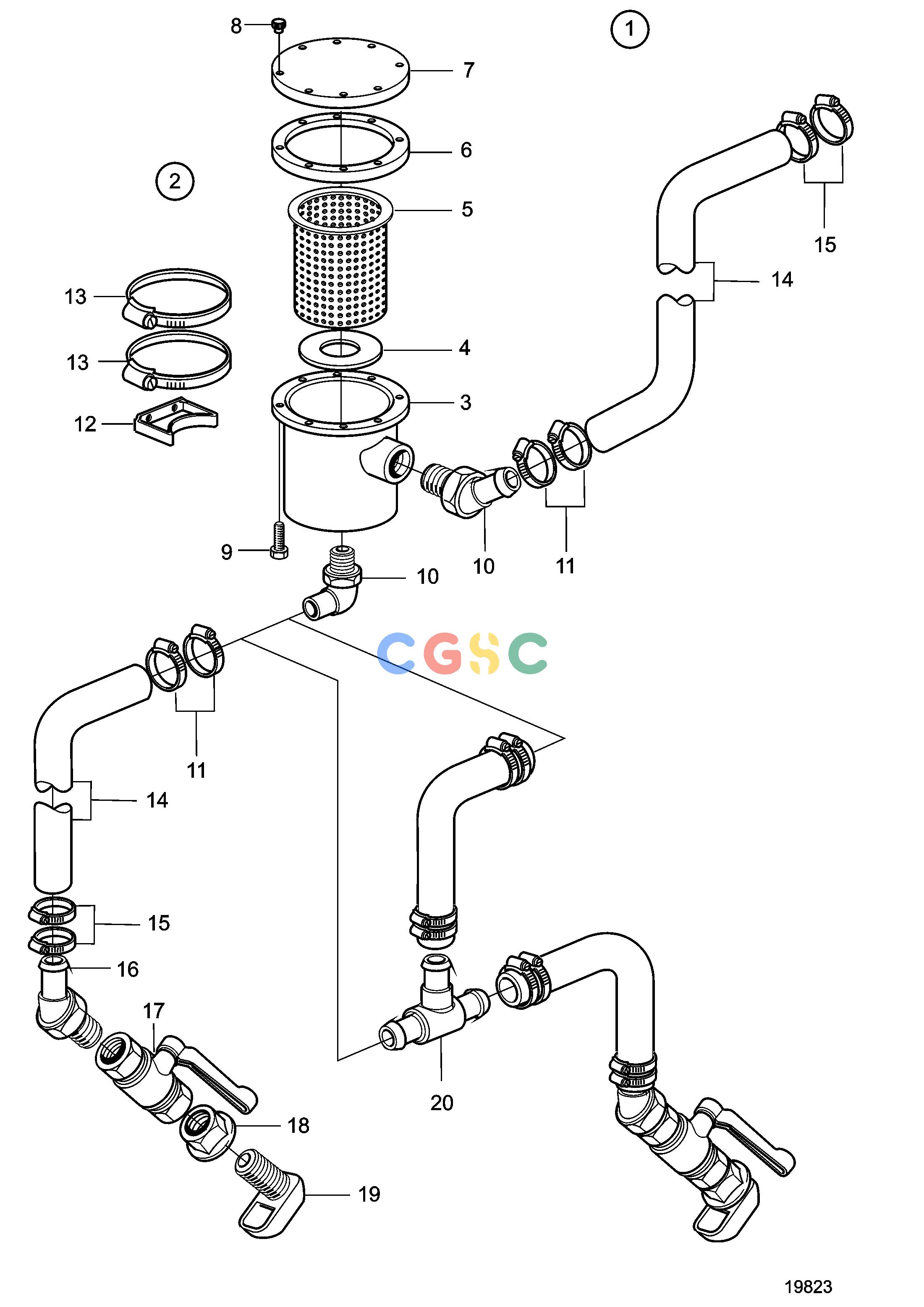

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemSea Water FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
719 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
862199
|
[1] |
Sea water filter
|
|
| 2. |
842466
|
[1] |
Sea water filter
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
Included in gasket kit 3589331
|
| 5. |
843358
|
[1] |
Filter
|
|
| 6. |
|
|
|
Included in gasket kit 3589331
|
| 7. |
843359
|
[1] |
Cap
|
|
| 8. |
843357
|
[8] |
Nut
|
|
| 9. |
843362
|
[8] |
Screw
|
|
| 10. |
849571
|
[2] |
Hose attachment
|
|
| 11. |
961672
|
[4] |
Hose clamp
|
|
| 12. |
828061
|
[2] |
Retainer
|
|
| 13. |
961678
|
[2] |
Hose clamp
|
|
| 14. |
848327
|
[1] |
Hose
|
|
| 15. |
961673
|
[4] |
Hose clamp
|
|
| 16. |
848420
|
[1] |
Hose connection
|
|
| 17. |
3837938
|
[1] |
Ball valve
|
|
| 18. |
848323
|
[1] |
Flange nut
|
|
| 19. |
848321
|
[1] |
Strainer
|
|
| 20. |
848669
|
[1] |
T-pipe
|
Used when two sea water intake are mounted.
|
