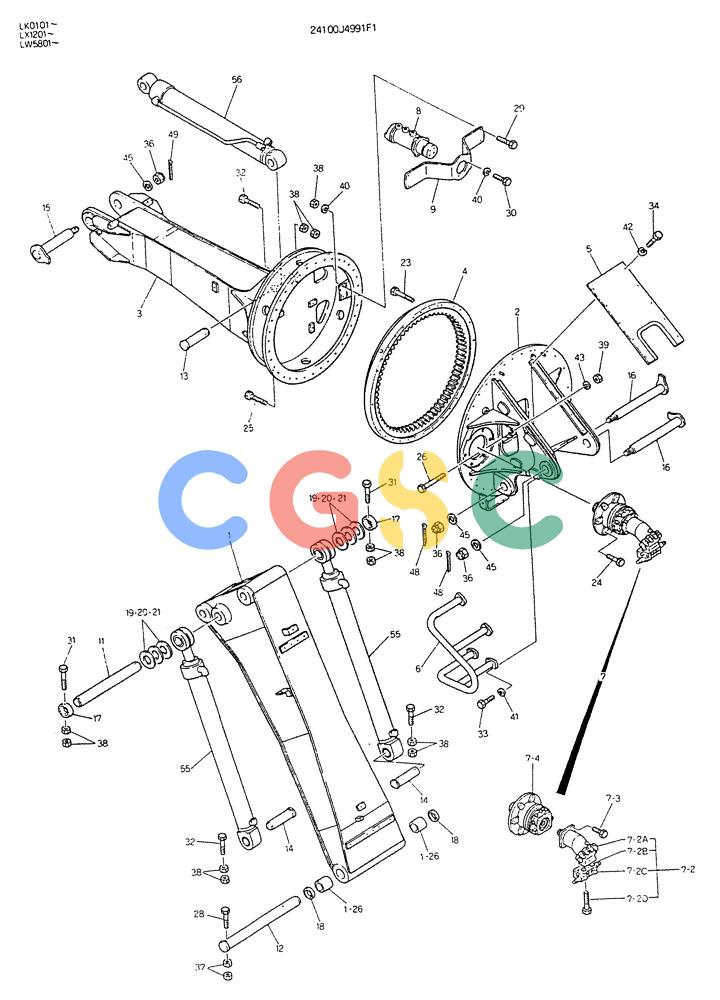

| . . | 24100J4991F1 | [1] | BOOM ASSY | |
| 1. | 2411J1713F1 | [1] | BOOM | |
| 1-26. | 2405T846 | [2] | BUSHING | KOB |
| 2. | 2411J1714 | [1] | BOOM | |
| 3. | 2411J1715 | [1] | BOOM | |
| 4. | 2425U161F1 | [1] | BEARING | KOBP.221-01 |
| 5. | 2414T1992 | [1] | COVER | |
| 6. | 2414P2929 | [1] | GUARD | |
| 7. | 24100J4603F3 | [1] | MOTOR ASSY, SWING | |
| 7-2. | 2441U312F2 | [1] | MOTOR, HYDR | |
| 7-2A. | 2441U250F1 | [1] | MOTOR HYDR | MOTOR HYDR |
| 7-2B. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 7-2C. | 2436U565F2 | [1] | VALVE | KOBBRAKE |
| 7-2D. | ZS23C12105 | [8] | SCREW,Hex Socket Head, M12 x 105mm | KOBM12x1.75x105mm |
| 7-3. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 7-4. | 24100J4606F2 | [1] | REDUCTION UNIT, SEE FIG . 01-009 | |
| 8. | 2436U818F1 | [1] | JOINT, SWIVEL | JOINT, SWIVEL |
| 9. | 2411P1145 | [1] | PLATE | |
| 11. | 2419T3524 | [1] | PIN | KOB |
| 12. | 2419P1546 | [1] | PIN | PIN |
| 13. | 2419P1554 | [1] | PIN | PIN |
| 14. | 2419P1558 | [2] | PIN | PIN |
| 15. | 2419T3599 | [1] | PIN | |
| 16. | 2419T3598 | [2] | PIN | |
| 17. | 2416T7461 | [2] | COLLAR | COLLAR |
| 18. | 2445R13RD6 | [2] | SEAL, DUST | |
| 19. | B16T0442D1 | [2] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 20. | B16T0442D2 | [2] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 21. | B16T0442D17 | [2] | SHIM,130mm OD x 72mm ID x 3.2mm Thk | KOBID 72 x OD 130 x Th 3.2mm |
| 23. | ZS13C16080 | [27] | CAPSCREW | KOBSCREW M16x2.0x80mm |
| 24. | ZS13C16050 | [6] | SCREW | KOBM16x2.0x50mm |
| 25. | ZS13C16045 | [36] | SCREW | KOBScrew -- M16x2.0x45mm |
| 26. | ZS13C16120 | [1] | SCREW | KOB |
| 28. | ZS13C14130 | [1] | SCREW | KOBM14x2.0x130mm |
| 29. | ZS13C12045 | [4] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 30. | ZS13C12030 | [7] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 31. | ZS13C12120 | [2] | SCREW | KOBM12x1.75x120mm Superseded by part number: ZS18C12120 |
| 32. | ZS13C12110 | [3] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 33. | ZS13C10040 | [16] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 34. | ZS13C08020 | [10] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 36. | ZN21C48050 | [3] | NUT | |
| 37. | ZN12C14011 | [2] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 38. | ZN12C12010 | [16] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 39. | ZN12C16013 | [1] | NUT | KOBM16x2.0mm |
| 40. | ZW22X12000 | [24] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 41. | ZW22X10000 | [34] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 42. | ZW22X08000 | [14] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 43. | ZW22X16000 | [1] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 45. | ZW11X48000 | [3] | WASHER | |
| 48. | ZP15D08085 | [2] | SPLIT PIN | |
| 49. | ZP15D08100 | [1] | SPRING | KOBCotter -- OD 08 x 100mm Long |
| 55. | 2438U554F2 | [2] | CYLINDER | KOBBUCKET CYLINDER Superseded by part number: 2438U554F3 |
| 56. | 2438U409F3 | [1] | CYLINDER | CYLINDER |
| 57. | 2418T10636 | [1] | TUBE | |
| 58. | 2418P981201 | [1] | TUBE | |
| 59. | 2418P781202 | [1] | TUBE | |
| 60. | 2418T10629 | [1] | TUBE | |
| 61. | 2418P978602 | [1] | TUBE | |
| 62. | 2418T10905 | [1] | TUBE | |
| 63. | 2418T10906 | [1] | TUBE | |
| 64. | 2418T10639D1 | [1] | TUBE | |
| 65. | 2418P9914D2 | [1] | TUBE | |
| 66. | 2418T10639D2 | [1] | TUBE | |
| 67. | 2418P9914D1 | [1] | TUBE | |
| 68. | 241RT10640 | [2] | TUBE | |
| 69. | 2418P6344 | [2] | TUBE | KOB |
| 70. | 2418P7092D1 | [1] | TUBE | TUBE |
| 71. | 2418P7092D2 | [1] | TUBE | TUBE |
| 72. | 2418P9814D1 | [2] | TUBE | |
| 73. | 2418P081402 | [2] | TUBE | |
| 74. | 2418T18641 | [1] | TUBE | |
| 75. | 2418P9705D2 | [1] | TUBE | |
| 76. | 2418P9815 | [1] | TUBE | TUBE |
| 77. | 2418P9816 | [1] | TUBE | |
| 78. | 2418P9817 | [1] | TUBE | |
| 79. | 2418P9818 | [1] | TUBE | |
| 80. | 2418P9819 | [1] | TUBE | |
| 81. | 2418P9820 | [1] | TUBE | |
| 82. | 2418T10630 | [1] | TUBE | |
| 83. | 2418T10631 | [1] | TUBE | |
| 84. | 2418T10632 | [1] | TUBE | |
| 85. | 2418T10633 | [1] | TUBE | |
| 86. | 2418T10634 | [7] | TUBE | |
| 87. | ZX58N10080 | [18] | FLEXIBLE HOSE | KOB800mm Long (31-1/2 in) |
| 88. | ZX58N10100 | [2] | FLEXIBLE HOSE | KOB1000mm Long (39-3/8 in) |
| 89. | ZX58N10160 | [2] | HOSE,25.4mm ID x 1600mm L | KOB |
| 90. | ZX58N10120 | [2] | FLEXIBLE HOSE | KOB1200mm Long (47-1/4in) |
| 91. | 2436Z380 | [3] | VALVE | |
| 92. | ZF23R22000 | [4] | CONNFCTOR | |
| 93. | ZF23E22012 | [4] | HYD CONNECTOR | KOB3/4"PTxM30x1.50x45mm Long |
| 94. | ZF23E22008 | [2] | CONNFCTOR | |
| 95. | ZF23F22012 | [3] | HYD CONNECTOR | KOB |
| 96. | ZF23F22008 | [4] | TOOL | KOB |
| 97. | ZF33F22012 | [1] | ELBOW | KOB90 |
| 98. | ZD11G02500 | [2] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOB |
| 99. | ZD12P02240 | [8] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 100. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 101. | 2432T1596 | [2] | CLAMP | CLAMP |
| 102. | ZC36X22011 | [14] | CLAMP | KOBDouble Line -- 75x38x13mm (Ø24mm) |
| 103. | ZC26X22011 | [2] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 104. | 2416T7456 | [2] | BRACKET | |
| 105. | ZS13C12065 | [2] | SCREW | KOB Superseded by part number: ZS18C12065 |
| 107. | ZS13C10045 | [16] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 108. | ZS23C08025 | [8] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 109. | ZW22K08000 | [8] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 110. | 2420Z986 | [1] | PLUG | |
| 115. | 2420R349D21 | [2] | HOSE | HOSE |
| 116. | 2420R349D9 | [2] | HOSE ASSY | HOSE ASSY |
| 117. | 2420R349D3 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D390 |
| 118. | 2420R349D290 | [2] | HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm | KOB |
| 119. | 2420R349D24 | [2] | HOSE ASSY | HOSE ASSY |
| 120. | 2420R349D15 | [1] | HOSE | KOB Superseded by part number: 2420R349D090 |
| 121. | 2420R537D170 | [1] | HOSE,9.60mm ID x 1700mm L | KOB |
| 122. | ZX15K08210 | [1] | TUBE | KOB |
| 123. | ZX15K08040 | [2] | PLASTIC-RUBBER TUBE | KOB |
| 124. | 2432T1476 | [1] | CLAMP | KOB |
| 125. | 2416T3655 | [2] | CLAMP | KOB |
| 126. | ZC45X31014 | [5] | CLIP | KOBClamp -- ID 31mm Single Cable |
| 127. | ZC45X25011 | [2] | CLIP Clamp -- ID 25mm Single Cable | CLIP Clamp -- ID 25mm Single Cable |
| 129. | ZC47X10009 | [6] | CLIP | KOB Superseded by part number: ZC48X10009 |
| 130. | ZC45X10009 | [1] | CLIP | KOB Superseded by part number: ZC46X10009 |
| 131. | ZH31K08006 | [1] | ELBOW | KOB |
| 132. | ZH21K08006 | [2] | HYD CONNECTOR | KOB |
| 133. | ZH32Z04000 | [7] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 134. | ZH22Z04000 | [15] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 135. | ZF23E10004 | [2] | HYD CONNECTOR | KOB |
| 136. | ZH22Z06000 | [1] | CONNECTION | KOB |
| 137. | 2444Z2231 | [5] | CONNECTOR | |
| 138. | ZH51K08000 | [1] | TEE | KOB |
| 139. | ZS13C12020 | [5] | SCREW | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 140. | ZS13C08012 | [4] | SCREW | KOBM08x1.25x12mm Superseded by part number: ZS18C08012 |
| 141. | ZN12C06005 | [11] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 144. | ZW22X06000 | [11] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 145. | ZG91S02000 | [13] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 146. | 2432Z290 | [15] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 147. | 2418T10635 | [2] | TUBE | |
