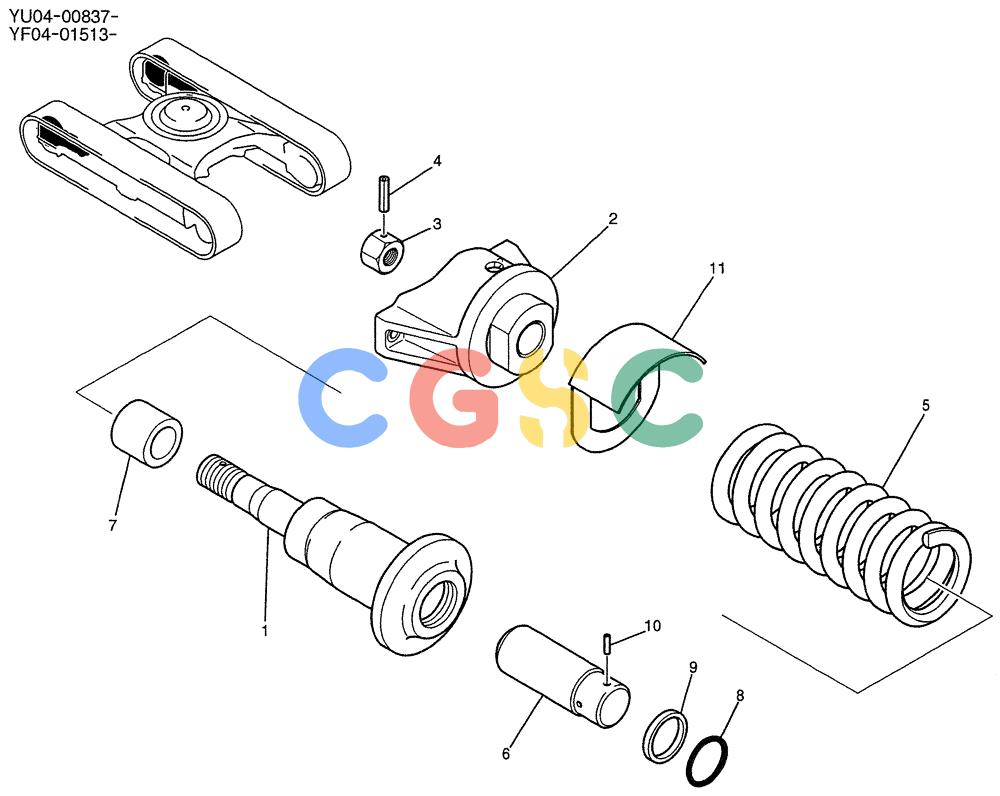

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (02-008) - IDLER ADJUST ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN70V00004F1 | [1] | KIT | KOBCYLINDER ASSY, GREASE, Serial Range: YU04-00837-YU04-01233 Superseded by part number: LQ70V00003P1 |
| 1. | YN70V00004F2 | [1] | LUBE NIPPLE | SMCYLINDER ASSY, GREASE, Start Serial: YU04-01234 Superseded by part number: LQ70V00003P1 |
| 2. | LQ54D01013P1 | [1] | U-BRACKET | KOB |
| 3. | LQ54D01005P1 | [1] | NUT | KOB |
| 4. | ZP26D08080 | [1] | PIN | KOBSPRING |
| 5. | YN54D01023P1 | [1] | SPRING | KOB |
| 6. | 2439P174 | [1] | PISTON | KOB |
| 7. | YN54D01024P1 | [1] | COLLAR CLAMP | KOB |
| 8. | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| 9. | 2445Z1034 | [1] | GASKET,90mm ID x 105mm OD x 10mm Thk | KOBOIL SEAL |
| 10. | 2419T4748 | [2] | PIN | KOB, Serial Range: YU04-00837-YU04-01233 Superseded by part number: LQ54D01023P1 |
| 10. | LQ54D01023P1 | [2] | PIN | SM, Start Serial: YU04-01234 |
| 11. | LQ54D01014P1 | [1] | GUARD | KOBCOVER |
