纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (02-009) - ROLLER ASSY, TRACK, P/N YF64D00002F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
740 次

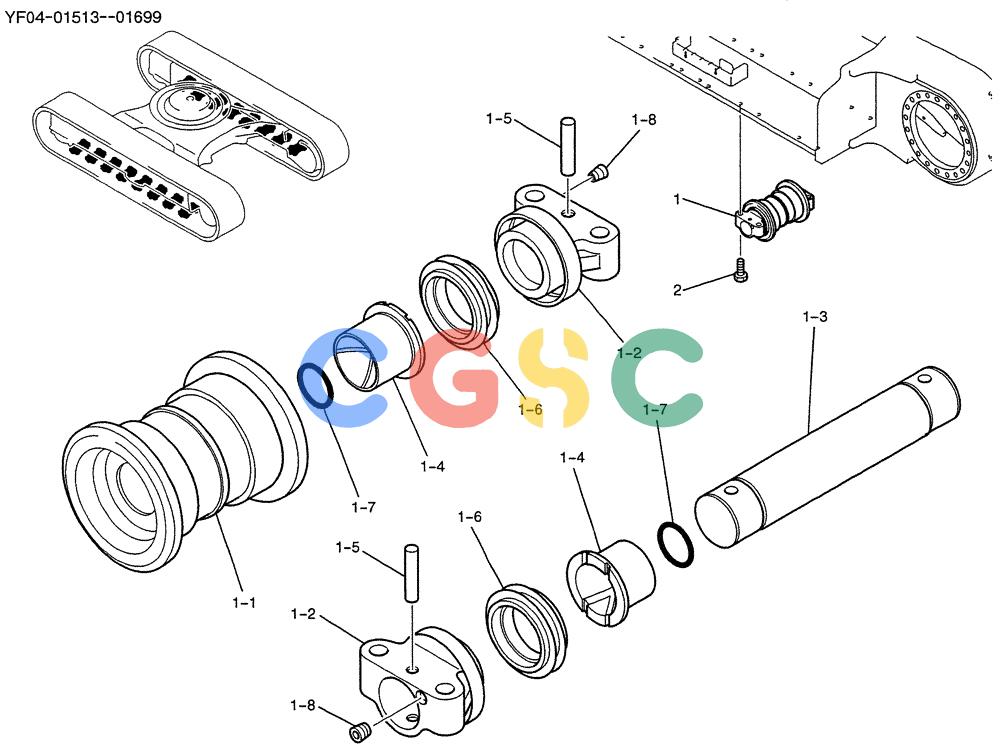

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YF64D00001F1 | [16] | ROLLER | KOBTRACK, LOW Superseded by part number: LQ64D00054F1 |
| 1-1. | YN64D01021P1 | [1] | ROLLER | KOB |
| 1-2. | YN64D01041P1 | [2] | COLLAR | KOB |
| 1-3. | YN64D01042P1 | [1] | SHAFT | KOB Superseded by part number: LQ64D01028P1 |
| 1-4. | 2405P489 | [2] | BUSHING,66mm ID x 87mm OD x 64.5mm L | KOB |
| 1-5. | YN64D01043P1 | [2] | PIN | KOB |
| 1-7. | ZD11G06000 | [2] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOB |
| 1-8. | ZE82T04000 | [2] | PLUG | KOB |
| 2. | 2420P1580D4 | [64] | BOLT,Hex, M18 x 1.5 x 80mm | KOBCAP |
