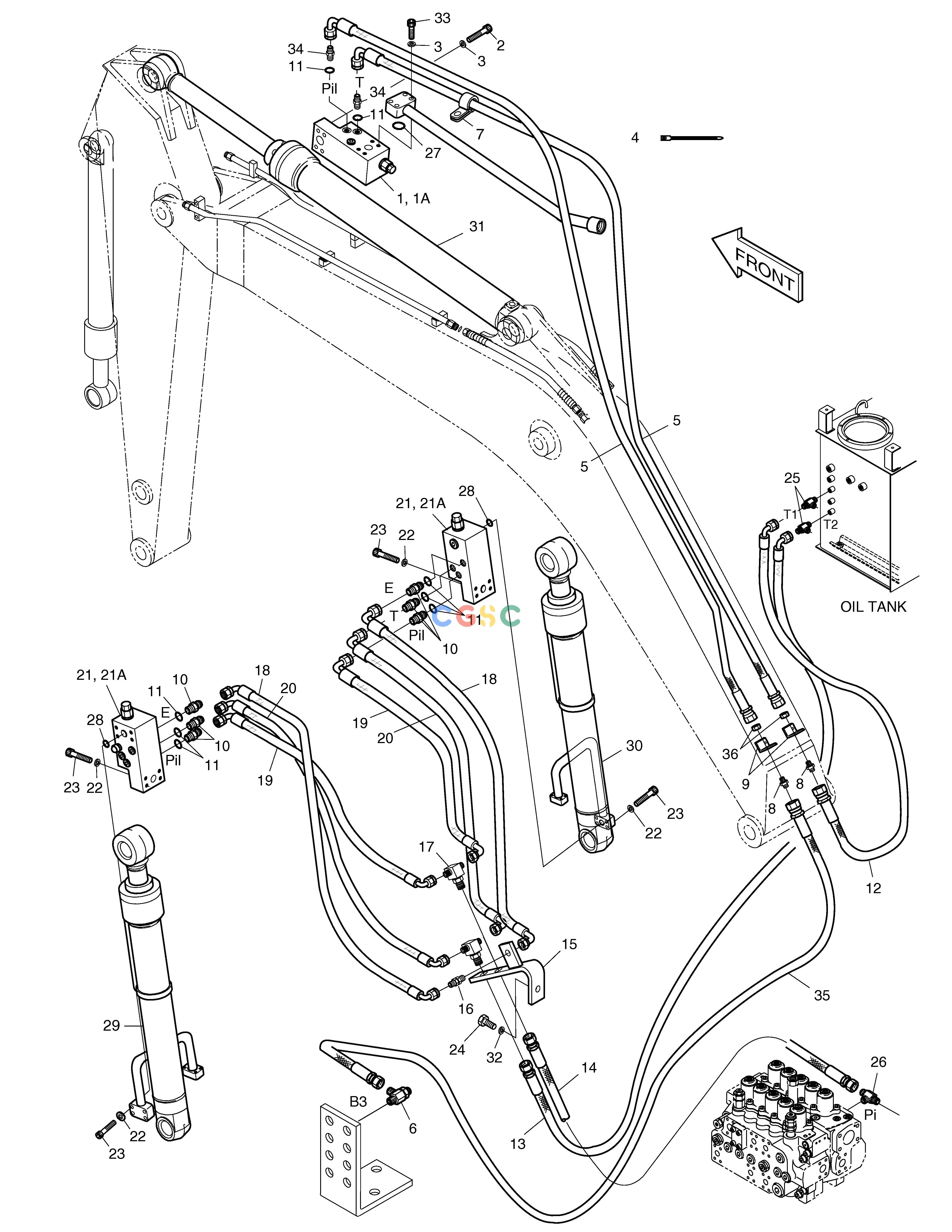

斗山零件查询LOCK VALVE PIPING-BOOM 5.9m SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00343
|
[-] |
LOCK VALVE PIPING
|
|
| 1. |
420-00004A
|
[1] |
VALVE;LOCK
|
|
| 10. |
2181-1126D38
|
[6] |
ADAPTER
|
|
| 11. |
S8000111
|
[8] |
O-RING
|
|
| 12. |
2184-1046D283
|
[1] |
HOSE PF3/8-2100L
|
|
| 13. |
2184-1046D284
|
[1] |
HOSE PF3/8-1800L
|
|
| 14. |
2184-1045D205
|
[1] |
HOSE PF3/8-1800L
|
|
| 15. |
197-00022
|
[1] |
SUPPORT
|
|
| 16. |
181-00020
|
[1] |
ADAPTER
|
|
| 17. |
181-00008
|
[2] |
TEE
|
|
| 18. |
2184-1076D147
|
[2] |
HOSE PF1/4-750L
|
|
| 19. |
2184-1062D84
|
[2] |
HOSE PF1/4-750L
|
|
| 1A. |
K9000999
|
[1] |
SEAL KIT
|
|
| 2. |
S2215761
|
[4] |
BOLT;SOCKET
|
S2215766
|
| 2. |
S2215766
|
[4] |
BOLT
|
|
| 20. |
2184-1062D85
|
[2] |
HOSE PF1/4-700L
|
|
| 21. |
420-00003A
|
[2] |
VALVE;LOCK
|
420-00226
|
| 21. |
420-00226
|
[2] |
VALVE;LOCK
|
|
| 21A. |
K9000998
|
[1] |
SEAL KIT
|
|
| 22. |
S5110611
|
[16] |
WASHER;SPRING M10
|
S5110613
|
| 22. |
S5110613
|
[16] |
WASHER;SPRING M10
|
|
| 23. |
S2212661
|
[16] |
BOLT;SOCKET M10X1.5X50
|
|
| 23. |
S2212766
|
[16] |
BOLT;SOCKET M10X1.5X55
|
|
| 24. |
S0561353
|
[1] |
BOLT M12X1.75X80
|
|
| 25. |
2181-2375D6
|
[2] |
TEE
|
|
| 26. |
2181-2281D21
|
[1] |
TEE
|
|
| 27. |
S8000341
|
[1] |
O-RING
|
|
| 28. |
S8000281
|
[2] |
O-RING
|
|
| 29. |
440-00186C
|
[1] |
CYLINDER;BOOM(L.H)
|
|
| 29. |
440-00186
|
[1] |
CYLINDER;BOOM(L.H)
|
440-00186A
|
| 29. |
440-00186A
|
[1] |
CYLINDER;BOOM(L.H)
|
440-00186B
|
| 29. |
440-00186B
|
[1] |
CYLINDER;BOOM(L.H)
|
440-00186C
|
| 3. |
S5110701
|
[8] |
WASHER;SPRING M12
|
S5110703
|
| 3. |
S5110703
|
[8] |
WASHER
|
|
| 30. |
440-00187
|
[1] |
CYLINDER;BOOM(R.H)
|
440-00187A
|
| 30. |
440-00187A
|
[1] |
CYLINDER;BOOM(R.H)
|
440-00187B
|
| 30. |
440-00187B
|
[1] |
CYLINDER;BOOM(R.H)
|
440-00187C
|
| 30. |
440-00187C
|
[1] |
CYLINDER;BOOM(R.H)
|
|
| 31. |
440-00188
|
[1] |
CYLINDER;ARM
|
440-00188A
|
| 31. |
440-00188A
|
[1] |
CYLINDER;ARM
|
|
| 32. |
S5102703
|
[1] |
WASHER
|
|
| 33. |
S2215861
|
[4] |
BOLT;SOCKET M12X1.75X60
|
S2215866
|
| 33. |
S2215866
|
[4] |
BOLT;SOCKET M12X1.75X60
|
|
| 34. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 35. |
2184-1045D215
|
[1] |
HOSE PF3/8-2100L
|
|
| 36. |
121-00010D1
|
[2] |
NUT
|
|
| 4. |
2124-1084D2
|
[25] |
CLIP;BAND
|
|
| 5. |
2184-1046D282
|
[2] |
HOSE PF1/4-5350L
|
|
| 6. |
181-00086D2
|
[1] |
TEE
|
|
| 7. |
2124-1353D19
|
[1] |
CLIP
|
|
| 8. |
181-00007
|
[2] |
ADAPTER
|
|
| 8. |
181-00078D5
|
[2] |
ADAPTER
|
|
| 9. |
197-00021
|
[2] |
BRACKET
|
|
