斗山零件查询MAIN PIPING-ROTATION & TILTING SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
932 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

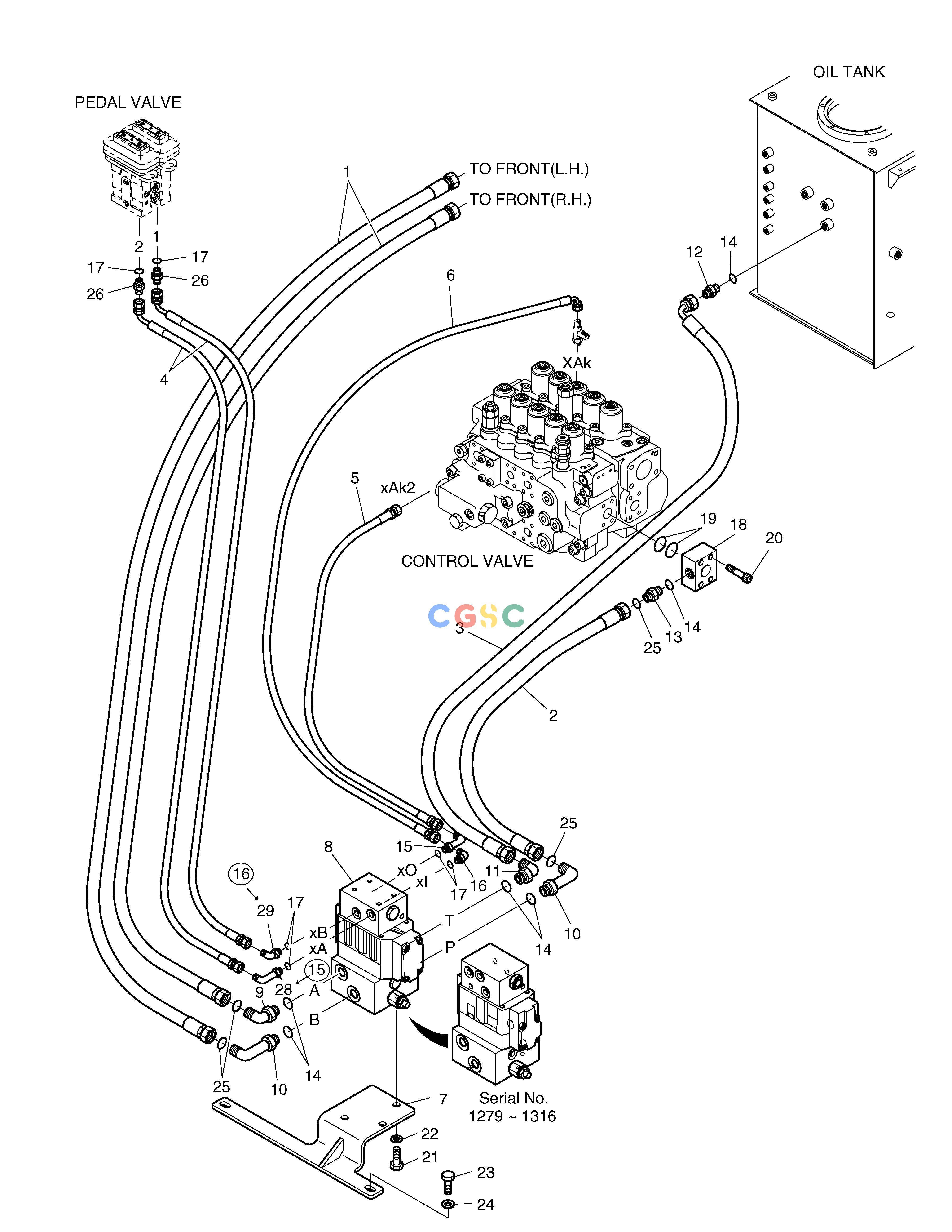

400-00747A
|
[-] |
MAIN PIPING-ROTATION & TILTING
|
|
| 1. |
DS2011303
|
[2] |
HOSE ORS1/2-4300L
|
|
| 10. |
2181-2815D11
|
[2] |
ELBOW
|
|
| 11. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 12. |
2181-1951D5
|
[1] |
TEE
|
|
| 13. |
2181-4133D37
|
[1] |
ADAPTER
|
|
| 14. |
S8000181
|
[6] |
O-RING
|
|
| 15. |
2181-1702D56
|
[2] |
ELBOW
|
|
| 15. |
2181-1702D56
|
[1] |
ELBOW
|
|
| 16. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 16. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 17. |
S8000111
|
[6] |
O-RING
|
|
| 18. |
423-00156
|
[1] |
BLOCK
|
|
| 18. |
423-00156A
|
[1] |
BLOCK
|
|
| 19. |
2180-1026D19
|
[2] |
O-RING
|
|
| 2. |
DS2011312
|
[1] |
HOSE ORS1/2-1800L
|
|
| 20. |
S2212866
|
[4] |
BOLT
|
|
| 20. |
S2212966
|
[4] |
BOLT;SOCKET M10X1.5X65
|
|
| 21. |
S0515253
|
[3] |
. BOLT
|
|
| 21. |
S0515053
|
[3] |
BOLT M12X1.75X25
|
|
| 22. |
S5102703
|
[3] |
WASHER
|
|
| 23. |
S0515353
|
[2] |
BOLT M12X1.75X35
|
|
| 24. |
2114-1058D30
|
[2] |
. WASHER
|
|
| 25. |
S8030081
|
[4] |
O-RING
|
|
| 26. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 26. |
2181-1126D89
|
[2] |
ADAPTER PFO1/4-PF3/8
|
|
| 27. |
2424-1140
|
[1] |
SPOOL;BC
|
|
| 28. |
DS2281093
|
[1] |
ELBOW;LONG
|
|
| 29. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 3. |
2184-1036D353
|
[1] |
HOSE PF1/2-2500L
|
|
| 4. |
DS2055651
|
[2] |
HOSE PF1/4-3650L
|
|
| 4. |
2184-1046D122
|
[2] |
HOSE-3700L
|
|
| 5. |
2184-1045D127
|
[1] |
HOSE PF1/4-2600L
|
|
| 6. |
2184-1046D177
|
[1] |
HOSE PF1/4-2300L
|
|
| 7. |
195-01929
|
[1] |
BRACKET;STAND
|
|
| 8. |
420-00322
|
[1] |
OPTION VALVE
|
420-00322B
|
| 8. |
420-00322B
|
[1] |
OPTION VALVE
|
420-00322C
|
| 8. |
420-00322C
|
[1] |
OPTION VALVE
|
|
| 9. |
2181-2815D3
|
[1] |
ELBOW
|
|
