斗山零件查询PEDAL INSTALL-ROTATION & TILTING SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

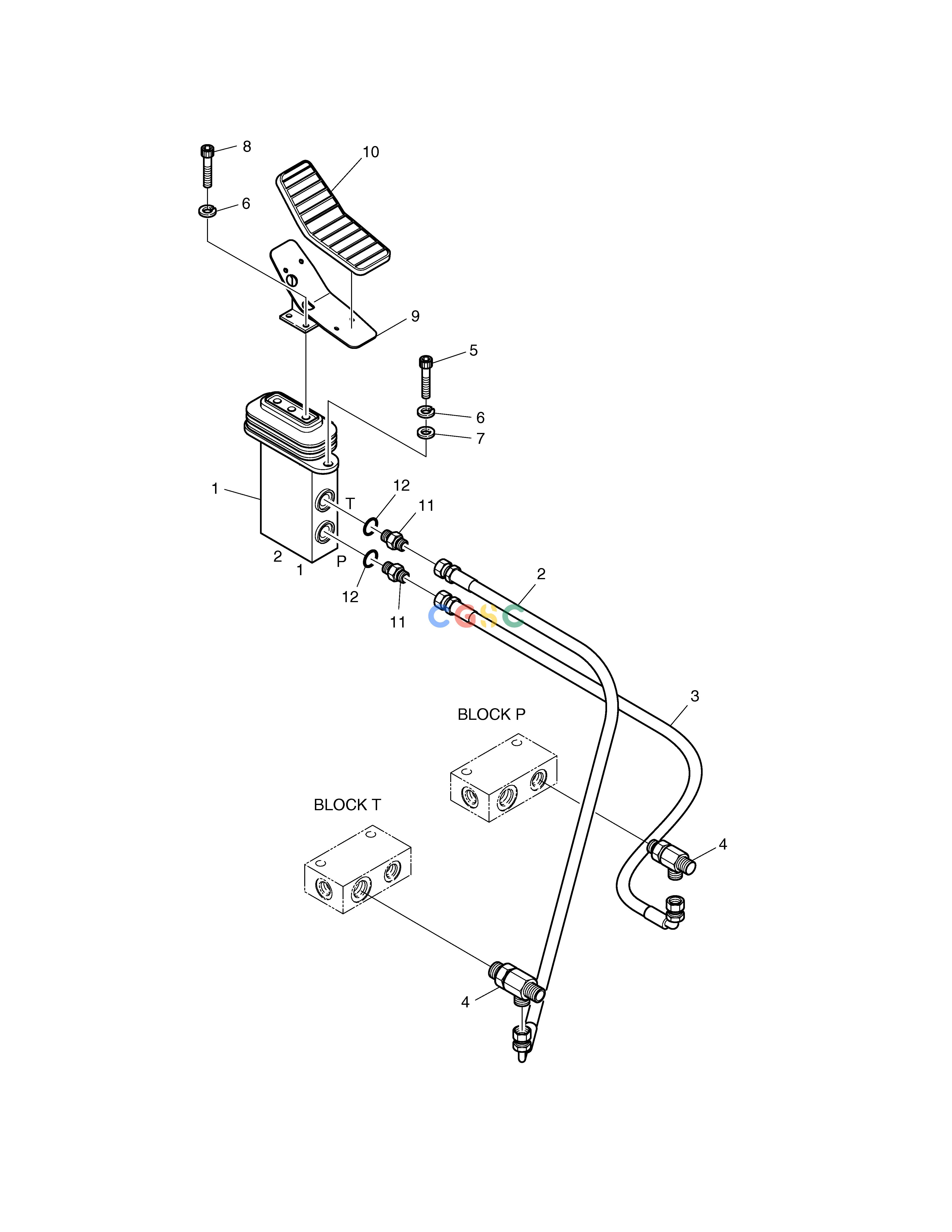

134-00024
|
[-] |
PEDAL INSTALL PIPING
|
|
| 1. |
420-00160
|
[1] |
VALVE;PEDAL
|
420-00347
|
| 1. |
420-00347
|
[1] |
VALVE;PEDAL
|
|
| 10. |
2161-2257
|
[1] |
RUBBER;PEDAL
|
|
| 11. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 12. |
S8000111
|
[2] |
O-RING
|
|
| 2. |
2184-1046D144
|
[1] |
HOSE PF1/4-630L
|
|
| 3. |
2184-1046D198
|
[1] |
HOSE PF1/4-400L
|
|
| 4. |
2181-1951D6
|
[2] |
TEE
|
|
| 5. |
S2212261
|
[2] |
SOCKET-HEAD BOLT
|
|
| 6. |
S5110601
|
[4] |
WASHER;SPRING M10
|
|
| 7. |
S5010613
|
[2] |
WASHER
|
|
| 8. |
S2211861
|
[2] |
BOLT;SOCKET M10X1.5X20
|
|
| 9. |
2197-1817
|
[1] |
BRACKET;PEDAL(R.H)
|
|
