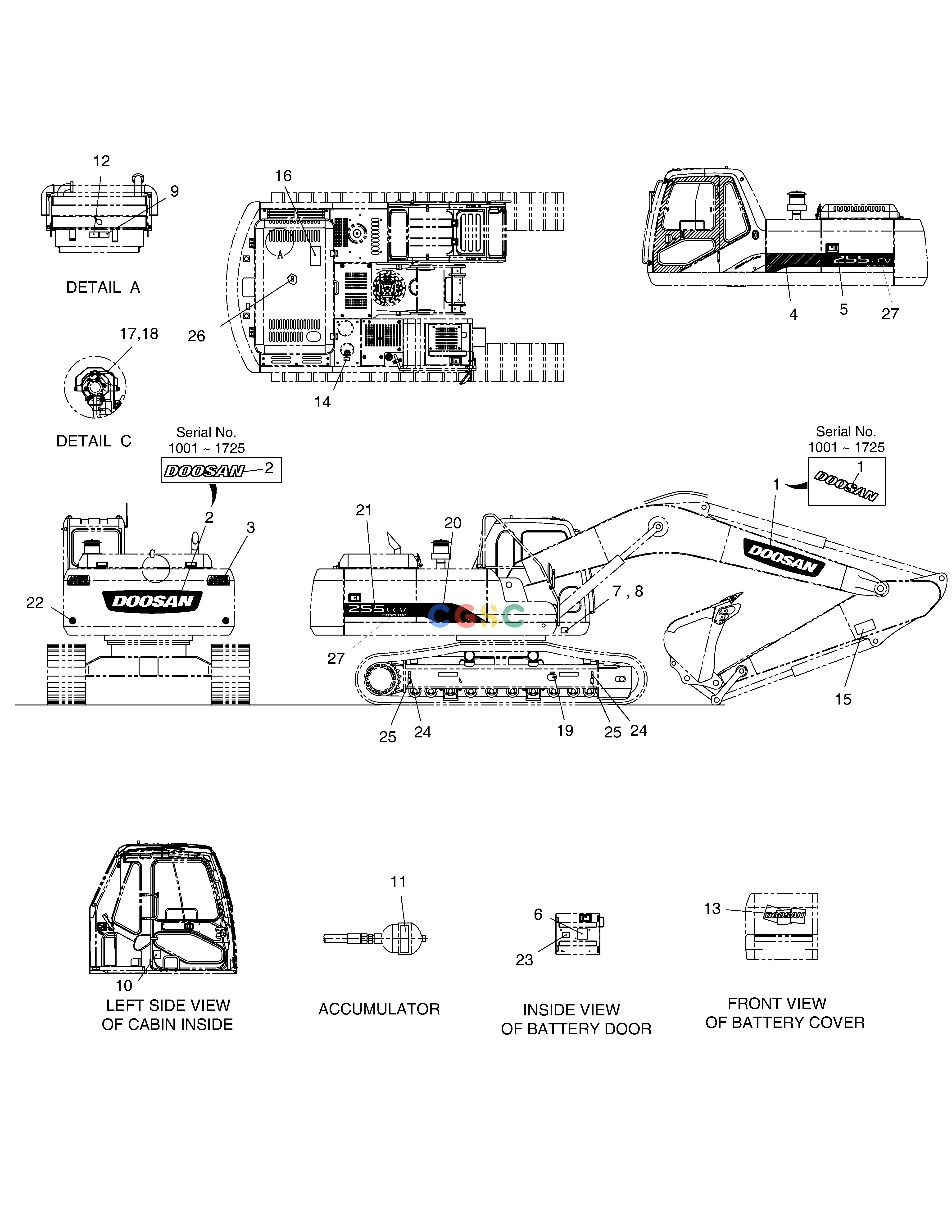

斗山零件查询NAME PLATE-ENGLISH SOLAR 255LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
977 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-01033C
|
[-] |
NAME PLATE ASS'Y-ENGLISH
|
|
| -. |
950209-00439
|
[-] |
|
|
| 1. |
K1011645D5
|
[2] |
PLATE;NAME(DOOSAN)
|
|
| 1. |
950205-02353
|
[2] |
|
|
| 10. |
2190-2556D107
|
[1] |
PLATE;NAME
|
|
| 11. |
190-00703
|
[1] |
PLATE;NAME
|
|
| 12. |
190-00692
|
[1] |
PLATE;NAME
|
|
| 13. |
K1011648
|
[1] |
PLATE;NAME
|
|
| 14. |
190-00691
|
[1] |
PLATE;NAME(HOT OIL)
|
|
| 14. |
190-00691A
|
[1] |
PLATE;NAME
|
|
| 15. |
190-00652
|
[2] |
PLATE;NAME
|
|
| 16. |
190-00522
|
[1] |
PLATE;NAME
|
190-00522A
|
| 16. |
190-00522A
|
[1] |
PLATE;NAME
|
|
| 17. |
190-00648A
|
[1] |
PLATE;NAME
|
|
| 18. |
2122-1002D4
|
[4] |
RIVET
|
|
| 19. |
190-00122
|
[2] |
PLATE;NAME
|
|
| 2. |
K1011645D1
|
[1] |
DECAL
|
|
| 2. |
950205-02354
|
[1] |
|
|
| 20. |
190-00965
|
[1] |
PLATE;NAME
|
|
| 21. |
190-00963
|
[1] |
PLATE;NAME
|
|
| 22. |
190-00647
|
[2] |
PLATE;NAME
|
|
| 23. |
2190-2533A
|
[1] |
PLATE;NAME
|
|
| 24. |
2190-2476
|
[4] |
PLATE;NAME(TIE DOWN)
|
|
| 25. |
2190-2477
|
[4] |
PLATE;NAME(LIFTING)
|
K1042074
|
| 25. |
K1042074
|
[4] |
PLATE;NAME
|
|
| 26. |
190-00798AD26
|
[1] |
PLATE;NAME
|
|
| 27. |
190-01162
|
[2] |
PLATE;NAME(NARROW)
|
|
| 3. |
2190-3379
|
[2] |
PLATE;NAME
|
2190-3379A
|
| 3. |
2190-3379A
|
[2] |
PLATE;NAME
|
|
| 4. |
190-00964
|
[1] |
PLATE;NAME
|
|
| 5. |
190-00962
|
[1] |
PLATE;NAME
|
|
| 6. |
190-01034
|
[1] |
PLATE;NAME
|
190-01034A
|
| 6. |
190-01034A
|
[1] |
PLATE;NAME
|
190-01034B
|
| 6. |
190-01034B
|
[1] |
PLATE;NAME
|
|
| 7. |
K1011647A
|
[1] |
PLATE;NAME
|
|
| 7. |
950209-02977
|
[1] |
|
|
| 8. |
2122-1002D2
|
[4] |
RIVET
|
|
| 9. |
190-00694
|
[1] |
PLATE;NAME
|
|
