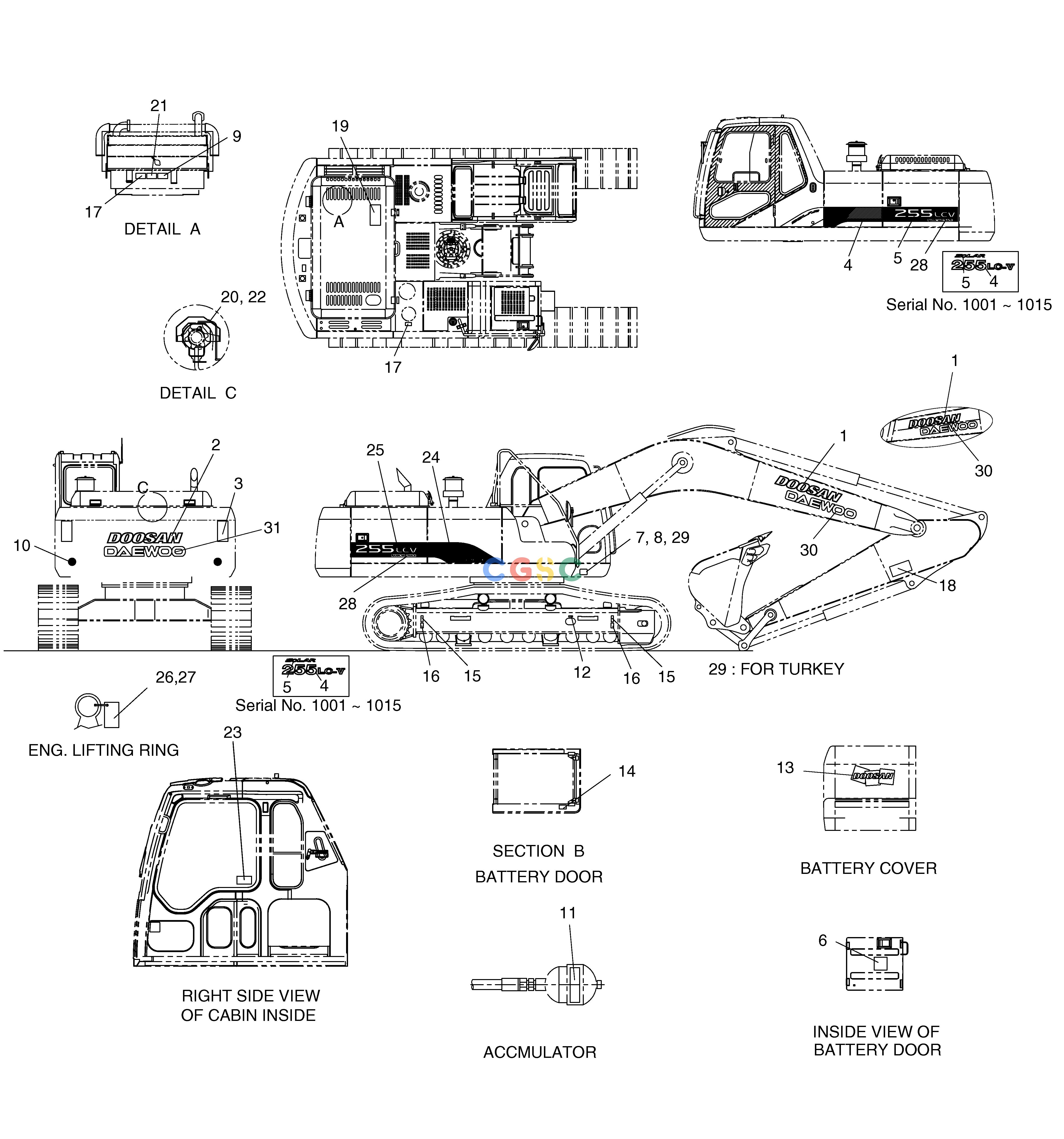

斗山零件查询NAME PLATE-EUROPE SOLAR 255LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-00824B
|
[-] |
NAME PLATE ASS'Y-EUROPE
|
|
| 1. |
K1011645D5
|
[2] |
PLATE;NAME(DOOSAN)
|
|
| 10. |
190-00647
|
[2] |
PLATE;NAME
|
|
| 11. |
190-00099
|
[1] |
PLATE;NAME
|
|
| 12. |
190-00122
|
[2] |
PLATE;NAME
|
|
| 13. |
K1011648
|
[1] |
PLATE;NAME
|
|
| 14. |
190-00100
|
[1] |
PLATE;NAME(BATTERY)
|
|
| 15. |
2190-2476
|
[4] |
PLATE;NAME(TIE DOWN)
|
|
| 16. |
2190-2477
|
[4] |
PLATE;NAME(LIFTING)
|
|
| 17. |
190-00097
|
[2] |
NAME PLATE
|
|
| 18. |
190-00652
|
[2] |
PLATE;NAME
|
|
| 19. |
190-00522
|
[1] |
PLATE;NAME
|
|
| 2. |
K1011645D1
|
[1] |
DECAL
|
|
| 20. |
190-00648A
|
[1] |
PLATE;NAME
|
|
| 21. |
190-00557
|
[1] |
PLATE;NAME
|
|
| 22. |
2122-1002D4
|
[4] |
RIVET
|
|
| 23. |
190-00730D17
|
[1] |
PLATE;NAME(SOUND POWER)
|
190-01059D16
|
| 23. |
190-01059D16
|
[1] |
PLATE;NAME
|
190-01059D14
|
| 23. |
190-01059D14
|
[1] |
PLATE;NAME
|
|
| 24. |
190-00965
|
[1] |
PLATE;NAME
|
|
| 25. |
190-00963
|
[1] |
PLATE;NAME
|
|
| 26. |
190-00509AD14
|
[1] |
PLATE;NAME
|
|
| 27. |
2124-1622D1
|
[1] |
CLIP,BAND
|
|
| 28. |
190-01162
|
[2] |
PLATE;NAME(NARROW)
|
|
| 29. |
K1012205
|
[1] |
PLATE;NAME
|
|
| 3. |
190-00090
|
[2] |
PLATE;NAME
|
|
| 30. |
K1012470D11
|
[2] |
PLATE;NAME(DAEWOO)
|
|
| 31. |
K1012470D4
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 4. |
190-00823
|
[2] |
PLATE;NAME(255LC-V)
|
|
| 4. |
190-00964
|
[1] |
PLATE;NAME
|
|
| 5. |
2190-3332
|
[2] |
PLATE;NAME(SOLAR)
|
|
| 5. |
190-00962
|
[1] |
PLATE;NAME
|
|
| 6. |
950205-05104
|
[1] |
|
|
| 6. |
190-00814
|
[1] |
PLATE;NAME
|
190-00814A
|
| 6. |
190-00814A
|
[1] |
PLATE;NAME
|
950205-05104
|
| 7. |
K1012204
|
[1] |
PLATE;NAME
|
|
| 8. |
2122-1002D2
|
[4] |
RIVET
|
|
| 9. |
190-00095
|
[1] |
PLATE;NAME
|
|
