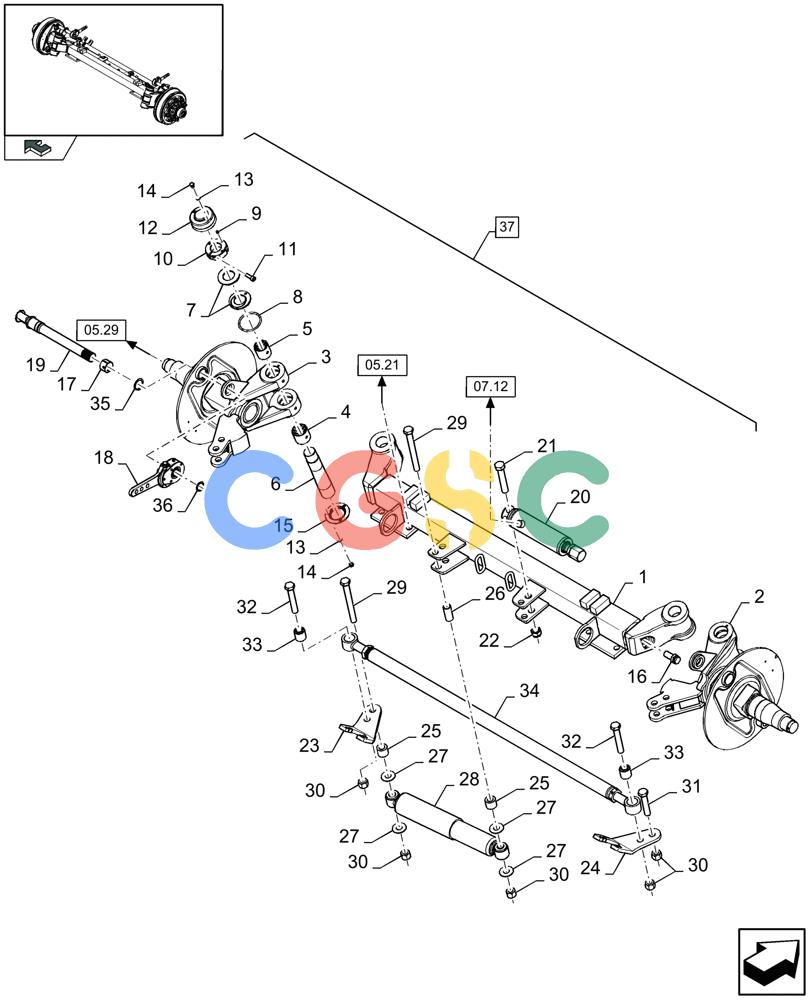

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (05.28[01]) - LARGE STEERED TANDEM AXLE, PNEUMATIC BRAKE, REAR, CENTRE - NOT FOR NA - D800 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84226721
|
[1] |
AXLE
|
ZED
|
| 1. |
84226375
|
[1] |
AXLE
|
ZED
|
| 2. |
84226717
|
[1] |
AXLE
|
ZED
|
| 3. |
84226718
|
[1] |
AXLE
|
ZED
|
| 4. |
84216293
|
[2] |
BUSHING
|
ZED
|
| 5. |
84216291
|
[2] |
BUSHING
|
ZED
|
| 6. |
87747217
|
[2] |
SHAFT
|
ZED
|
| 7. |
84216296
|
[4] |
WASHER
|
ZED
|
| 8. |
84216320
|
[2] |
O-RING
|
ZED
|
| 9. |
84025751
|
[4] |
LOCK PIN,M6 x 12, Slotted
|
ZED
|
| 10. |
84215201
|
[2] |
RING NUT
|
ZED
|
| 11. |
300442
|
[2] |
HEX SOC SCREW,M10 x 30mm, Cl 8.8
|
GI
Superseded by part number: 87016471
|
| 12. |
84215199
|
[2] |
CAP
|
ZED
|
| 13. |
80681
|
[10] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 14. |
336199
|
[10] |
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 16043024
|
| 15. |
84215200
|
[2] |
CAP
|
ZED
|
| 16. |
84215203
|
[2] |
SPECIAL BOLT
|
ZED
|
| 17. |
84014235
|
[2] |
SLEEVE
|
ZED
|
| 18. |
84213937
|
[2] |
LEVER
|
ZED
, Serial Range: -C859
|
| 18. |
84301463
|
[2] |
LEVER
|
PLO
, Start Serial: D860
|
| 18. |
84100527
|
[2] |
LEVER
|
ZED
, Start Serial: D860
|
| 19. |
84226720
|
[2] |
CAMSHAFT
|
ZED
|
| 20. |
84100596
|
[2] |
STEERING CYLINDER
|
ZED
|
| 21. |
84100597
|
[2] |
SCREW
|
ZED
|
| 22. |
84100598
|
[2] |
LOCK NUT
|
ZED
|
| 23. |
84215320
|
[1] |
SUPPORT
|
ZED
|
| 24. |
84215321
|
[1] |
SUPPORT
|
ZED
|
| 25. |
84100593
|
[2] |
BUSHING
|
ZED
|
| 26. |
84100595
|
[1] |
BUSHING
|
ZED
|
| 27. |
84100594
|
[4] |
WASHER
|
ZED
|
| 28. |
84100592
|
[1] |
SHOCK ABSORBER
|
ZED
|
| 29. |
380422
|
[2] |
BOLT,Hex, M20 x 2.5 x 190mm, Cl 8.8
|
NH
|
| 30. |
412180
|
[5] |
NUT,M20 x 2.5, Cl 8
|
ZED
Superseded by part number: 9672396
|
| 31. |
395528
|
[1] |
BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8
|
NH
|
| 32. |
43188
|
[2] |
SCREW,Hex, M20 x 120mm, Cl 8.8
|
NH
Superseded by part number: 126699A1, 126699A1, 80043188
|
| 33. |
84100591
|
[2] |
SILENTBLOC
|
ZED
|
| 34. |
84197118
|
[1] |
BAR
|
ZED
Superseded by part number: 47404092
|
| 34. |
84197109
|
[1] |
BAR
|
ZED
|
| 35. |
300632
|
[2] |
SNAP RING,M38, External
|
ZED
Superseded by part number: 11068676
|
| 36. |
370003
|
[2] |
SNAP RING,M30, External
|
NH
|
| 37. |
84221817
|
[1] |
REAR AXLE
|
ZED
(1 TO 36, FIG 05.29)
|
| 37. |
84221815
|
[1] |
REAR AXLE
|
ZED
(1 TO 36, FIG 05.29)
|
