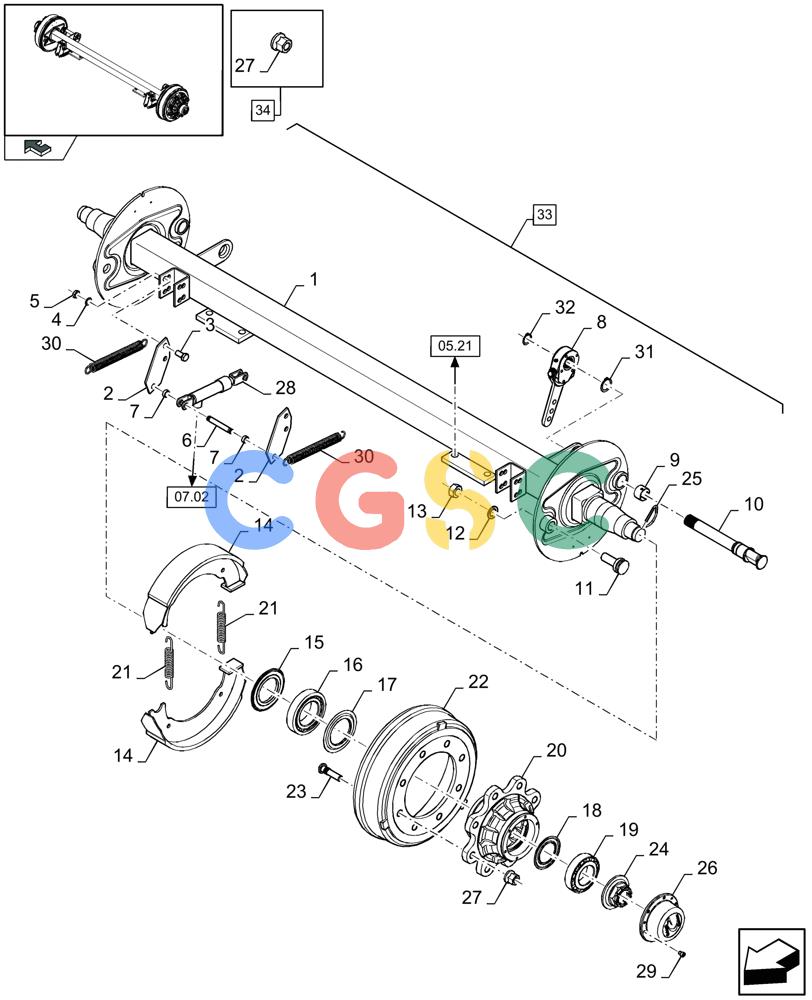

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (05.30[01]) - LARGE STEERED TANDEM AXLE, HYDRAULIC BRAKE, FRONT - NOT FOR NA - D800 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
974 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84226376
|
[1] |
AXLE
|
ZED
|
| 1. |
84214086
|
[1] |
AXLE
|
ZED
|
| 2. |
84100491
|
[4] |
SUPPORT
|
ZED
|
| 3. |
86509597
|
[8] |
BOLT,Hex, M30 x 14mm, Cl 8.8
|
NH
|
| 4. |
140047
|
[8] |
LOCK WASHER
|
ZED
Superseded by part number: 140047F, 140047F, 80140047
|
| 5. |
100065
|
[8] |
JAM NUT,M14 x 1.5, Cl 8
|
ZED
Superseded by part number: 80100065
|
| 6. |
84014244
|
[4] |
PIN
|
ZED
|
| 7. |
84807633
|
[4] |
SPACER
|
ZED
|
| 8. |
84213937
|
[2] |
LEVER
|
ZED
, Serial Range: -C859
|
| 8. |
84214365
|
[2] |
LEVER
|
ZED
, Start Serial: D860
|
| 9. |
84014235
|
[2] |
SLEEVE
|
ZED
|
| 10. |
84215236
|
[2] |
CAMSHAFT
|
ZED
|
| 11. |
84212709
|
[2] |
PIN
|
ZED
|
| 12. |
84220999
|
[2] |
LOCK WASHER
|
ZED
|
| 13. |
100024
|
[2] |
NUT,M24 x 1.5, Cl 8
|
MKT
|
| 14. |
87612526
|
[4] |
BRAKE SHOE
|
ZED
|
| 15. |
84807629
|
[2] |
SEALING RING
|
ZED
|
| 16. |
84041878
|
[2] |
TAPERED BEARING
|
ZED
Superseded by part number: 9832270
|
| 17. |
84100478
|
[2] |
RING
|
ZED
|
| 18. |
84041877
|
[2] |
SEALING RING
|
ZED
SEALRING
|
| 19. |
84041879
|
[2] |
TAPERED BEARING
|
ZED
|
| 20. |
87693636
|
[2] |
HUB
|
ZED
|
| 21. |
84212731
|
[4] |
BRAKE SPRING
|
ZED
|
| 22. |
84043371
|
[2] |
DRUM
|
ZED
|
| 23. |
84014229
|
[16] |
BOLT
|
ZED
Superseded by part number: 87472615
|
| 24. |
84100479
|
[2] |
NUT
|
ZED
|
| 25. |
84212727
|
[2] |
COTTER PIN
|
ZED
|
| 26. |
84100510
|
[2] |
COVER
|
ZED
|
| 27. |
84045545
|
[16] |
WHEEL NUT
|
ZED
, Serial Range: -C859 Superseded by part number: 84288019
|
| 27. |
84288019
|
[16] |
WHEEL NUT
|
PLO
, Start Serial: D860
|
| 28. |
84014242
|
[2] |
CYLINDER
|
ZED
|
| 29. |
14301931
|
[12] |
HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd
|
LEC
|
| 30. |
84014241
|
[4] |
SPRING
|
ZED
|
| 31. |
300632
|
[2] |
SNAP RING,M38, External
|
ZED
Superseded by part number: 11068676
|
| 32. |
370003
|
[2] |
SNAP RING,M30, External
|
NH
|
| 33. |
84221809
|
[1] |
FRONT AXLE
|
ZED
(1 TO 32)
|
| 33. |
84221807
|
[1] |
FRONT AXLE
|
ZED
(1 TO 32)
|
| 34. |
84288018
|
[1] |
KIT
|
PLO
(27), (SET OF 16)
|
