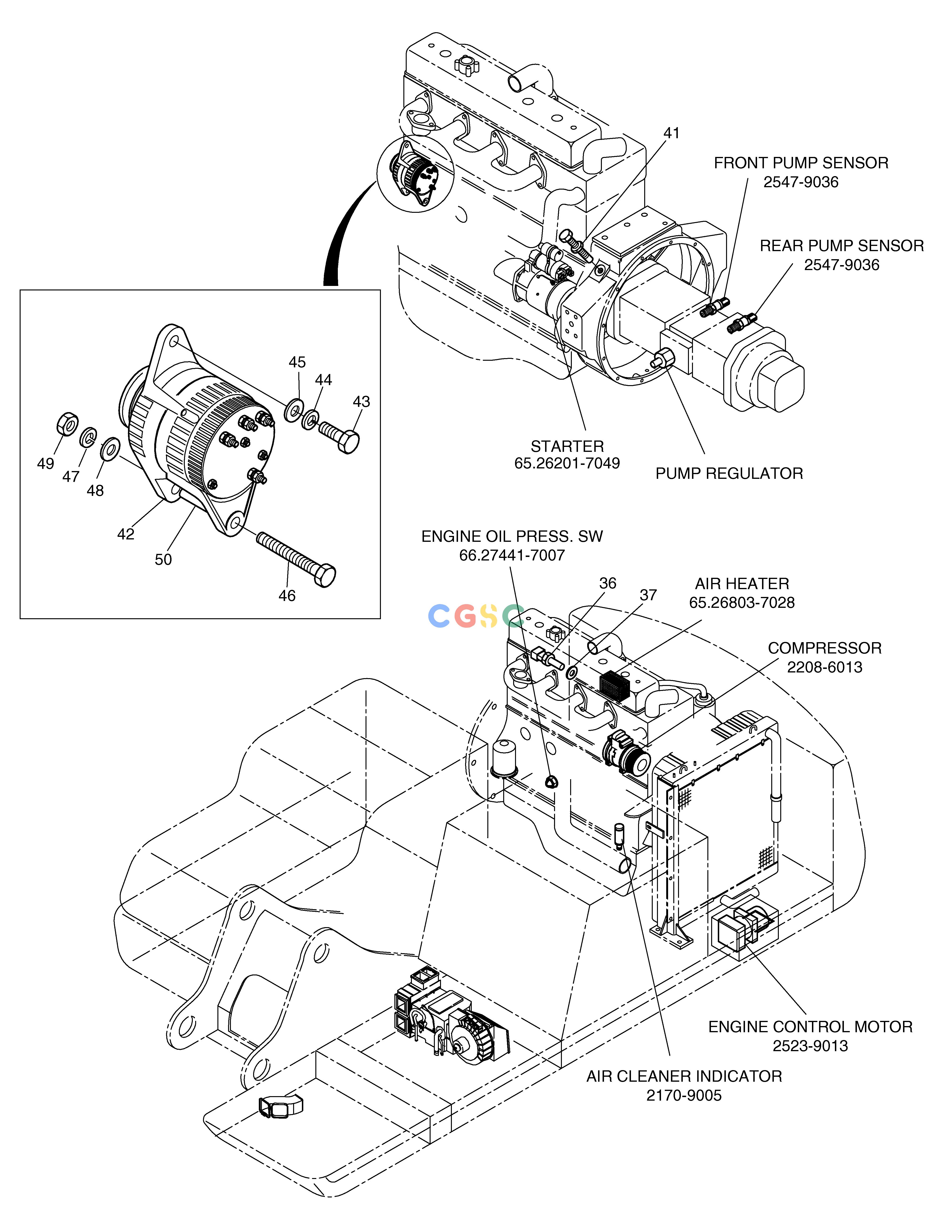

斗山零件查询ELECTRIC PARTS(5)-ENGINE SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1167
|
[-] |
ELECTRIC PARTS
|
|
| 36. |
2547-9038A
|
[1] |
SENSOR;WATER TEMP
|
2547-9038B
|
| 36. |
2547-9038B
|
[1] |
SENSOR,WATER TEMP
|
|
| 37. |
S8180251
|
[1] |
PACKING
|
|
| 41. |
2547-1015
|
[1] |
SENSOR;ENG SPEED
|
|
| 42. |
2502-6011
|
[1] |
ALTERNATOR
|
|
| 42. |
2502-9009
|
[1] |
ALTERNATOR
|
|
| 43. |
S0760853
|
[1] |
BOLT
|
|
| 43. |
S0786653
|
[1] |
BOLT M12X1.5X55
|
|
| 44. |
S5102703
|
[1] |
WASHER
|
|
| 45. |
2114-1058D54
|
[1] |
WASHER
|
|
| 46. |
S0562553
|
[1] |
BOLT M12X1.75X150
|
S0562653
|
| 46. |
S0562653
|
[1] |
BOLT
|
|
| 47. |
S5102703
|
[1] |
WASHER
|
|
| 48. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 49. |
S4012733
|
[1] |
NUT
|
|
| 50. |
2114-1183D10
|
[1] |
COLLAR
|
|
