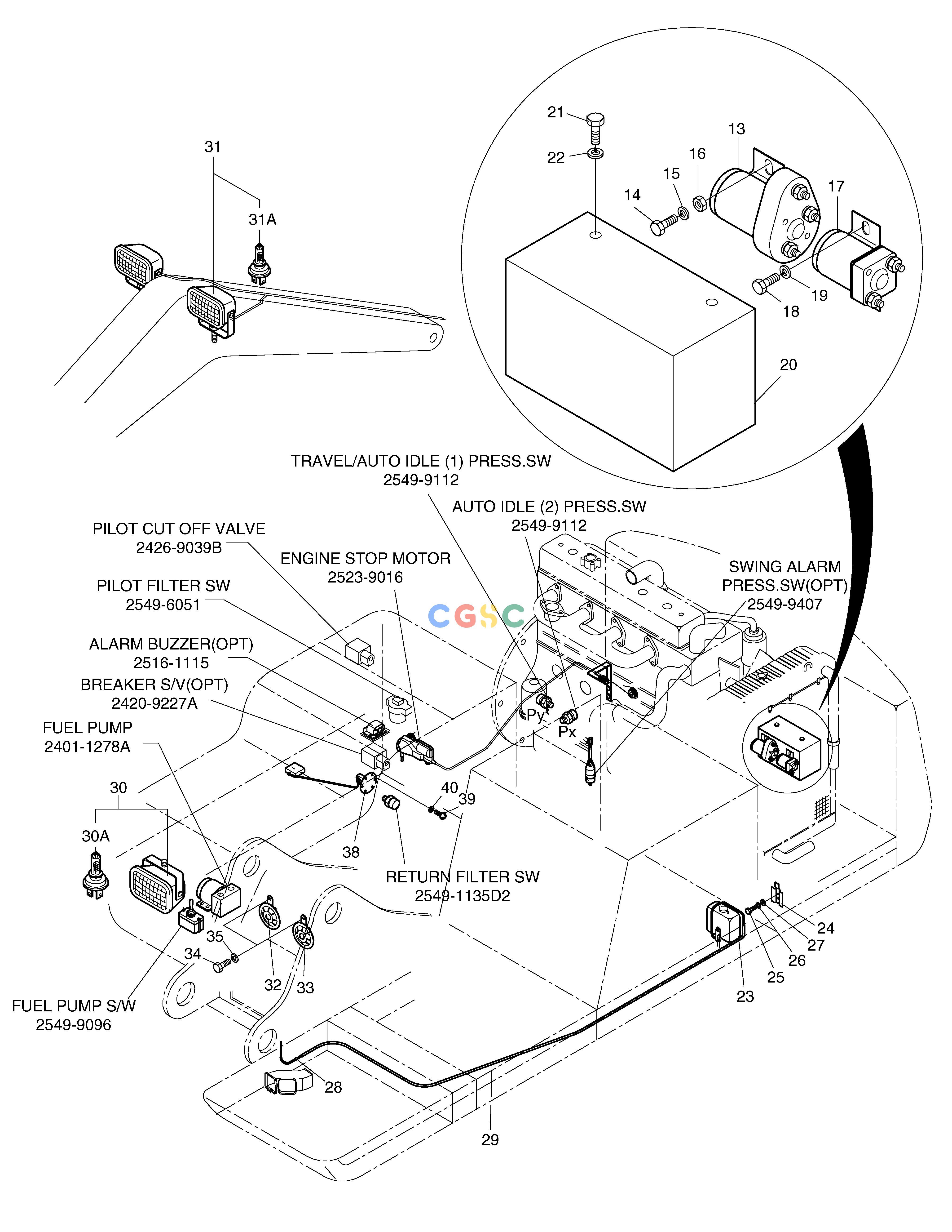

斗山零件查询ELECTRIC PARTS(6)-RELATED PARTS SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
875 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1167
|
[-] |
ELECTRIC PARTS
|
|
| 13. |
2544-9015
|
[1] |
RELAY;PREHEAT
|
2544-6020
|
| 13. |
2544-6020
|
[1] |
RELAY;PREHEAT
|
|
| 14. |
S0504453
|
[2] |
BOLT
|
|
| 15. |
S5102303
|
[4] |
. WASHER
|
|
| 16. |
S4012333
|
[2] |
NUT
|
|
| 17. |
2544-1009A
|
[1] |
RELAY;STARTER
|
|
| 17. |
2544-1022
|
[1] |
RELAY;STARTER
|
|
| 18. |
S0504453
|
[2] |
BOLT
|
|
| 19. |
S5102303
|
[2] |
. WASHER
|
|
| 20. |
2403-1060
|
[1] |
COVER;RELAY
|
|
| 21. |
S0504453
|
[4] |
BOLT
|
|
| 22. |
S5102303
|
[4] |
. WASHER
|
|
| 23. |
2554-9005A
|
[1] |
WINDOW-WASHER
|
|
| 24. |
2195-1534
|
[1] |
BRACKET
|
|
| 25. |
S0504453
|
[2] |
BOLT
|
|
| 26. |
S5102303
|
[2] |
. WASHER
|
|
| 27. |
S5010313
|
[2] |
WASHER
|
|
| 28. |
2415-1018
|
[1] |
ADAPTER
|
|
| 29. |
2185-1681D1
|
[1] |
TUBE;CORRUGATE
|
|
| 29. |
2185-1681D4
|
[1] |
TUBE;CORRUGATE
|
|
| 30. |
2534-1160
|
[1] |
LAMP;WORKING
|
|
| 30A. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 31. |
2534-1160
|
[2] |
LAMP;WORKING
|
|
| 31A. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 32. |
2516-9015
|
[1] |
HORN(H.F)
|
|
| 32. |
2516-9018
|
[1] |
HORN(H.F)
|
|
| 32. |
516-00014
|
[1] |
HORN;HIGH
|
|
| 33. |
2516-9016
|
[1] |
HORN(L.F)
|
|
| 33. |
2516-9019
|
[1] |
HORN(L.F)
|
|
| 33. |
516-00015
|
[1] |
HORN;LOW
|
|
| 34. |
S0508653
|
[2] |
BOLT
|
|
| 35. |
S5102503
|
[2] |
. WASHER
|
|
| 38. |
2547-9035
|
[1] |
SENSOR;FUEL
|
2547-9035A
|
| 38. |
2547-9035A
|
[1] |
SENSOR;FUEL
|
|
| 39. |
S3450833
|
[6] |
BOLT
|
|
| 40. |
S5100203
|
[6] |
WASHER
|
|
