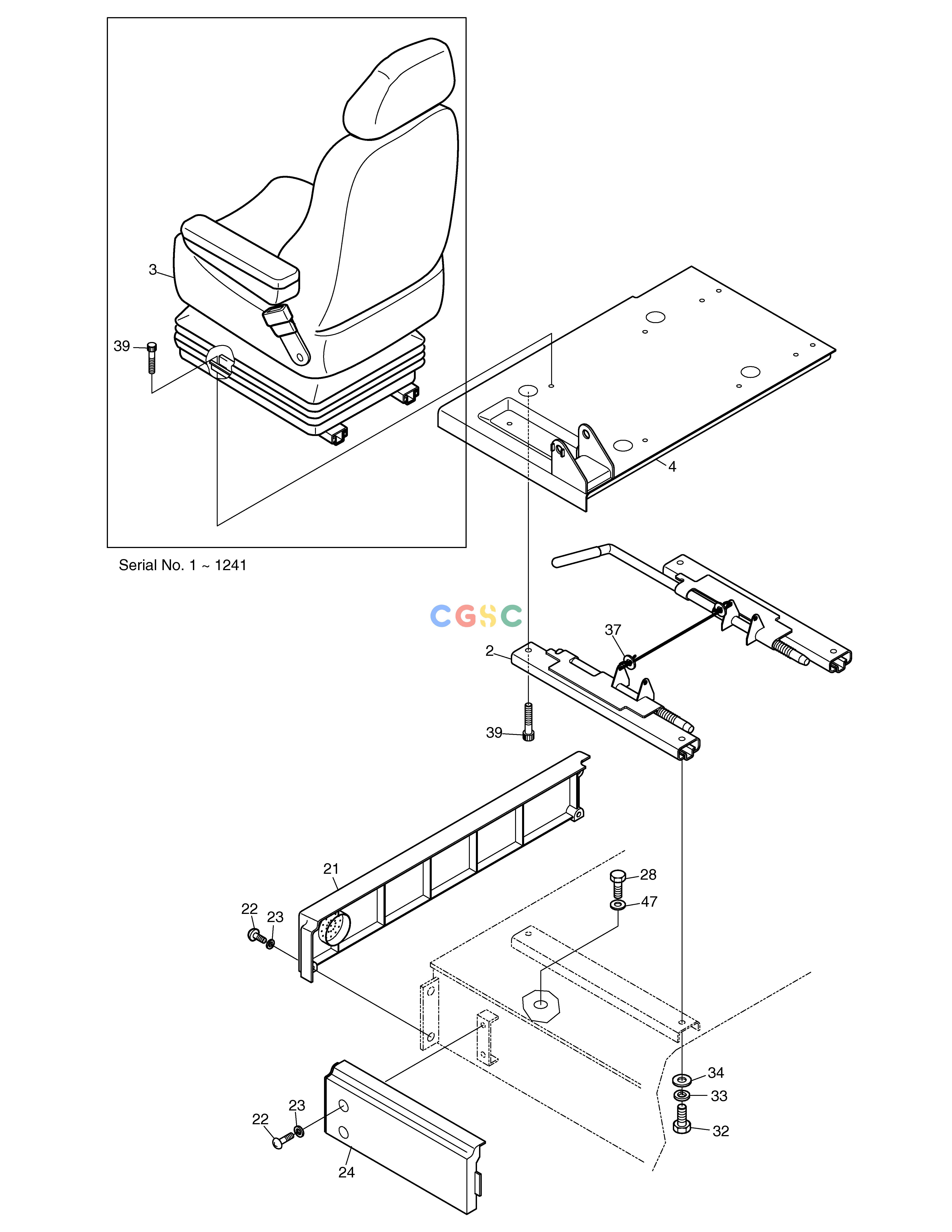

斗山零件查询SEAT & ELECTRIC BOX SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2197-1825F2B
|
[-] |
CONTROL STAND ASS'Y
|
|
| -. |
2197-1825F2C
|
[-] |
CONTROL STAND ASS'Y
|
|
| -. |
2197-1825F2E
|
[-] |
CONTROL STAND ASS'Y
|
|
| -. |
2197-1825F2H
|
[-] |
CONTROL STAND ASS'Y
|
|
| -. |
2197-1825F2K
|
[-] |
CONTROL STAND ASS'Y
|
|
| 2. |
2194-9005A
|
[1] |
RAIL;SEAT
|
2194-9005B
|
| 2. |
2194-9005B
|
[1] |
RAIL;SEAT
|
2194-9005C
|
| 2. |
2194-9005C
|
[1] |
RAIL;SEAT
|
|
| 21. |
2621-3743
|
[1] |
COVER;BOX(FRONT)
|
|
| 22. |
2120-2166D7
|
[6] |
SCREW
|
|
| 23. |
2114-1898D3
|
[6] |
WASHER
|
|
| 24. |
2621-3870
|
[1] |
COVER;BOX(LH)
|
|
| 28. |
S0514853
|
[4] |
BOLT
|
|
| 3. |
2901-9026
|
[1] |
SEAT
|
|
| 3. |
2901-9034
|
[1] |
SEAT
|
|
| 32. |
2120-2166D5
|
[4] |
BOLT
|
|
| 33. |
S5102503
|
[4] |
. WASHER
|
|
| 34. |
S5020513
|
[4] |
WASHER
|
|
| 37. |
2114-1898D4
|
[2] |
WASHER
|
|
| 39. |
S2208761
|
[8] |
BOLT;SOCKET M8X1.25X18
|
|
| 39. |
S2208761
|
[4] |
BOLT;SOCKET M8X1.25X18
|
|
| 4. |
2901-1078B
|
[1] |
SEAT PLATE ASS'Y
|
|
| 4. |
2901-1078C
|
[1] |
SEAT PLATE ASS'Y
|
2901-1078E
|
| 4. |
2901-1078E
|
[1] |
SEAT PLATE ASS'Y
|
|
| 47. |
2114-1058D46
|
[4] |
WASHER
|
|
