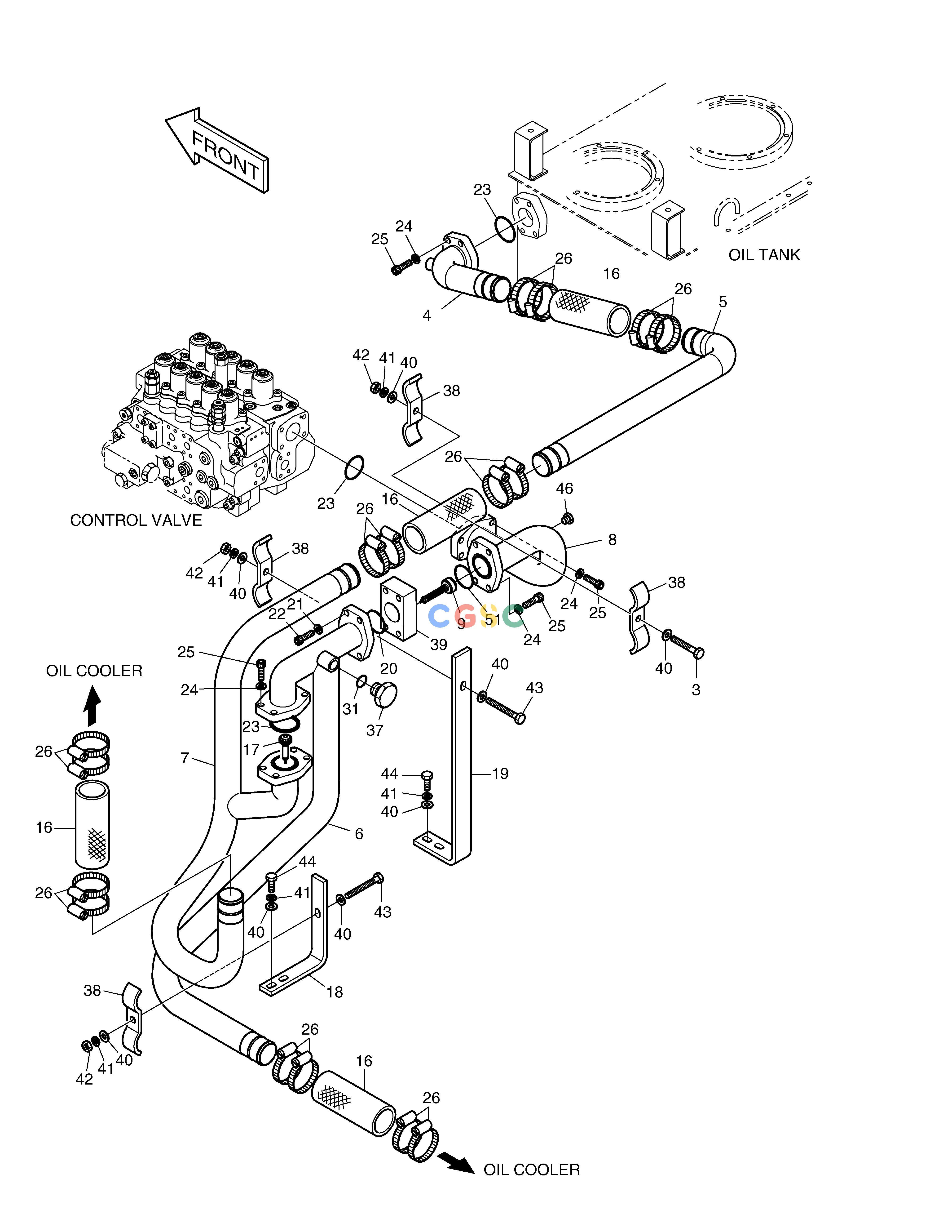

斗山零件查询OIL COOLER PIPING(1-1) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00690
|
[-] |
OIL COOLER PIPING
|
|
| 16. |
2185-1776D1
|
[4] |
HOSE
|
|
| 17. |
420-00304
|
[1] |
VALVE;BY-PASS
|
|
| 18. |
2891-1089A
|
[1] |
PLATE
|
|
| 19. |
191-02332
|
[1] |
PLATE
|
|
| 20. |
2180-1026D32
|
[1] |
O-RING
|
|
| 21. |
S5110903
|
[4] |
WASHER
|
|
| 22. |
S2221466
|
[4] |
BOLT;SOCKET M16X2.0X40
|
|
| 23. |
2180-1026D27
|
[3] |
O-RING
|
|
| 24. |
S5110703
|
[16] |
WASHER
|
|
| 25. |
S2215466
|
[16] |
BOLT
|
|
| 26. |
S8450066
|
[16] |
CLAMP;HOSE
|
|
| 3. |
S0561353
|
[1] |
BOLT M12X1.75X80
|
|
| 31. |
S8000291
|
[1] |
O-RING
|
|
| 37. |
2181-1950D9
|
[1] |
PLUG
|
|
| 38. |
2124-1340D15
|
[4] |
CLAMP;PIPE
|
|
| 39. |
423-00137
|
[1] |
BLOCK
|
|
| 4. |
2140-1270A
|
[1] |
PIPE
|
|
| 40. |
S5010713
|
[10] |
WASHER;PLAIN
|
|
| 41. |
S5102703
|
[7] |
WASHER
|
|
| 42. |
S4012733
|
[3] |
NUT
|
|
| 43. |
S0561753
|
[2] |
BOLT M12X1.75X100
|
|
| 44. |
S0515453
|
[4] |
BOLT
|
|
| 46. |
2181-2047A
|
[1] |
PLUG
|
|
| 5. |
140-00989
|
[1] |
PIPE
|
|
| 51. |
2180-1026D31
|
[1] |
O-RING
|
|
| 6. |
140-00944A
|
[1] |
PIPE
|
|
| 6. |
140-00944B
|
[1] |
PIPE
|
|
| 7. |
140-00947
|
[1] |
PIPE
|
|
| 7. |
140-00947A
|
[1] |
PIPE
|
|
| 8. |
140-00948
|
[1] |
PIPE
|
|
| 9. |
422-00041
|
[1] |
VALVE;BY-PASS
|
420-00261B
|
| 9. |
420-00261B
|
[1] |
VALVE;BYPASS(2.5K)
|
|
