沃尔沃零件查询TAMD72P-A; TAMD72WJ-AEngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
838 次

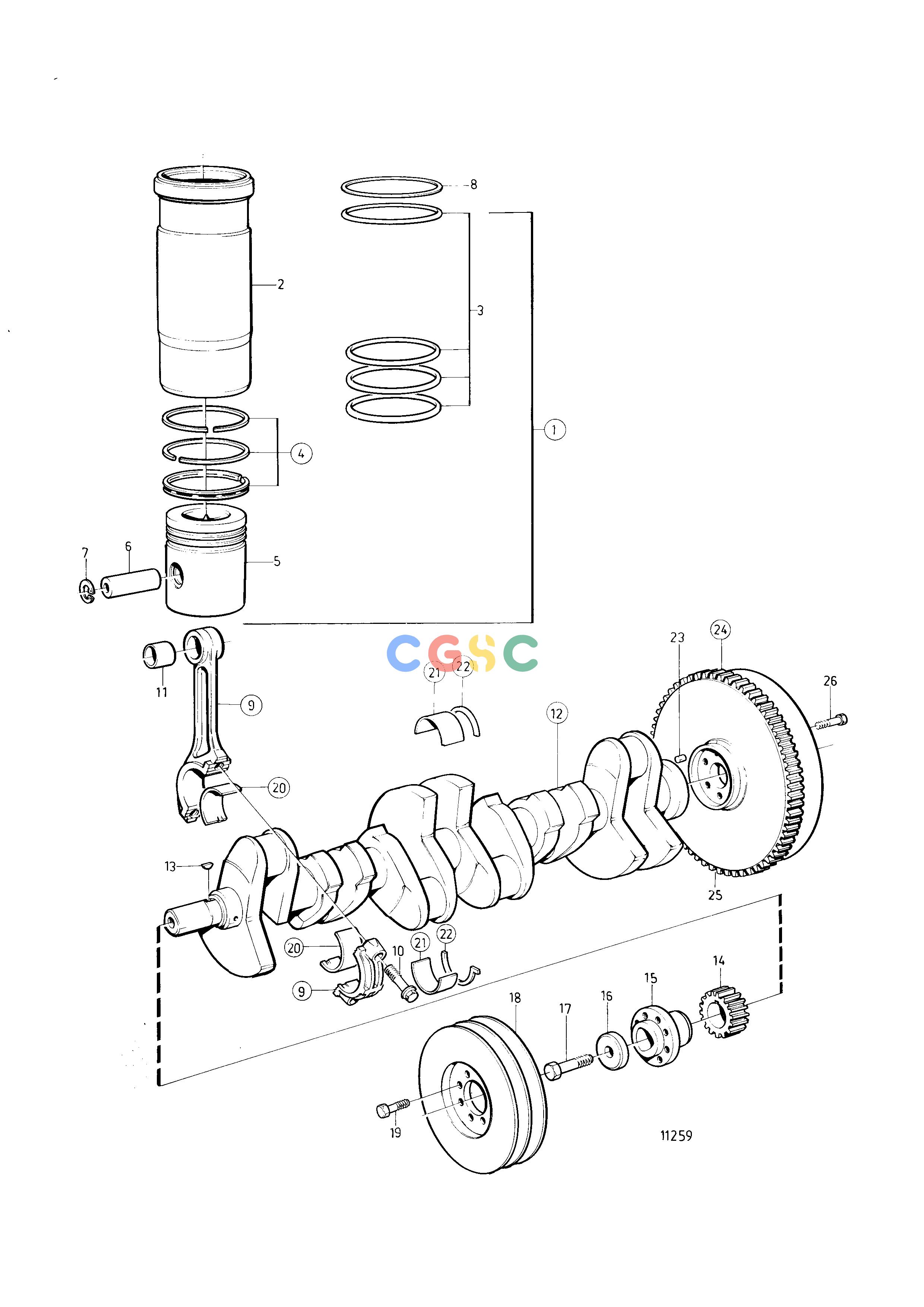

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876548
|
[6] |
Cylinder liner kit
|
SN-XXXXXXXXXX/97292
|
| 1. |
3827380
|
[6] |
Cylinder liner kit
|
SNXXXXXXXXXX/97293-
|
| 2. |
|
|
|
|
| 3. |
271159
|
[6] |
Sealing ring kit
|
|
| 4. |
876542
|
[6] |
Piston ring kit
|
|
| 5. |
|
|
|
|
| 6. |
3978588
|
[6] |
Gudgeon pin
|
(477927)
|
| 7. |
914525
|
[12] |
Snap ring
|
|
| 8. |
466878
|
[1] |
Adjusting washer
|
Shims to adjust the cylinder liner level., TH=0,20mm
|
| 8. |
466114
|
[1] |
Adjusting washer
|
Shims to adjust the cylinder liner level., TH=0,30mm
|
| 8. |
466184
|
[1] |
Adjusting washer
|
Shims to adjust the cylinder liner level., TH=0,50mm
|
| 9. |
864936
|
[6] |
Connecting rod
|
Classified
|
| 10. |
465815
|
[12] |
Flange screw
|
|
| 11. |
471364
|
[12] |
Bushing
|
|
| 12. |
477116
|
[1] |
Crankshaft, 6-hole
|
SN-XXXXXXXXXX/78960
|
| 12. |
477870
|
[1] |
Crankshaft, 9-hole
|
SNXXXXXXXXXX/78961-
|
| 13. |
422253
|
[1] |
Woodruff key
|
|
| 14. |
471528
|
[1] |
Gear
|
|
| 15. |
465779
|
[1] |
Hub
|
|
| 16. |
420124
|
[1] |
Washer
|
|
| 17. |
470366
|
[1] |
Flange screw
|
|
| 18. |
865243
|
[1] |
Vibration damper
|
|
| 19. |
421796
|
[8] |
Flange screw
|
|
| 20. |
270115
|
[6] |
Big-end bearing kit
|
Std D
|
| 20. |
270116
|
[6] |
Big-end bearing kit
|
U.S=0,25mm
|
| 20. |
270117
|
[6] |
Big-end bearing kit
|
U.S=0,51mm
|
| 20. |
270118
|
[6] |
Big-end bearing kit
|
U.S=0,76mm
|
| 20. |
270119
|
[6] |
Big-end bearing kit
|
U.S=1,01mm
|
| 20. |
270120
|
[6] |
Big-end bearing kit
|
U.S=1,27mm
|
| 21. |
270432
|
[7] |
Main bearing kit
|
Std D
|
| 21. |
270433
|
[7] |
Main bearing kit
|
U.S=0,25mm
|
| 21. |
270434
|
[7] |
Main bearing kit
|
U.S=0,51mm
|
| 21. |
270435
|
[7] |
Main bearing kit
|
U.S=0,76mm
|
| 21. |
270436
|
[7] |
Main bearing kit
|
U.S=1,01mm
|
| 21. |
270437
|
[7] |
Main bearing kit
|
U.S=1,27mm
|
| 22. |
276754
|
[1] |
Thrust washer kit
|
Std D
|
| 22. |
276755
|
[1] |
Thrust washer kit
|
O.S=0,10mm
|
| 22. |
276756
|
[1] |
Thrust washer kit
|
O.S=0,20mm
|
| 22. |
276757
|
[1] |
Thrust washer kit
|
O.S=0,30mm
|
| 23. |
950677
|
[1] |
Pin
|
|
| 24. |
848350
|
[1] |
Flywheel, 6-hole
|
SN-XXXXXXXXXX/78960
|
| 24. |
3825864
|
[1] |
Flywheel, 9-hole
|
SNXXXXXXXXXX/78961-
|
| 25. |
420314
|
[1] |
Ring gear
|
(420067)
|
| 26. |
465826
|
[9] |
Flange screw
|
|
