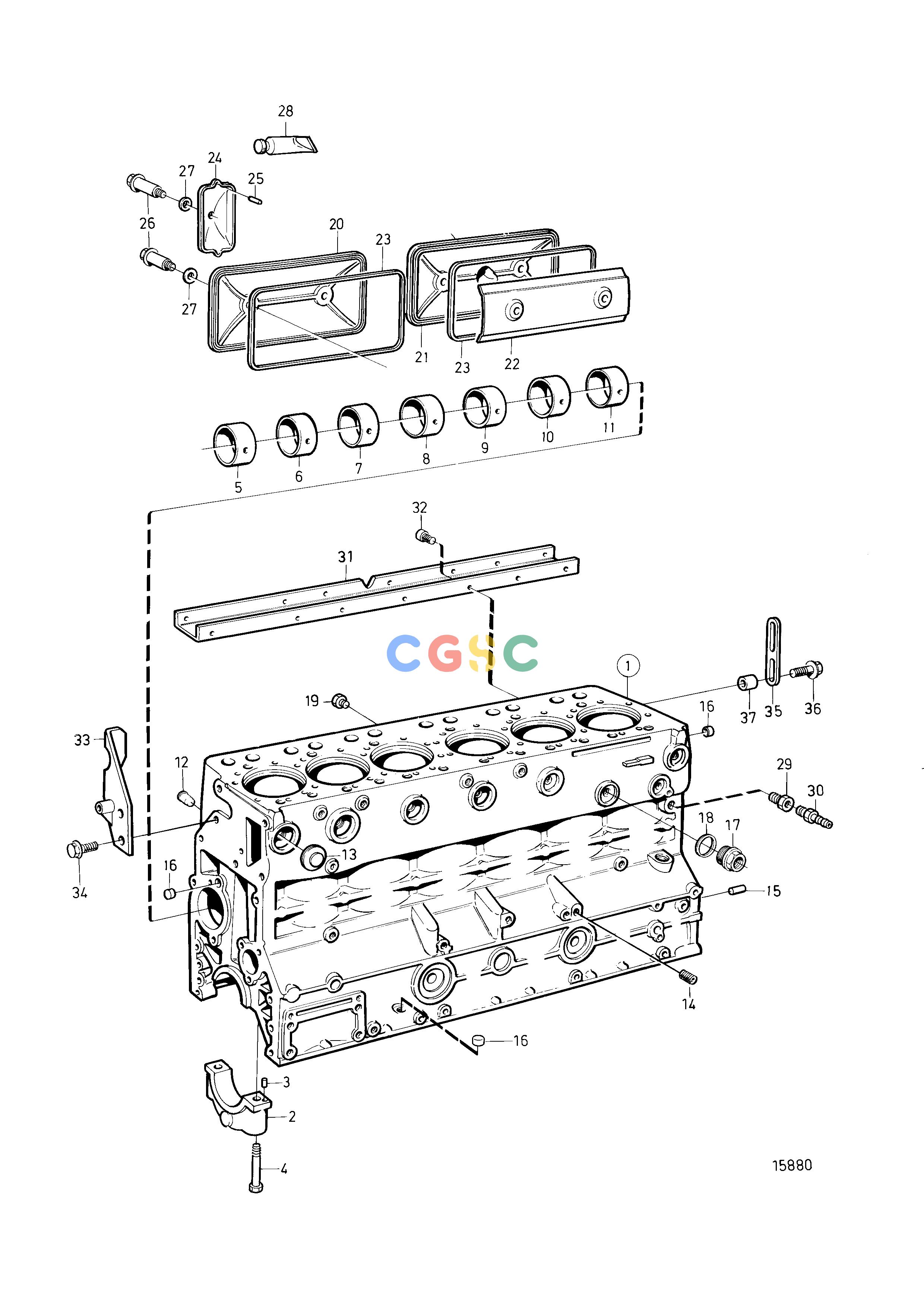

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
196 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
477990
|
[1] |
Cylinder block
|
|
| 1. |
3801054
|
[1] |
Short block
|
|
| 2. |
|
|
|
|
| 3. |
422426
|
[1] |
Pivot pin
|
|
| 4. |
465899
|
[14] |
Flange screw
|
|
| 5. |
422076
|
[1] |
Bushing
|
|
| 6. |
422077
|
[1] |
Bushing
|
|
| 7. |
422078
|
[1] |
Bushing
|
|
| 8. |
422079
|
[1] |
Bushing
|
|
| 9. |
422080
|
[1] |
Bushing
|
|
| 10. |
422081
|
[1] |
Bushing
|
|
| 11. |
422082
|
[1] |
Bushing
|
|
| 12. |
422369
|
[2] |
Plug
|
|
| 13. |
968955
|
[6] |
Expansion plug
|
|
| 14. |
968145
|
[1] |
Plug, 3/8-NPTF
|
|
| 15. |
191171
|
[2] |
Pin, flywheel casing
|
|
| 16. |
955082
|
[2] |
Cap plug
|
|
| 17. |
848565
|
[1] |
Nipple, cool. water pipe
|
See group 25
|
| 18. |
469328
|
[1] |
Gasket
|
|
| 19. |
479976
|
[1] |
Plug, cool. water pipe
|
(946559)
|
| 20. |
420120
|
[1] |
Inspection cover
|
|
| 21. |
420121
|
[1] |
Inspection cover, crankhouse vent.
|
|
| 22. |
471858
|
[1] |
Splash plate
|
|
| 23. |
421121
|
[2] |
Gasket
|
|
| 24. |
471854
|
[1] |
Cover
|
|
| 25. |
951974
|
[1] |
Spring pin
|
|
| 26. |
471855
|
[5] |
Shoulder screw
|
|
| 27. |
471856
|
[5] |
Sealing ring
|
|
| 28. |
1161231
|
[1] |
Sealant
|
304ml
|
| 28. |
1161277
|
[1] |
Sealant
|
20g
|
| 29. |
479954
|
[1] |
Nipple
|
|
| 30. |
947893
|
[1] |
Shut-off cock
|
|
| 31. |
865779
|
[1] |
Bracket
|
|
| 32. |
959220
|
[7] |
Hex. socket screw
|
|
| 33. |
847932
|
[1] |
Lifting eye
|
|
| 34. |
965191
|
[2] |
Flange screw
|
|
| 35. |
848533
|
[1] |
Lifting eye
|
|
| 36. |
965225
|
[2] |
Flange screw
|
|
| 37. |
847237
|
[1] |
Spacer sleeve
|
|
