沃尔沃零件查询TAMD72P-A; TAMD72WJ-AEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
414 次

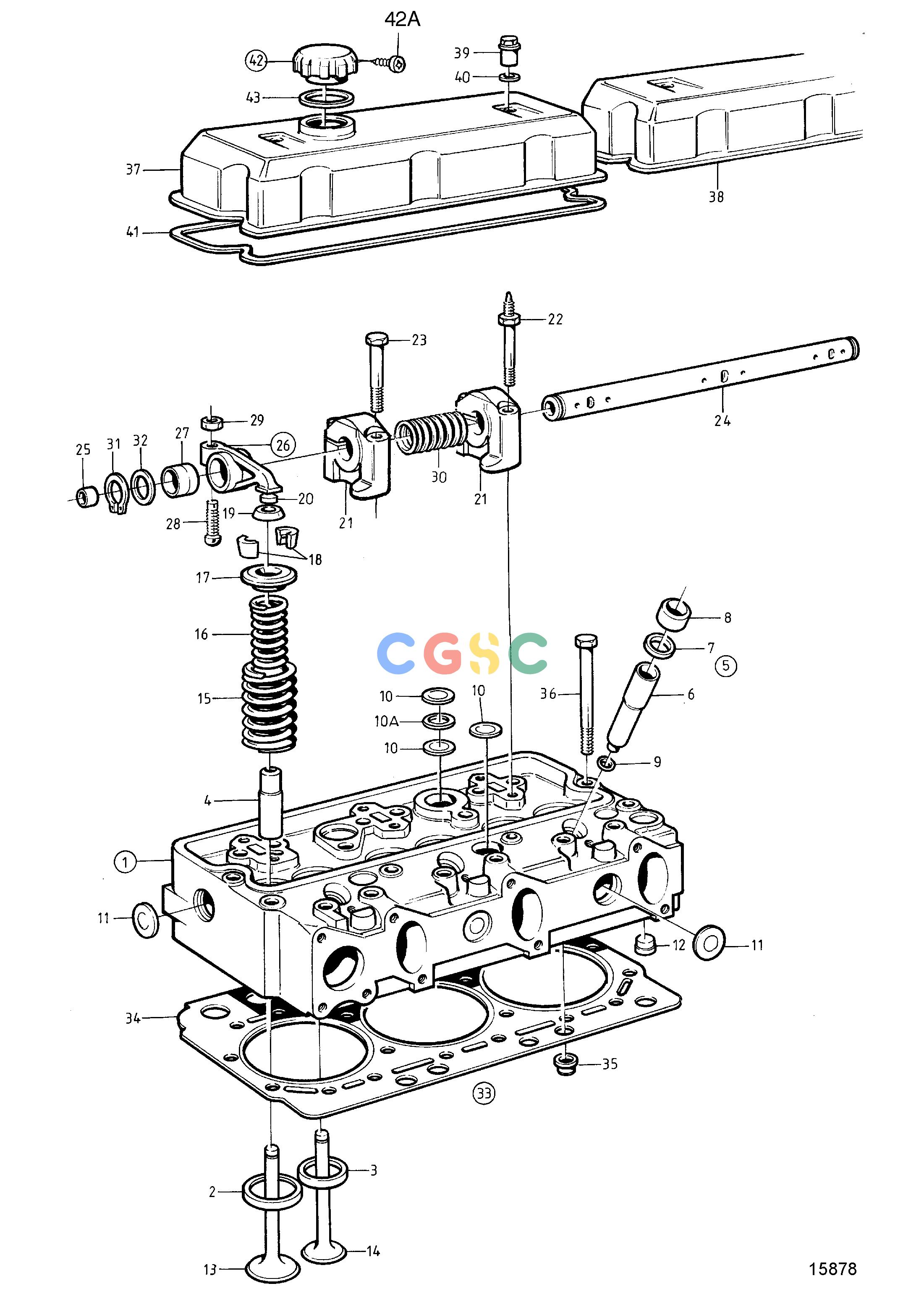

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803310
|
[2] |
Cylinder head
|
(864814)
|
| 2. |
864993
|
[6] |
Valve seat, intake
|
Std D
|
| 2. |
864983
|
[6] |
Valve seat, intake
|
O.S=0,20mm
|
| 3. |
864994
|
[6] |
Valve seat, exhaust
|
Std D
|
| 3. |
864982
|
[6] |
Valve seat, exhaust
|
O.S=0,20mm
|
| 4. |
466386
|
[12] |
Valve guide
|
|
| 5. |
276130
|
[6] |
Copper sleeve kit, fuel injector
|
|
| 6. |
477928
|
[6] |
Nozzle sleeve
|
|
| 7. |
466405
|
[6] |
Sealing ring
|
|
| 8. |
466420
|
[6] |
Ring
|
|
| 9. |
466922
|
[6] |
O-ring
|
|
| 10. |
477026
|
[14] |
Expansion plug
|
D=26mm
|
| 10A. |
947626
|
[4] |
Gasket
|
|
| 11. |
477024
|
[8] |
Expansion plug
|
D=35mm
|
| 12. |
465420
|
[10] |
Jet
|
|
| 13. |
864917
|
[6] |
Inlet valve
|
Frt 3825908
|
| 13. |
3825908
|
[6] |
Inlet valve
|
Nimonic
|
| 14. |
842080
|
[6] |
Exhaust valve
|
|
| 15. |
466384
|
[12] |
Valve spring
|
|
| 16. |
466383
|
[12] |
Valve spring
|
|
| 17. |
466382
|
[12] |
Valve spring washer
|
|
| 18. |
468305
|
[24] |
Valve cotter
|
|
| 19. |
469456
|
[12] |
Protecting ring
|
|
| 20. |
478074
|
[12] |
Valve cap
|
|
| 21. |
477384
|
[6] |
Bearing bracket
|
|
| 22. |
471512
|
[4] |
Stud
|
|
| 23. |
471513
|
[8] |
Flange nut
|
|
| 24. |
471518
|
[2] |
Rocker arm shaft
|
|
| 25. |
946778
|
[4] |
Cap plug
|
|
| 26. |
422063
|
[12] |
Rocker arm
|
|
| 27. |
422066
|
[12] |
Bushing
|
|
| 28. |
422993
|
[12] |
Ball stud
|
|
| 29. |
940175
|
[12] |
Hexagon nut
|
|
| 30. |
421173
|
[4] |
Spring
|
|
| 31. |
914459
|
[4] |
Snap ring
|
|
| 32. |
941488
|
[4] |
Washer
|
|
| 33. |
276816
|
[2] |
Cylinder head gasket
|
|
| 34. |
|
|
|
|
| 35. |
465784
|
[12] |
Sealing ring
|
I.D=26mm
|
| 35. |
466421
|
[16] |
Sealing ring
|
I.D=16mm
|
| 35. |
422413
|
[2] |
Sealing ring
|
I.D=11mm
|
| 36. |
471481
|
[40] |
Flange screw
|
|
| 37. |
471813
|
[1] |
Valve cover
|
|
| 38. |
471426
|
[1] |
Valve cover
|
|
| 39. |
465961
|
[4] |
Cap nut
|
|
| 40. |
471856
|
[4] |
Sealing ring
|
|
| 41. |
471520
|
[2] |
Gasket
|
|
| 42. |
421753
|
[1] |
Oil filler cap
|
|
| 42A. |
955126
|
[3] |
Cross recessed screw
|
|
| 43. |
940096
|
[1] |
Gasket
|
|
