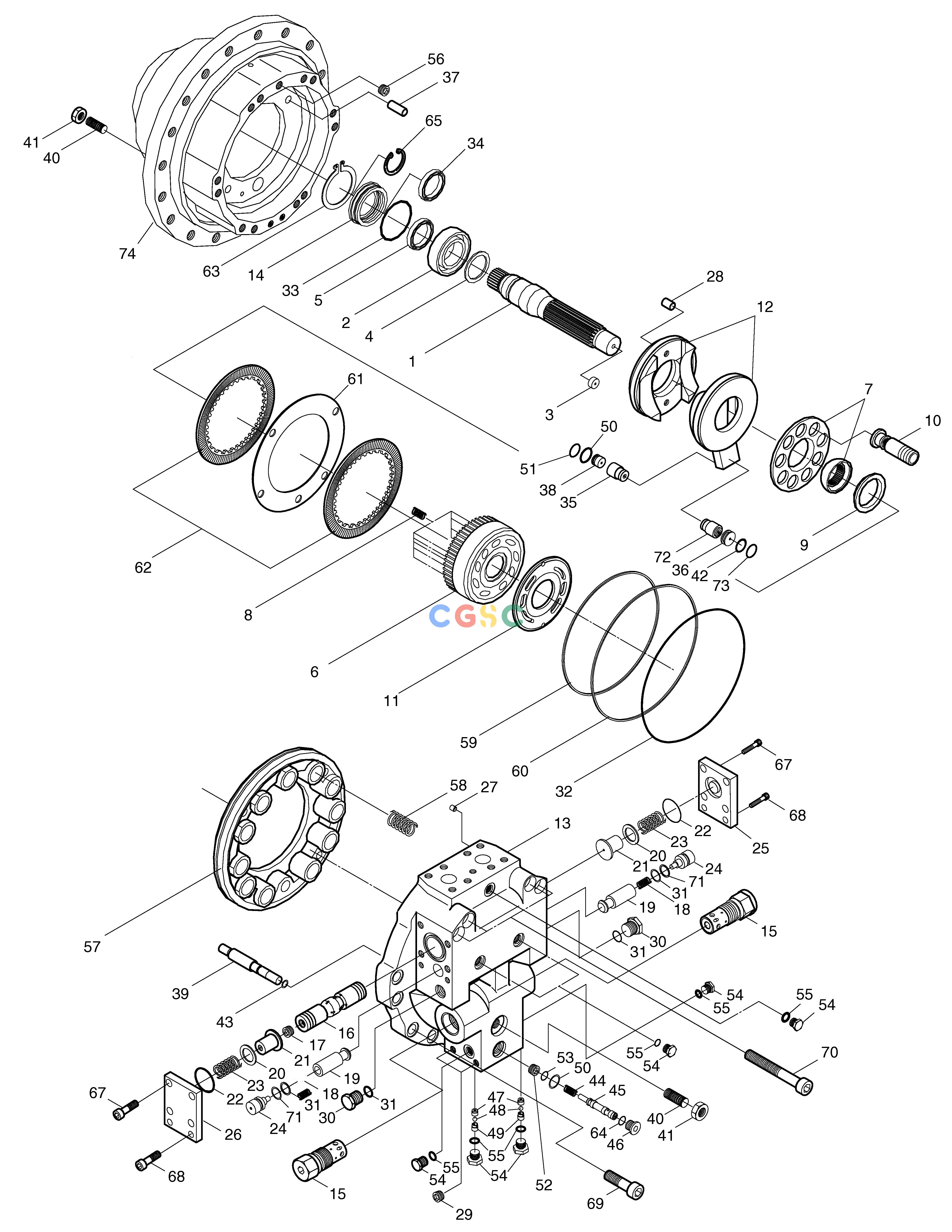

斗山零件查询TRAVEL MOTOR-DTD283V SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2401-9140K
|
[1] |
O-RING KIT
|
|
| -. |
2401-1206B
|
[2] |
TRAVEL DEVICE
|
2401-1206C
|
| -. |
2401-1206C
|
[2] |
TRAVEL DEVICE
|
2401-1206E
|
| -. |
2401-1206E
|
[2] |
TRAVEL DEVICE
|
2401-1206G
|
| -. |
2401-1206G
|
[2] |
TRAVEL DEVICE
|
2401-1206H
|
| -. |
2401-1206H
|
[2] |
TRAVEL DEVICE
|
|
| 1. |
2405-1008A
|
[1] |
SHAFT
|
|
| 10. |
2409-1021D
|
[9] |
PISTON & SHOE ASS'Y
|
|
| 11. |
2420-1087B
|
[1] |
VALVE PLATE
|
|
| 12. |
2412-1030B
|
[1] |
SWASH ASS'Y
|
|
| 13. |
2402-1035E
|
[1] |
VALVE CASING
|
2402-1035G
|
| 13. |
2402-1035G
|
[1] |
CASING;VALVE
|
|
| 14. |
2403-1045
|
[1] |
COVER;SEAL
|
|
| 15. |
2420-1081D
|
[2] |
RELIEF VALVE ASS'Y
|
|
| 16. |
2424-1043E
|
[1] |
SPOOL;COUNTER BALANCE V/V
|
|
| 17. |
2415-1009D5
|
[2] |
ORIFICE;SCREW
|
|
| 18. |
2129-1322A
|
[2] |
SPRING;CHECK
|
|
| 19. |
2424-1042F
|
[2] |
PLUNGER;C.B V/V
|
|
| 2. |
2109-8001
|
[1] |
BEARING;ROLLER
|
|
| 20. |
2114-1602
|
[2] |
SHIM
|
|
| 21. |
2416-1013B
|
[2] |
STOPPER
|
2416-1013C
|
| 21. |
2416-1013C
|
[2] |
DAMPING CHECK ASS'Y
|
|
| 22. |
S8000451
|
[2] |
O-RING 1B P45
|
|
| 23. |
2129-1321
|
[2] |
SPRING;CYLINDER
|
|
| 24. |
2416-1012D
|
[2] |
STOPPER;CHECK
|
|
| 25. |
2430-1016A
|
[1] |
CAP;COUNTER BALANCE V/V(R)
|
|
| 25. |
2430-1016B
|
[1] |
CAP;C.B. V/V (R)
|
|
| 26. |
2430-1017A
|
[1] |
CAP;COUNTER BALANCE V/V(L)
|
|
| 26. |
2430-1017B
|
[1] |
CAP;C.B. V/V (L)
|
|
| 27. |
2123-1708D3A
|
[2] |
PIN;VALVE PLATE
|
|
| 28. |
2123-1708D1A
|
[2] |
PIN;SUPPORT
|
|
| 29. |
2181-1854
|
[5] |
PLUG
|
|
| 3. |
2109-8003
|
[1] |
BEARING;NEEDLE
|
|
| 30. |
2181-1896D4
|
[2] |
PLUG
|
|
| 31. |
S8000181
|
[4] |
O-RING
|
|
| 32. |
2180-8003B
|
[1] |
O-RING
|
|
| 33. |
S8010751
|
[1] |
O-RING
|
|
| 34. |
2180-8002A
|
[1] |
JOINT TORIQUE
|
|
| 35. |
2409-1024C
|
[1] |
PISTON;SWASH
|
|
| 36. |
2416-1007A
|
[1] |
STOPPER(L)
|
|
| 37. |
2123-1708D2A
|
[4] |
PIN;BRAKE
|
|
| 38. |
2416-1008A
|
[1] |
STOPPER(S)
|
|
| 39. |
2413-1001
|
[1] |
ROD;SWASH
|
|
| 4. |
2114-1598
|
[1] |
BEARING;SPACER
|
|
| 40. |
2120-1427A
|
[2] |
SCREW;LOCK
|
|
| 41. |
S4010942
|
[2] |
NUT;HEX M16
|
|
| 42. |
S8002731
|
[1] |
O-RING
|
|
| 43. |
S8002701
|
[1] |
. O-RING
|
|
| 44. |
2129-1317
|
[1] |
SPRING;SWASH
|
|
| 45. |
2483-1017B
|
[1] |
SPOOL;SWASH
|
|
| 46. |
2426-1072
|
[1] |
PLUG
|
|
| 47. |
2316-1006A
|
[2] |
SEAT
|
|
| 48. |
2148-1002
|
[2] |
BALL
|
|
| 49. |
2416-1009
|
[2] |
STOPPER
|
|
| 5. |
S6500500
|
[1] |
RING;STOP
|
|
| 50. |
S8000161
|
[4] |
O-RING
|
|
| 51. |
S8060161
|
[3] |
RING;BACK-UP
|
|
| 52. |
2415-1009D1
|
[2] |
SCREW;ORIFICE
|
|
| 53. |
S8000101
|
[3] |
O-RING
|
|
| 54. |
2181-1896D2
|
[7] |
PLUG
|
|
| 55. |
S8000111
|
[7] |
O-RING
|
|
| 56. |
2415-1009D4
|
[1] |
SCREW;ORIFICE
|
|
| 57. |
2452-1003
|
[1] |
PISTON;BRAKE
|
|
| 58. |
2129-1318
|
[10] |
SPRING;BRAKE
|
|
| 59. |
2411-1011
|
[1] |
RING;PISTON
|
|
| 6. |
2410-1015B
|
[1] |
BLOCK;CYLINDER
|
|
| 60. |
2411-1012
|
[1] |
RING;PISTON
|
|
| 61. |
2352-1004A
|
[1] |
PLATE;SEPARATOR
|
|
| 62. |
2352-1006
|
[2] |
PLATE;FRICTION
|
|
| 63. |
S6500400
|
[1] |
RING,RETAINING
|
|
| 64. |
S8000141
|
[1] |
O-RING
|
|
| 65. |
S6510850
|
[1] |
RING;LOCK
|
|
| 67. |
S2215271
|
[8] |
BOLT;SOCKET
|
|
| 68. |
S2212271
|
[4] |
BOLT;SOCKET M10X30
|
|
| 69. |
S2221661
|
[8] |
BOLT;SOCKET M16X50
|
|
| 7. |
2408-1039B
|
[1] |
BUSH & PUSH PLATE ASS'Y
|
|
| 70. |
S2223061
|
[4] |
BOLT;SOCKET M16X120
|
|
| 71. |
S8060181
|
[2] |
. RING;BACKUP
|
|
| 72. |
2409-1057
|
[1] |
PISTON;SWASH
|
|
| 73. |
S8062661
|
[2] |
RING;BACK UP 1B P22A
|
|
| 74. |
2402-1028J
|
[1] |
SHAFT CASING
|
|
| 8. |
2129-1315
|
[9] |
SPRING;CYLINDER
|
|
| 9. |
2114-1599A
|
[1] |
SPACER
|
|
