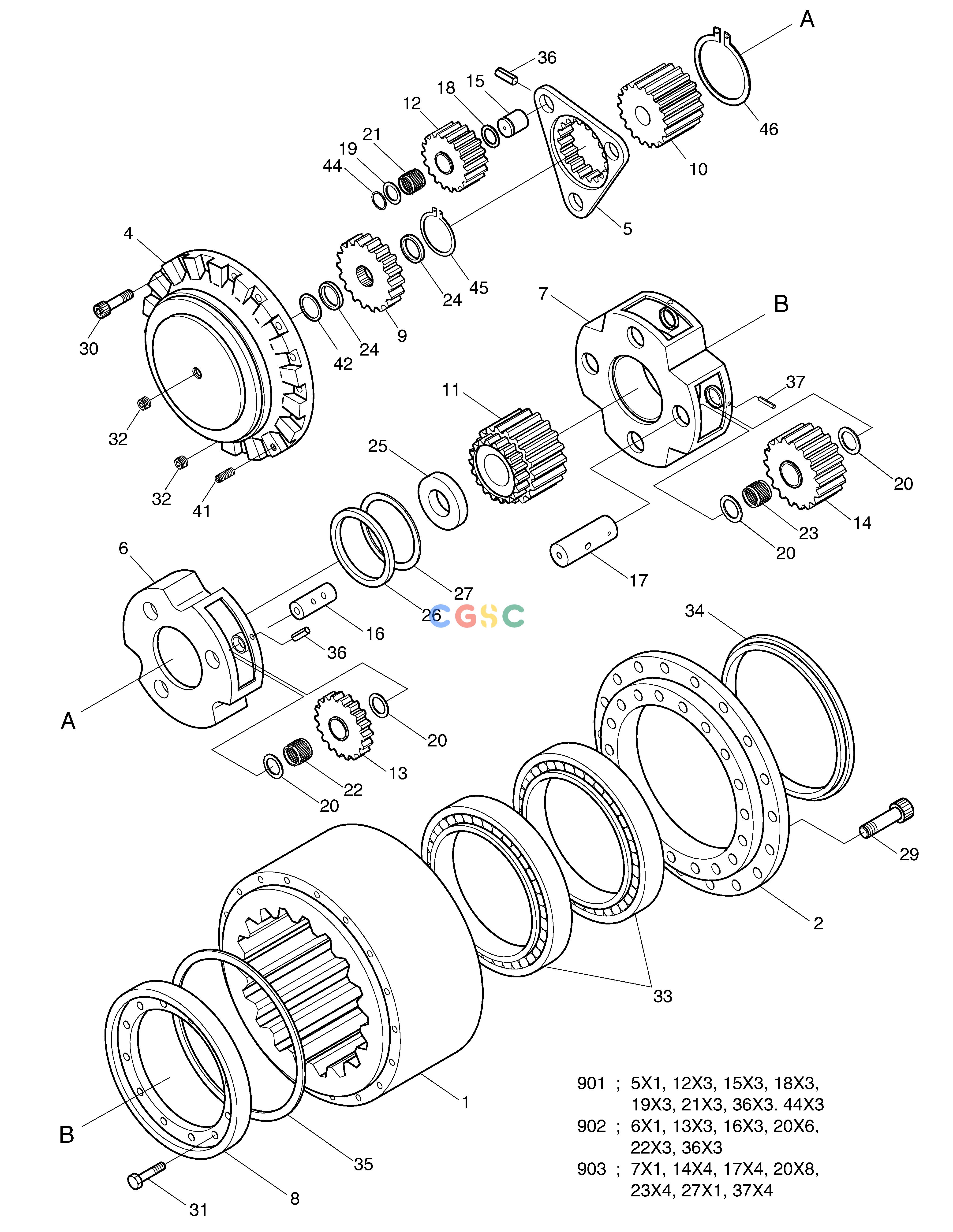

斗山零件查询TRAVEL REDUCTION DEVICE-DNB50B SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-9140
|
[2] |
TRAVEL DEVICE
|
|
| -. |
3350BX067
|
[1] |
TRAVEL REDUCTION DEVICE ASS'Y
|
|
| 1. |
35050BAA-001
|
[1] |
GEAR;RING
|
|
| 10. |
35050BAA-010
|
[1] |
GEAR;SUN (NO.2)
|
|
| 11. |
35050BAA-011
|
[1] |
GEAR;SUN (NO.3)
|
|
| 12. |
35050BAA-012
|
[3] |
GEAR;PLANETARY 67(NO.1)
|
|
| 13. |
35050BAA-013
|
[3] |
GEAR;PLANETARY (NO.1)
|
|
| 14. |
35050BAA-014
|
[4] |
GEAR;PLANETARY (NO.3)
|
|
| 15. |
35050BAA-015
|
[3] |
PIN (NO.1)
|
|
| 16. |
35050BAA-016
|
[3] |
PIN 59X61 (NO.2)
|
|
| 17. |
35050-00-017
|
[4] |
PIN (NO.3)
|
|
| 18. |
35050BAA-018
|
[3] |
PLATE;SIDE 50A
|
|
| 19. |
35050BAA-019
|
[3] |
PLATE;SIDE 50B
|
|
| 2. |
35050BAA-002
|
[1] |
HOUSING
|
|
| 20. |
35050BAA-020
|
[14] |
PLATE;SIDE 60
|
|
| 21. |
PKT505825E4
|
[3] |
CAGE;NEEDLE
|
|
| 22. |
PKT597132
|
[3] |
CAGE;NEEDLE
|
|
| 23. |
PBN506006
|
[4] |
CAGE;NEEDLE
|
|
| 24. |
35050BAA-024
|
[2] |
RING;THRUST 60
|
|
| 25. |
63050-AA-285
|
[1] |
RING;THRUST 104A
|
|
| 26. |
63050-AA-289
|
[1] |
RING;THRUST 178
|
|
| 27. |
3550800193
|
[1] |
SHIM 178
|
|
| 29. |
OSBM20100
|
[20] |
BOLT;SOCKET M20X2.5X100
|
|
| 30. |
OSBM1035
|
[20] |
BOLT;SOCKET M10X1.5X35
|
|
| 31. |
PWBM1230M
|
[12] |
BOLT
|
|
| 32. |
OBP12
|
[3] |
PLUG
|
208287
|
| 33. |
35050BAA-033
|
[2] |
BEARING;ANGULAR
|
|
| 34. |
P297
|
[1] |
SEAL;FLOATING
|
|
| 35. |
35050-00-035
|
[1] |
SHIM
|
|
| 36. |
OSPV625
|
[6] |
PIN;SPRING
|
|
| 37. |
OSPV832
|
[4] |
PIN;SPRING
|
|
| 4. |
35050BAA-004
|
[1] |
COVER;SIDE
|
|
| 41. |
OSSM1030
|
[2] |
SCREW;SET
|
|
| 42. |
35050BAA-042
|
[1] |
SHIM 59
|
|
| 44. |
OSR50
|
[3] |
RING;SNAP
|
|
| 45. |
PWR110
|
[1] |
CLIP
|
|
| 46. |
PWR130
|
[1] |
CLIP W
|
|
| 5. |
35050BAA-005
|
[1] |
CARRIER 67(NO.1)
|
|
| 6. |
35050BAA-006
|
[1] |
CARRIER (NO.2)
|
|
| 7. |
35050BAA-007A
|
[1] |
CARRIER (NO.3)
|
|
| 8. |
35050BAA-008
|
[1] |
RETAINER;BEARING
|
|
| 9. |
35050BAA-009
|
[1] |
GEAR;SUN 67(NO.1)
|
|
| 901. |
3550BX067-05
|
[1] |
SUB-ASS'Y;CARRIER (NO.1)
|
|
| 902. |
3550BX000-06
|
[1] |
SUB-ASS'Y;CARRIER (NO.2)
|
|
| 903. |
3550BX000-07A
|
[1] |
SUB-ASS'Y;CARRIER (NO.3)
|
|
