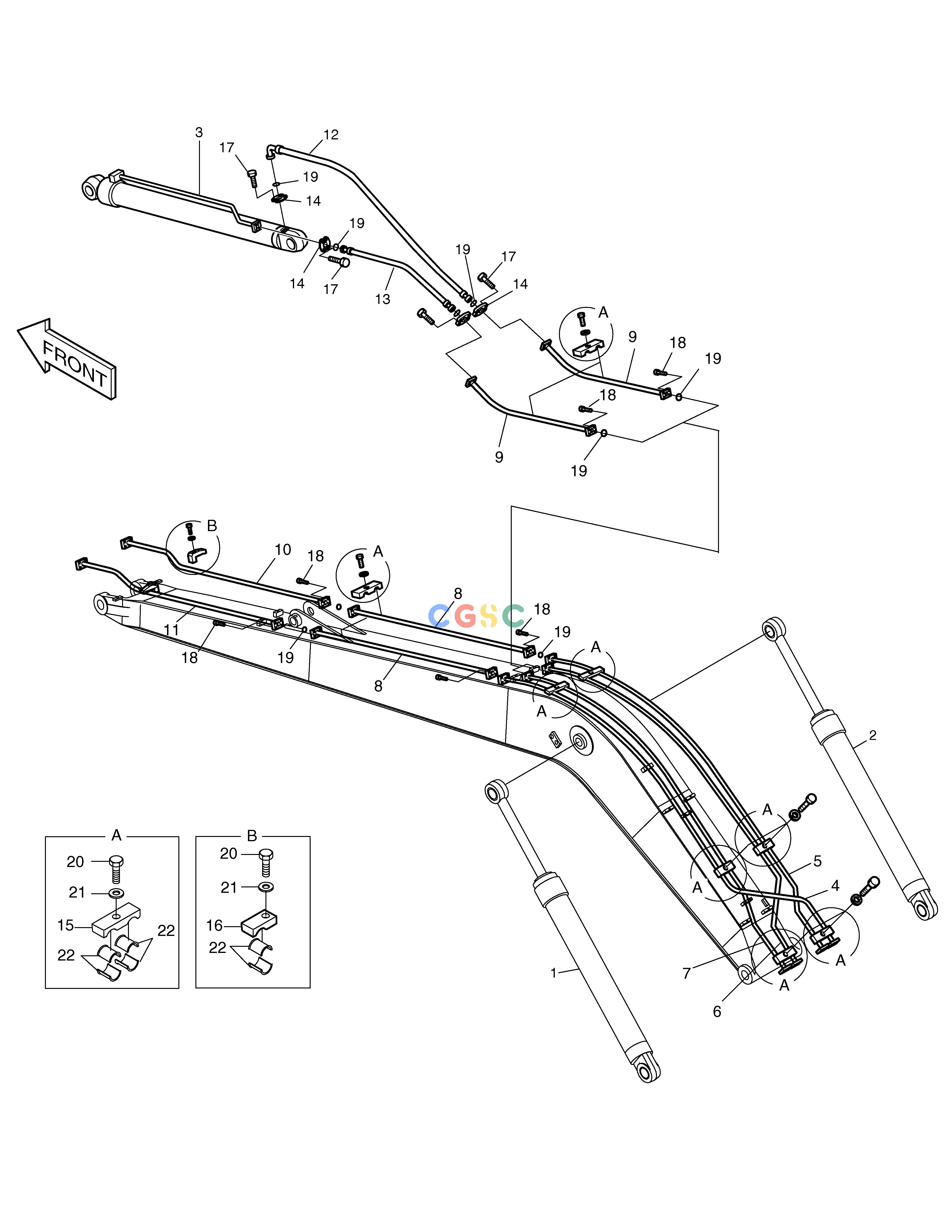

斗山零件查询BOOM PIPING-10m SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2119
|
[-] |
BOOM PIPING-10m
|
|
| 1. |
2440-9238E
|
[1] |
BOOM CYLINDER(LH)
|
2440-9238G
|
| 1. |
2440-9238G
|
[1] |
CYLINDER;BOOM(L.H)
|
|
| 1. |
2440-9238B
|
[1] |
BOOM CYLINDER(LH)
|
|
| 10. |
2140-1654
|
[1] |
PIPE
|
2140-1654A
|
| 10. |
2140-1654A
|
[1] |
PIPE
|
|
| 11. |
2140-1655
|
[1] |
PIPE
|
2140-1655A
|
| 11. |
2140-1655A
|
[1] |
PIPE
|
|
| 12. |
2184-1082D16
|
[1] |
HOSE-1075L
|
2184-1082D100
|
| 12. |
2184-1082D100
|
[1] |
HOSE
|
|
| 13. |
2184-1081D111
|
[1] |
HOSE
|
2184-1081D137
|
| 13. |
2184-1081D137
|
[1] |
HOSE
|
|
| 14. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 15. |
2124-1587
|
[12] |
CLAMP;PIPE
|
|
| 16. |
2124-1586
|
[4] |
CLAMP;PIPE
|
2124-1586A
|
| 16. |
2124-1586A
|
[4] |
CLAMP;PIPE
|
|
| 17. |
S2212261
|
[16] |
SOCKET-HEAD BOLT
|
S2212266
|
| 17. |
S2212266
|
[16] |
BOLT
|
|
| 18. |
S2212461
|
[24] |
BOLT;SOCKET
|
S2212466
|
| 18. |
S2212466
|
[24] |
BOLT
|
|
| 19. |
2180-1026D19
|
[10] |
O-RING
|
|
| 2. |
2440-9239E
|
[1] |
BOOM CYLINDER(RH)
|
2440-9239G
|
| 2. |
2440-9239G
|
[1] |
CYLINDER;BOOM(R.H)
|
|
| 2. |
2440-9239B
|
[1] |
BOOM CYLINDER(RH)
|
|
| 20. |
S0565661
|
[16] |
BOLT M16X2.0X70
|
S0565666
|
| 20. |
S0565666
|
[16] |
BOLT
|
|
| 21. |
S5102901
|
[16] |
. WASHER;SPRING
|
S5102903
|
| 21. |
S5102903
|
[16] |
WASHER
|
|
| 22. |
2161-2267A
|
[56] |
RUBBER
|
161-00102
|
| 22. |
161-00102
|
[56] |
RUBBER
|
|
| 3. |
2440-9240B
|
[1] |
ARM CYLINDER
|
2440-9240C
|
| 3. |
2440-9240C
|
[1] |
CYLINDER;ARM
|
2440-9240E
|
| 3. |
2440-9240E
|
[1] |
CYLINDER;ARM
|
|
| 4. |
2140-1648
|
[1] |
PIPE
|
|
| 5. |
2140-1649
|
[1] |
PIPE
|
|
| 6. |
2140-1650
|
[1] |
PIPE
|
|
| 7. |
2140-1651
|
[1] |
PIPE
|
|
| 8. |
2140-1652
|
[2] |
PIPE
|
|
| 9. |
2140-1653
|
[1] |
PIPE
|
|
