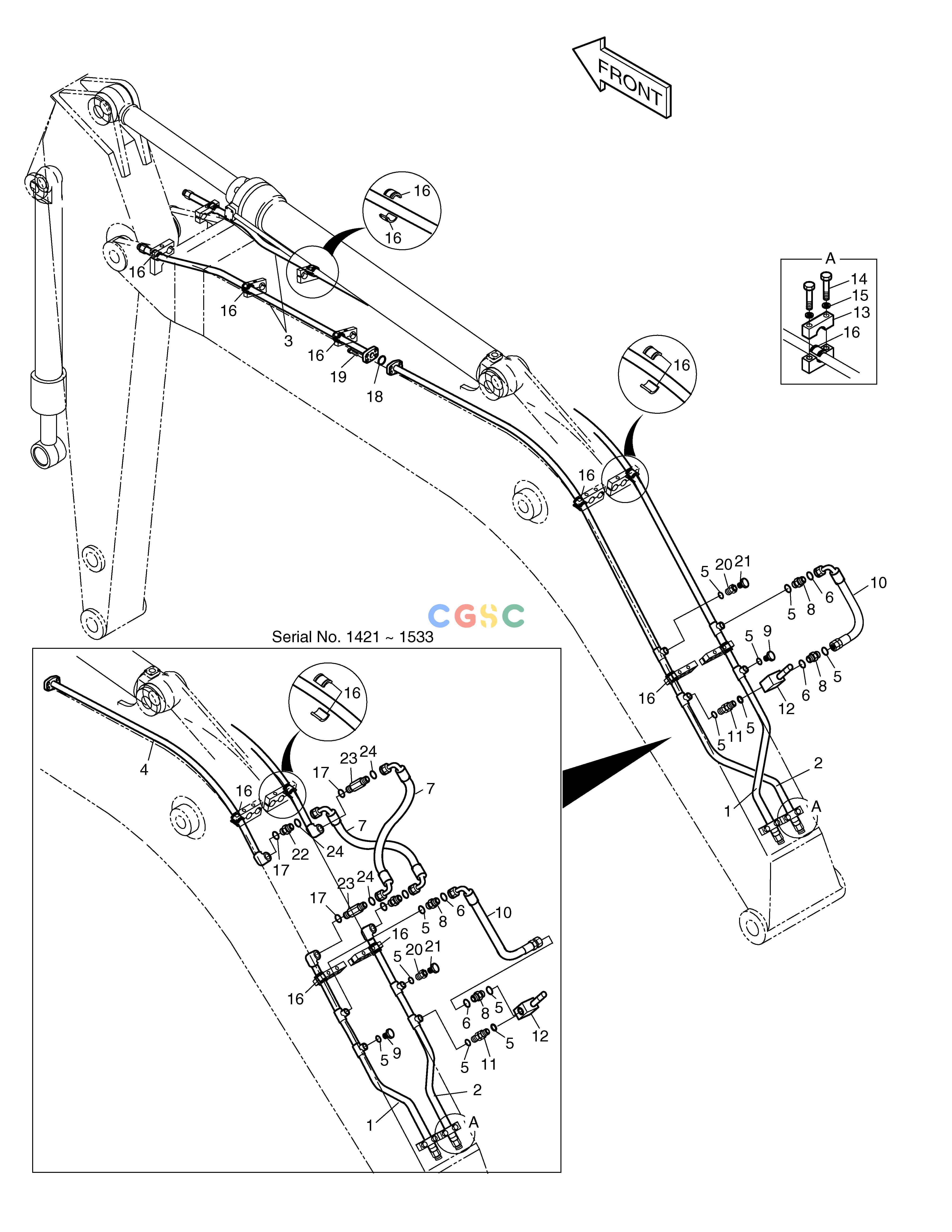

斗山零件查询BOOM PIPING-ONE WAY(JAPAN) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
404 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00587
|
[-] |
BOOM PIPING- ONE WAY
|
|
| 1. |
140-00736
|
[1] |
PIPE
|
|
| 1. |
140-01000
|
[1] |
PIPE
|
|
| 10. |
2184-1197D97
|
[1] |
HOSE PF1-700L
|
|
| 11. |
2181-2818
|
[1] |
ADAPTER
|
|
| 12. |
2420-9627A
|
[1] |
VALVE;RELIEF
|
2420-9627B
|
| 12. |
2420-9627B
|
[1] |
VALVE;RELIEF
|
|
| 13. |
2124-1693
|
[2] |
CLAMP;PIPE
|
|
| 14. |
S0560953
|
[4] |
BOLT M12X1.75X60
|
|
| 15. |
S5102703
|
[4] |
WASHER
|
|
| 16. |
2161-2505
|
[24] |
RUBBER
|
|
| 17. |
S8000381
|
[4] |
O-RING
|
|
| 18. |
2180-1026D23
|
[2] |
O-RING
|
|
| 19. |
S2218661
|
[8] |
BOLT;SOCKET
|
S2218666
|
| 19. |
S2218666
|
[8] |
BOLT;SOCKET M14X2.0X50
|
|
| 2. |
140-00737
|
[1] |
PIPE
|
|
| 2. |
140-01001
|
[1] |
PIPE
|
|
| 20. |
2181-2201D7
|
[1] |
ADAPTER
|
|
| 21. |
2181-2047
|
[1] |
PLUG
|
|
| 22. |
2181-4133D35
|
[2] |
ADAPTER
|
|
| 23. |
DS2232092
|
[2] |
ADAPTER
|
|
| 24. |
2180-1026D37
|
[4] |
O-RING
|
|
| 3. |
140-00686
|
[2] |
PIPE
|
|
| 4. |
140-00738
|
[2] |
PIPE
|
|
| 5. |
S8000291
|
[6] |
O-RING
|
|
| 6. |
S8030161
|
[2] |
O-RING
|
|
| 7. |
DS2023085
|
[2] |
HOSE 1050L
|
|
| 8. |
2181-4133D6
|
[2] |
ADAPTER
|
|
| 9. |
2181-1950D9
|
[1] |
PLUG
|
|
