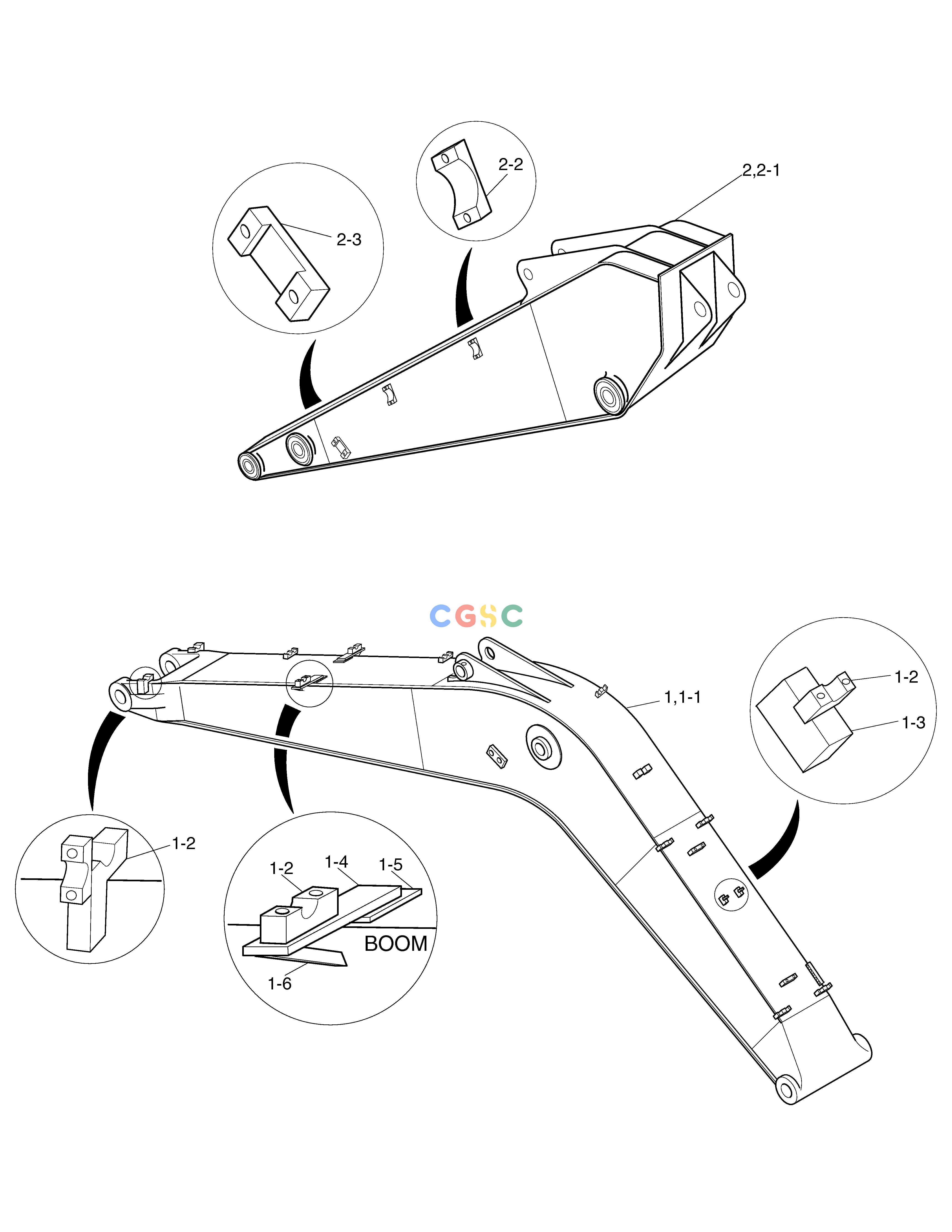

斗山零件查询BOOM-6.245m+ARM-3.1m-BREAKER SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2701-1591
|
[1] |
BOOM;SEAT WELD-BREAKER
|
|
| 1-1. |
2701-1440A
|
[1] |
BOOM SUB ASS'Y-6.245m
|
|
| 1-2. |
2891-1532
|
[10] |
SEAT;SCREW
|
|
| 1-3. |
2891-1537D4
|
[4] |
PLATE
|
|
| 1-4. |
2891-1537D3
|
[4] |
PLATE
|
|
| 1-5. |
2891-1537D1
|
[4] |
PLATE
|
|
| 1-6. |
2891-1534
|
[4] |
PLATE
|
|
| 2. |
2701-1592
|
[1] |
ARM;SEAT WELD-BREAKER
|
2701-1592A
|
| 2. |
2701-1592A
|
[1] |
ARM;SEAT WELD-BREAKER
|
|
| 2-1. |
2701-1444A
|
[1] |
ARM SUB ASS'Y-3.1m
|
2701-1444H
|
| 2-1. |
2701-1444H
|
[1] |
ARM SUB ASS'Y-3.1m
|
|
| 2-2. |
2891-1532
|
[4] |
SEAT;SCREW
|
|
| 2-3. |
2891-1533
|
[2] |
SEAT;SCREW
|
|
