斗山零件查询BOOM PIPING-ROTATION&TILTING SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

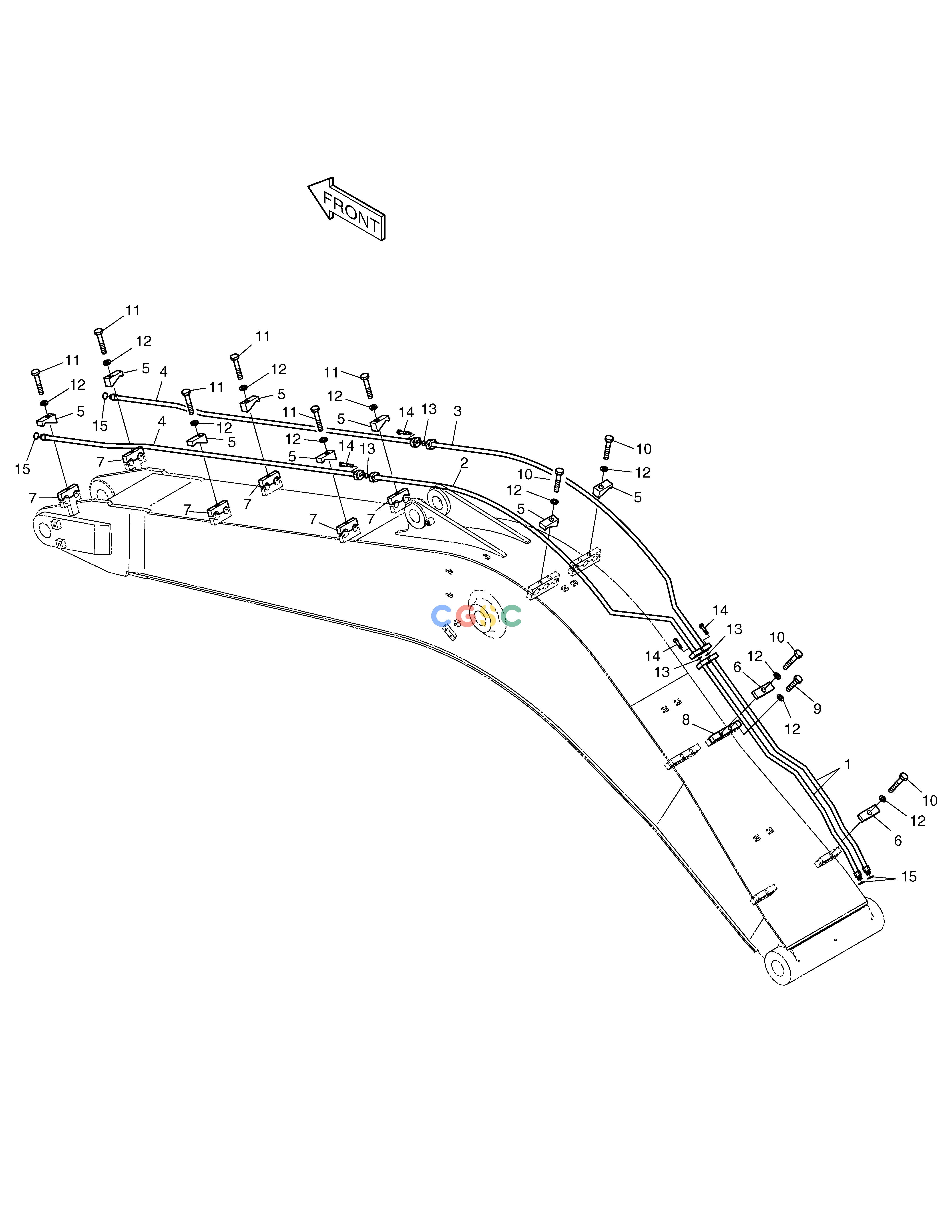

400-00843
|
[-] |
BOOM PIPING
|
|
| 1. |
140-01106
|
[2] |
PIPE;BOOM
|
|
| 10. |
S0566266
|
[4] |
BOLT
|
|
| 11. |
S0566666
|
[6] |
BOLT
|
|
| 12. |
S5102903
|
[11] |
WASHER
|
|
| 13. |
2180-1026D30
|
[4] |
O-RING
|
|
| 14. |
S2209366
|
[16] |
BOLT
|
|
| 15. |
S8030081
|
[4] |
O-RING
|
|
| 2. |
140-01107A
|
[1] |
PIPE;BOOM(L.H)
|
|
| 3. |
140-01108A
|
[1] |
PIPE;BOOM(R.H)
|
|
| 4. |
140-01089A
|
[2] |
PIPE;BOOM
|
|
| 5. |
124-00212
|
[8] |
CLAMP;PIPE
|
|
| 6. |
124-00211A
|
[2] |
CLAMP;PIPE
|
|
| 7. |
124-00235
|
[6] |
CLAMP
|
|
| 8. |
124-00238
|
[1] |
CLAMP
|
|
| 9. |
S0565666
|
[1] |
BOLT
|
|
