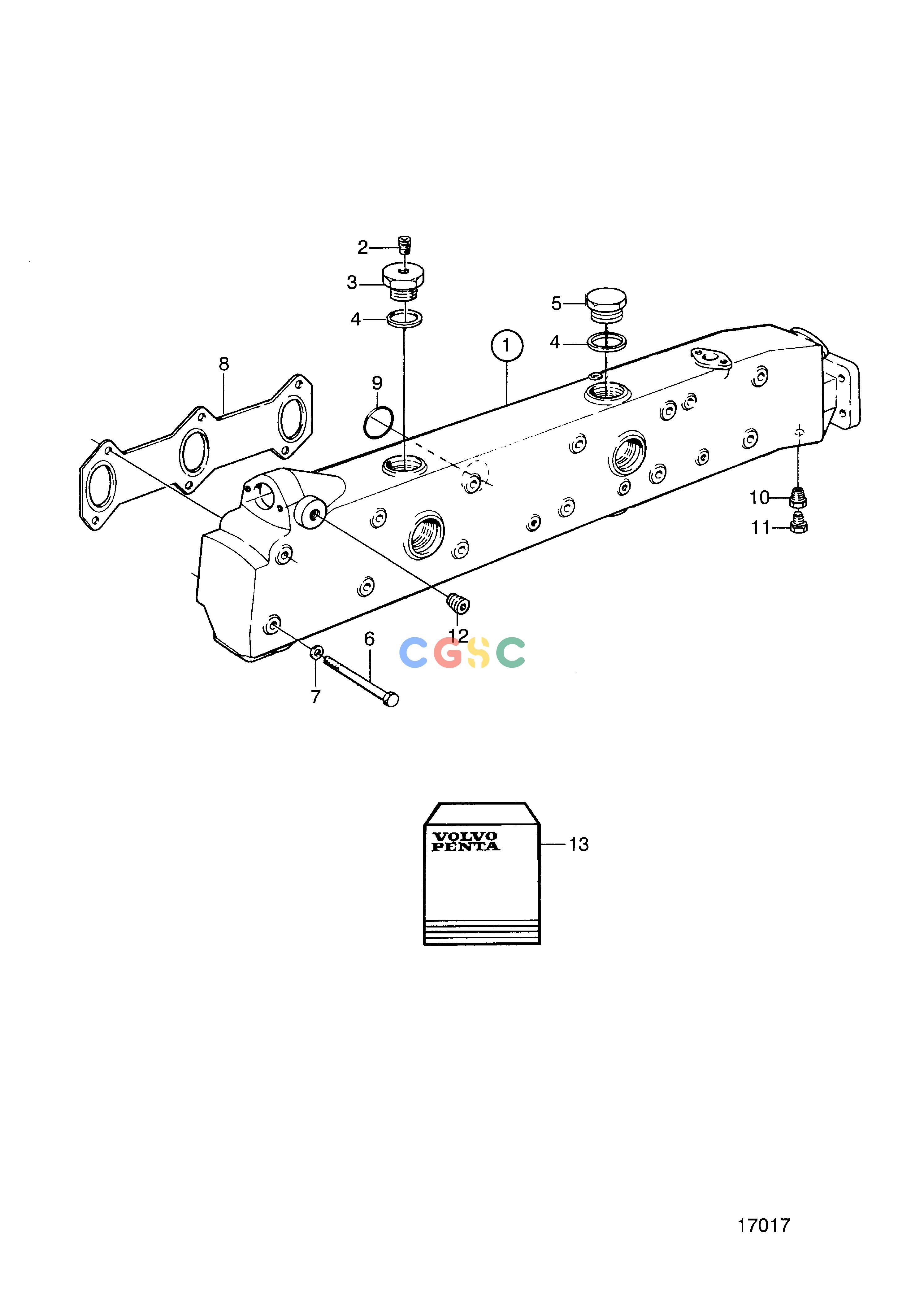

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AIntake and Exhaust SystemExhaust PipeEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827480
|
[1] |
Exhaust pipe
|
(3825357)
|
| 2. |
479977
|
[1] |
Plug
|
|
| 3. |
821335
|
[2] |
Plug
|
|
| 4. |
469328
|
[11] |
Gasket
|
|
| 5. |
467367
|
[9] |
Plug
|
|
| 6. |
970961
|
[12] |
Hexagon screw
|
L=110mm
|
| 7. |
941908
|
[12] |
Spring washer
|
|
| 8. |
847778
|
[2] |
Gasket
|
Included in gasket kit.
|
| 9. |
477059
|
[1] |
O-ring
|
Included in gasket kit.
|
| 10. |
479954
|
[1] |
Nipple
|
|
| 11. |
861551
|
[1] |
Plug
|
|
| 12. |
479977
|
[1] |
Plug
|
|
| 13. |
876625
|
[1] |
Gasket kit
|
See group 99
|
| 13. |
|
|
|
See group 30
|
