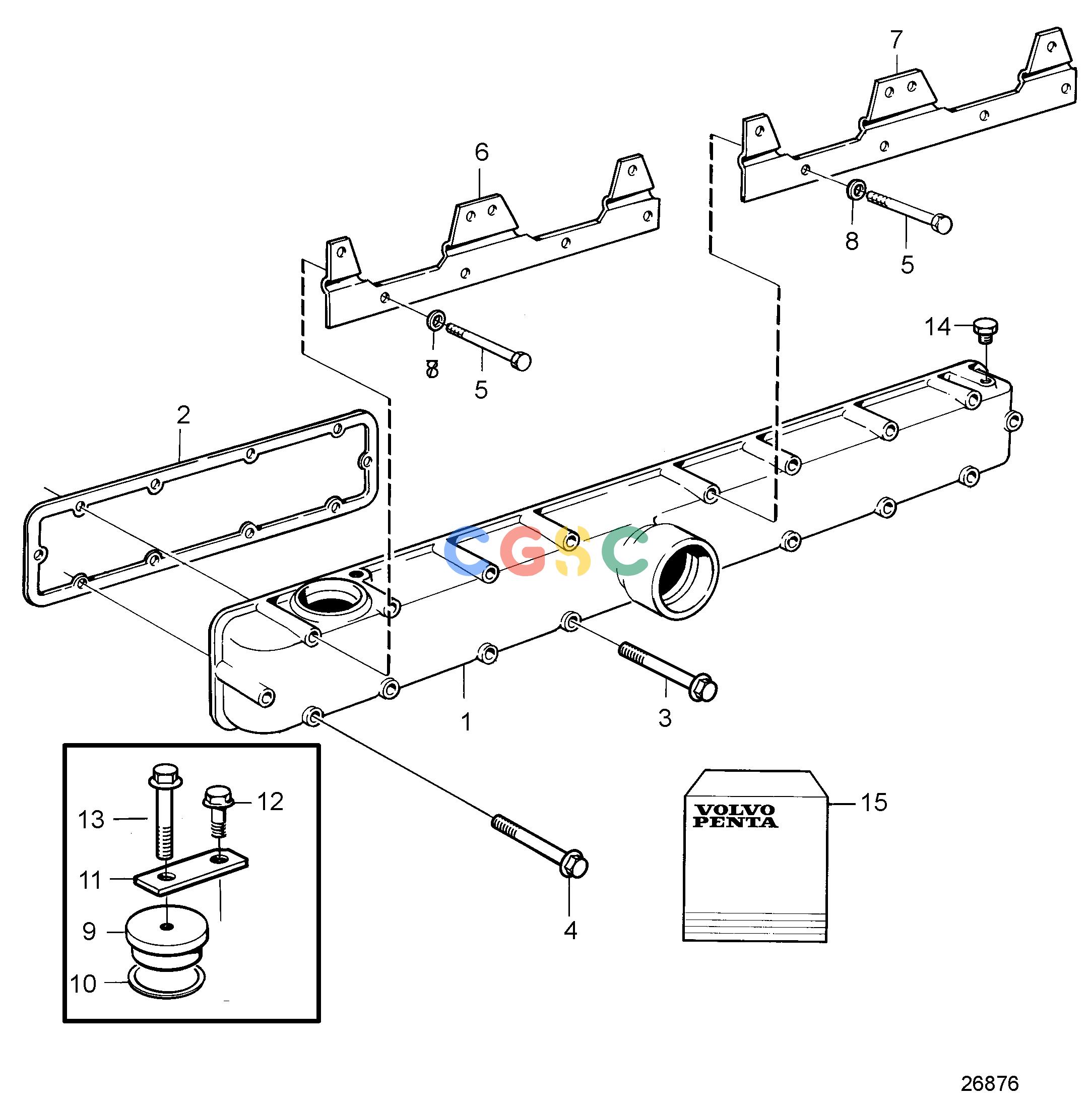

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AIntake and Exhaust SystemInlet Manifold: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
708 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863410
|
[1] |
Inlet manifold
|
|
| 2. |
424612
|
[2] |
Gasket
|
Included in gasket kit.
|
| 3. |
940129
|
[8] |
Hexagon screw
|
L=90mm
|
| 4. |
955306
|
[2] |
Hexagon screw
|
L=80mm
|
| 5. |
100223
|
[8] |
Hexagon screw
|
L=95mm
|
| 6. |
848102
|
[1] |
Attaching plate
|
|
| 7. |
849435
|
[1] |
Attaching plate
|
Alt
|
| 8. |
941907
|
[18] |
Spring washer
|
|
| 9. |
864867
|
[1] |
Plug
|
|
| 10. |
925071
|
[1] |
O-ring
|
Included in gasket kit.
|
| 11. |
865659
|
[1] |
Anchorage
|
|
| 12. |
965175
|
[1] |
Flange screw
|
|
| 13. |
946544
|
[1] |
Flange screw
|
|
| 15. |
876623
|
[1] |
Intake gasket kit
|
See group 99
|
