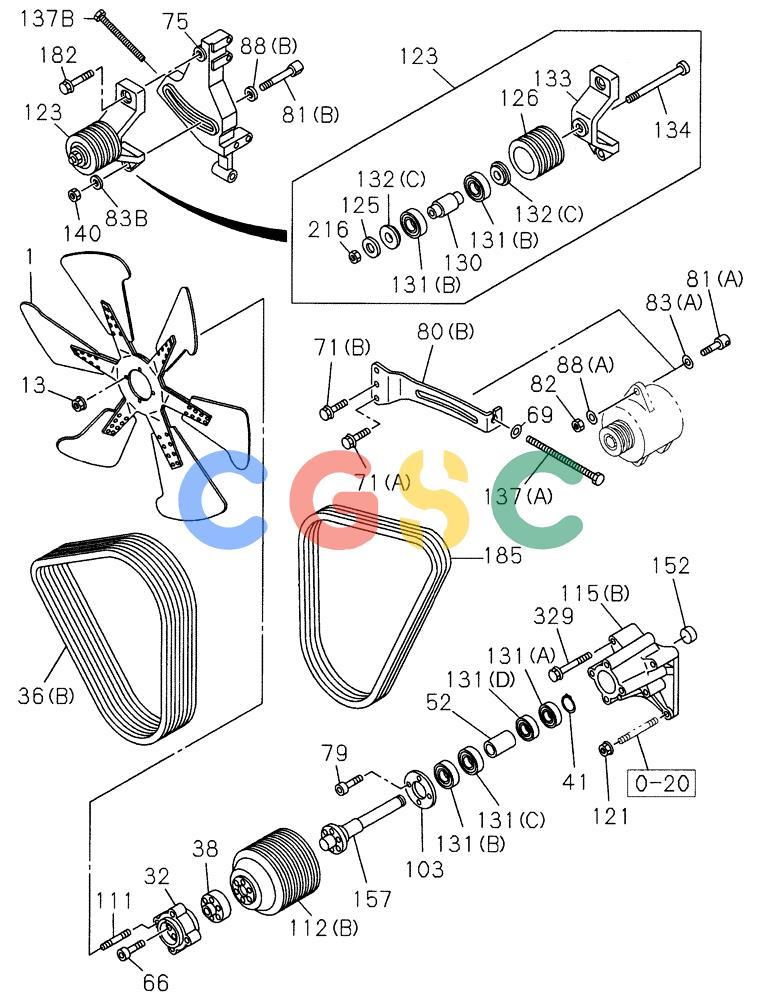

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (02-011-02[01]) - FAN DRIVE - VENTILATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
587 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 443709A1 | [1] | FAN | ISU |
| 13. | 419929A1 | [4] | NUT | ISU Superseded by part number: 87596349 |
| 32. | 437921A1 | [1] | ADAPTER | ISU Superseded by part number: 72109709 |
| 36. | 429316A1 | [1] | SET OF 4 BELTS | ISU |
| 38. | 437922A1 | [1] | SPACER | ISU Superseded by part number: 72216733 |
| 41. | 443674A1 | [1] | RING, SNAP | ISUSNAP RING |
| 52. | 443675A1 | [1] | SPACER | ISU |
| 66. | 426102A1 | [6] | BOLT | ISU Superseded by part number: 87597043 |
| 69. | 289793A1 | [1] | WASHER | ISU |
| 71A. | 419915A1 | [1] | BOLT | ISU |
| 71B. | 426465A1 | [1] | BOLT | ISU |
| 75. | 443676A1 | [1] | SUPPORT | ISU |
| 79. | 443677A1 | [1] | BOLT | ISU Superseded by part number: 87676875 |
| 80. | 443678A1 | [1] | TENSIONER | ISU |
| 81A. | 289201A1 | [1] | ADJUSTMENT SCREW | ISU |
| 81B. | 443679A1 | [1] | STUD | ISU |
| 83A. | 443680A1 | [1] | WASHER | ISU |
| 83B. | 443681A1 | [1] | WASHER | ISU |
| 88A. | 289788A1 | [1] | WASHER | ISU |
| 88B. | 443682A1 | [1] | WASHER | ISU |
| 103. | 443683A1 | [1] | PLATE | ISUFan Superseded by part number: 87647139 |
| 111. | 438181A1 | [4] | STUD | ISU Superseded by part number: 87703515 |
| 112. | 443684A1 | [1] | PULLEY | ISU |
| 115. | 443690A1 | [1] | SUPPORT | ISU Superseded by part number: 87676780 |
| 123. | 443691A1 | [1] | PULLEY | ISU |
| 125. | 443692A1 | [1] | WASHER | ISU |
| 126. | 443693A1 | [1] | PULLEY | ISU |
| 130. | 443694A1 | [1] | SPACER | ISU |
| 131A. | 443695A1 | [1] | BALL BEARING | ISU |
| 131B. | 443696A1 | [1] | BALL BEARING | ISU |
| 131C. | 443697A1 | [1] | BALL BEARING | ISU |
| 131D. | 443698A1 | [1] | BALL BEARING | ISU Superseded by part number: SBA040109033 |
| 132. | 443699A1 | [2] | DUST CAP | ISU |
| 133. | 443700A1 | [1] | SUPPORT | ISU |
| 134. | 443701A1 | [1] | SCREW | ISU |
| 137A. | 87417344 | [1] | BOLT | SUM |
| 137B. | 443702A1 | [1] | BOLT | ISU |
| 140. | 443703A1 | [1] | NUT | ISU Superseded by part number: 84187994 |
| 152. | 362152A1 | [1] | CUP | CAS |
| 157. | 443704A1 | [1] | SHAFT | ISU Superseded by part number: 87553293 |
| 182. | 443705A1 | [2] | BOLT | ISU Superseded by part number: 87596456 |
| 185. | 443706A1 | [1] | BELT | ISU |
| 216. | 443707A1 | [1] | NUT | ISU |
| 329. | 443708A1 | [4] | BOLT | ISU |
