神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-004) - ENGINE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
762 次

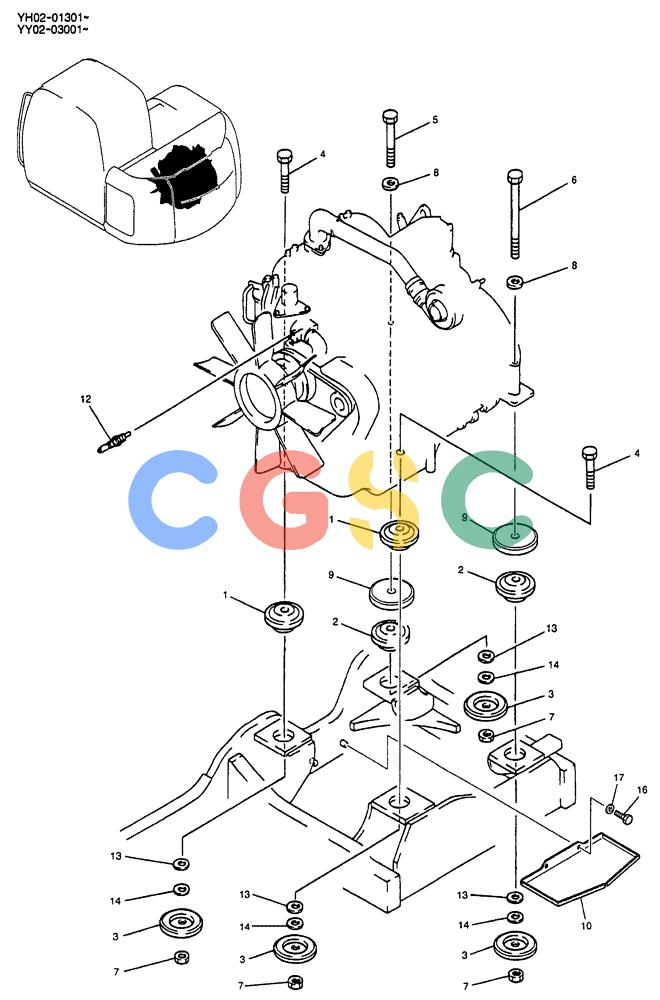

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY02P00008F1 | [1] | ENGINE | KOBInstallation Superseded by part number: YY02P00011F1 |
| 1. | YW02P01002P2 | [2] | ENGINE MOUNT | KOB |
| 2. | YW02P01003P2 | [2] | ENGINE MOUNT | KOB |
| 3. | YW02P01004P1 | [4] | ENGINE MOUNT | KOB |
| 4. | ZS18C18090 | [2] | CAPSCREW,Hex, M18 x 90mm | KOBSCREW M18x2.50x90mm |
| 5. | ZS18C18130 | [1] | SCREW,Hex, M18 x 130mm | KOBM18x2.50x130mm |
| 6. | HS18C18220G1 | [1] | SCREW | KOB |
| 7. | ZN18C18015 | [4] | NUT | KOBM18x2.5mm |
| 8. | ZW16X18000 | [2] | WASHER | KOBID 18 x OD 34 x Th 3.2mm |
| 9. | YV02P01004P1 | [2] | PLATE | KOB |
| 10. | YY02P01004P1 | [1] | BRACKET | KOB |
| 12. | YT52S00001P1 | [1] | SENSOR,50 Degrees C to 120 Degrees C | KOBCoolant Temperature (Thermo) Superseded by part number: YN52S00077F1 |
| 13. | YW02P01005D1 | [1] | SHIM | KOB(1.0) |
| 14. | YW02P01005D2 | [1] | SHIM | KOB(0.6) |
| 16. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 17. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
