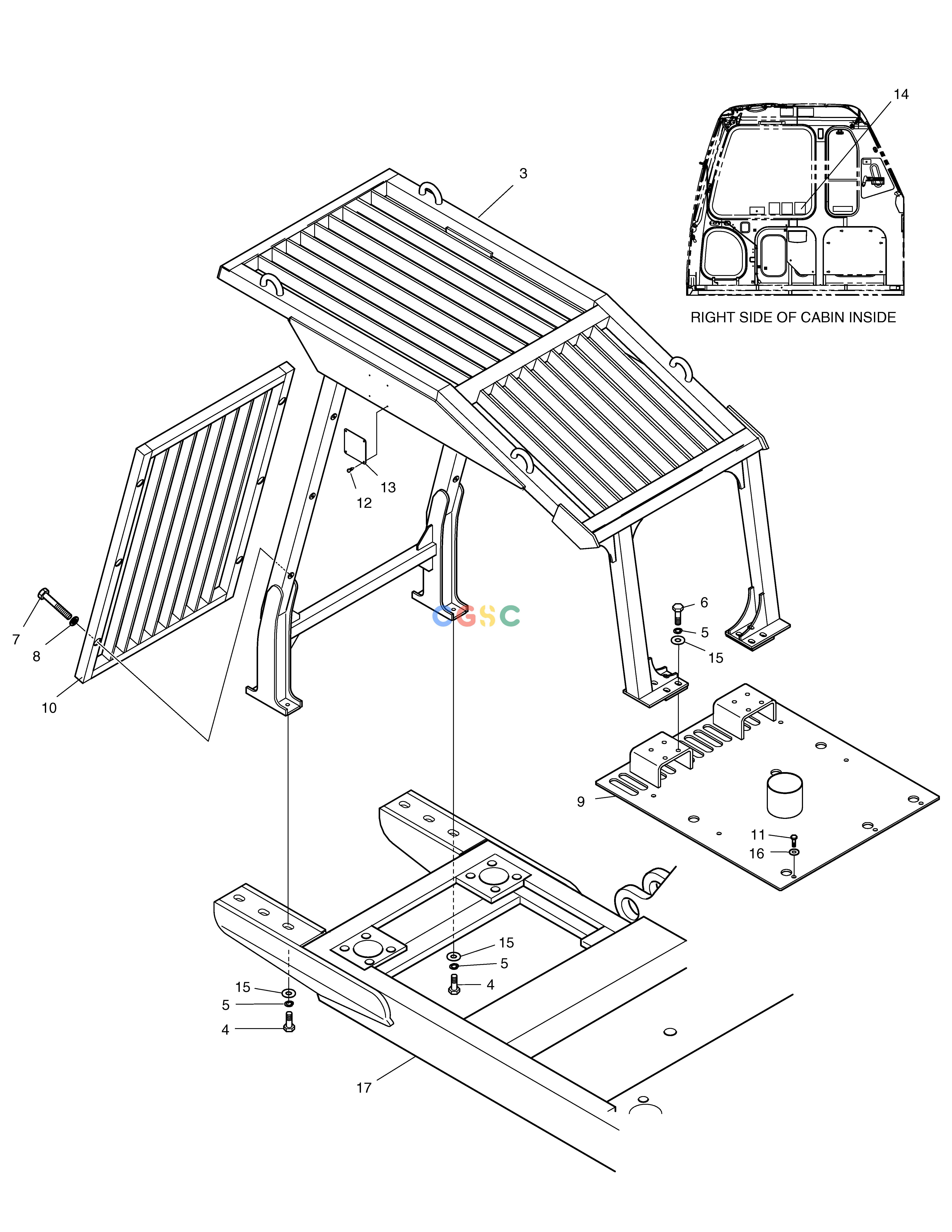

斗山零件查询F.O.P.S GUARD SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
919 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
733-00012
|
[-] |
F.O.P.S GUARD ASS'Y
|
|
| 10. |
2142-1123
|
[1] |
GUARD;FRONT
|
|
| 11. |
S0558153
|
[7] |
BOLT
|
|
| 12. |
2122-1002D1
|
[4] |
RIVET
|
|
| 13. |
2190-3502A
|
[1] |
PLATE;NAME
|
|
| 13. |
2190-3502B
|
[1] |
PLATE;NAME
|
|
| 14. |
190-00003
|
[1] |
PLATE;NAME
|
|
| 15. |
2114-1058D39
|
[14] |
WASHER
|
|
| 16. |
2114-1058D10
|
[7] |
WASHER
|
|
| 17. |
603-00183
|
[1] |
FRAME;BED(FOR FOG)
|
|
| 3. |
2623-1253B
|
[1] |
GUARD;F.O.P.S
|
|
| 4. |
S0521451
|
[6] |
BOLT M16X2.0X40
|
|
| 5. |
S5102901
|
[14] |
. WASHER;SPRING
|
|
| 6. |
S0521661
|
[8] |
BOLT M16X2.0X50
|
|
| 7. |
S0558853
|
[6] |
BOLT M10X1.5X65
|
|
| 8. |
S5102603
|
[6] |
. WASHER
|
|
| 9. |
621-01663
|
[1] |
COVER
|
|
