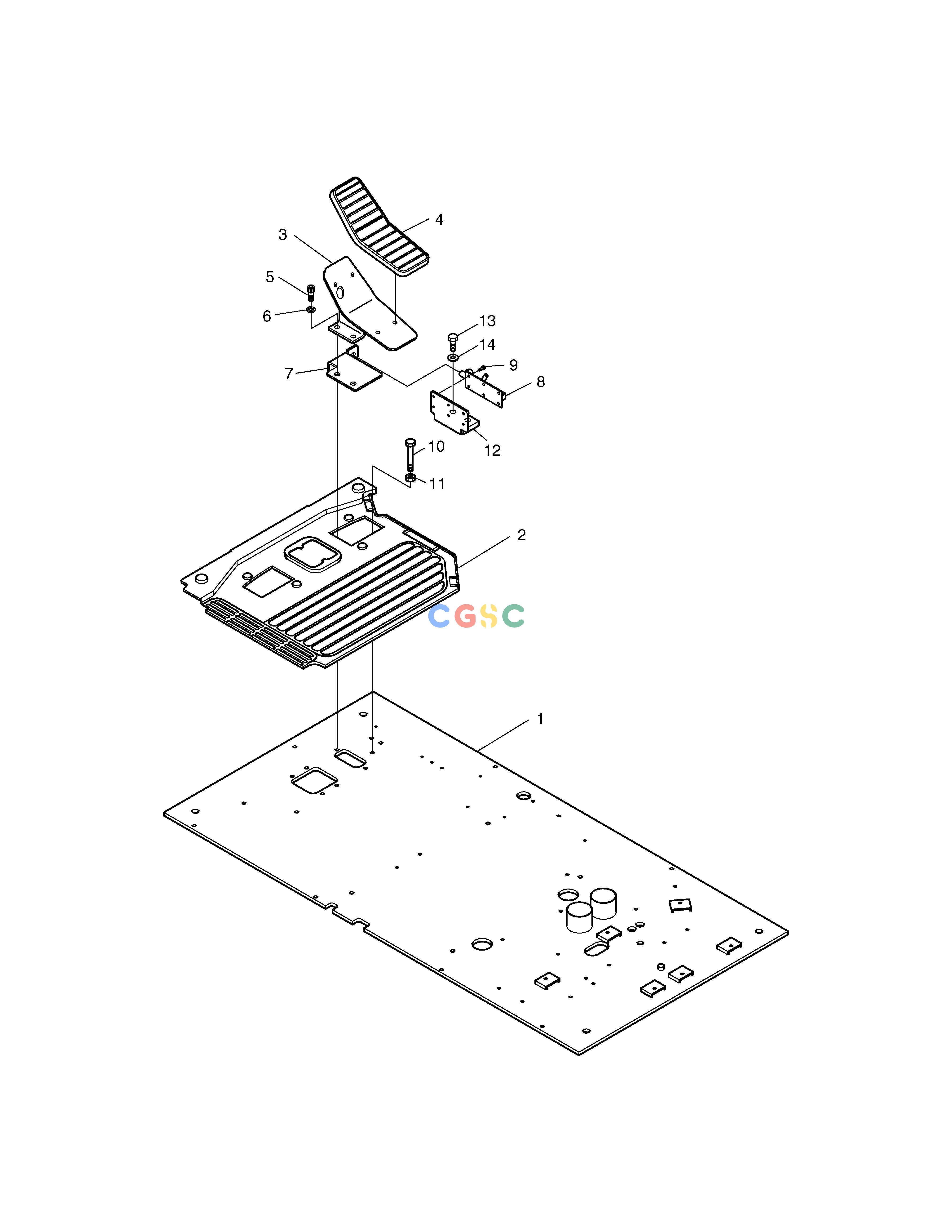

斗山零件查询FLOOR PLATE-PEDAL(BREAKER) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-00948
|
[-] |
FLOOR PLATE ASS'Y-JAPAN
|
|
| 1. |
621-00946
|
[1] |
PLATE;FLOOR
|
|
| 10. |
S0513053
|
[1] |
BOLT M10X1.5X70
|
|
| 11. |
S4010633
|
[1] |
NUT M10X1.5
|
|
| 12. |
195-00939
|
[1] |
BRACKET;PEDAL(R.H)
|
|
| 13. |
2120-2166D1
|
[2] |
BOLT
|
|
| 14. |
2114-1898D1
|
[2] |
WASHER
|
|
| 2. |
161-00127
|
[1] |
MAT;FLOOR
|
|
| 3. |
2197-1817
|
[1] |
BRACKET;PEDAL(R.H)
|
|
| 4. |
2161-2257
|
[1] |
RUBBER;PEDAL
|
|
| 5. |
S2212061
|
[2] |
BOLT;SOCKET M10X1.5X25
|
|
| 6. |
S5110601
|
[2] |
WASHER;SPRING M10
|
|
| 7. |
621-00949
|
[1] |
PLATE;FLOOR
|
|
| 8. |
2125-9059
|
[1] |
SLIDE LATCH
|
|
| 9. |
S2202861
|
[6] |
BOLT;SOCKET M5X0.8X10
|
|
